Chillers ULTIMA COMPACT
Chillers
Installation & Maintenance : 903-129 IM E 10/04/
C
11

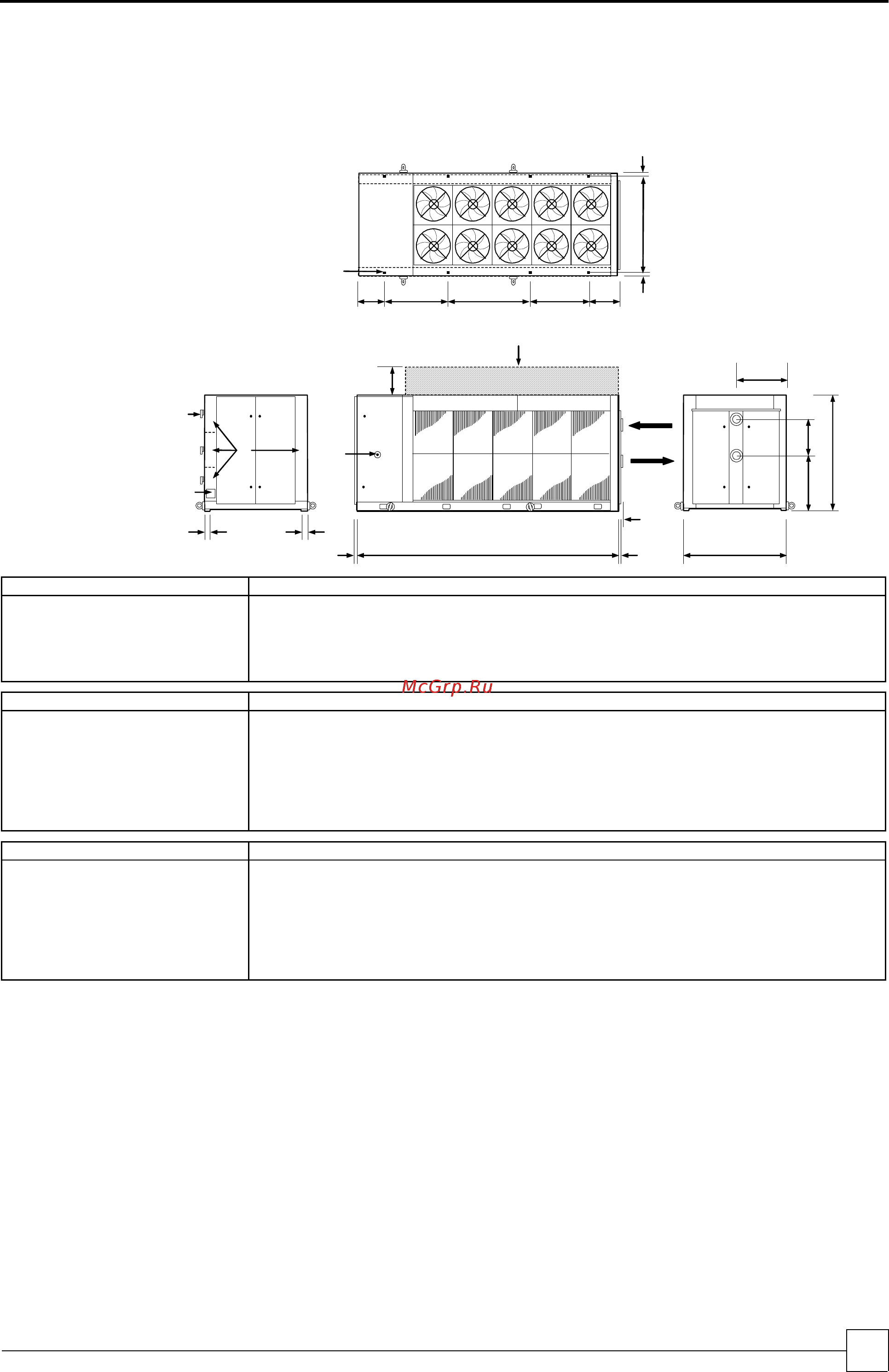

Installation Data
DIMENSIONS
DOUBLE ROW FANS - /2
UCC110 - UCC450
(Except UCC125 &
UCC150)
JFHG
L 25 25
4
K
1 Electric Control Panels
2 Mains Electric Isolators
3 Mains Cable Entry
4 20mm Ø Mounting Holes
5 Optional Plenum Extension
6 Water Flange Connections:
UCC160-250 DN80 PN16
UCC275-450 DN100 PN16
7 Emergency Stop
A
B
50 50
2
3
1
25 25
7
500
5
6
E
20
C
D 630
Model D ABCDEFG H JKL
UCC110D - UCC160D mm 2365 1850 2100 955 925 275 1600 (1) - 490 1800
UCC180D - UCC250D mm 3170 1850 2100 955 925 480 1100 1100 (2) 490 1800
UCC275D - UCC300D mm 4650 2200 2180 975 1100 350 1750 1925 (2) 625 2150
UCC330D - UCC360D mm 5500 2200 2180 975 1100 350 1350 1350 1925 525 2150
UCC400D - UCC450D mm 6350 2200 2180 975 1100 350 1700 1925 1925 450 2150
Model DQ ABCDEFG H JKL
UCC110DQ - UCC130DQ mm 2365 1850 2100 955 925 275 1600 (1) - 490 1800
UCC160DQ - UCC200DQ mm 3170 1850 2100 955 925 480 1100 1100 - 490 1800
UCC225DQ - UCC250DQ mm 3975 1850 2100 955 925 480 1500 1500 (2) 495 1800
UCC275DQ mm 4650 2200 2180 975 1100 350 1750 1925 (2) 625 2150
UCC300DQ - UCC330DQ mm 5500 2200 2180 975 1100 350 1350 1350 1925 525 2150
UCC360DQ - UCC400DQ mm 6350 2200 2180 975 1100 350 1700 1925 1925 450 2150
UCC450DQ mm 7200 2200 2180 975 1100 350 1700 2700 2000 450 2150
Model DSQ ABCDEFG H JKL
UCC110DSQ mm 2365 1850 2100 955 925 275 1600 (1) - 490 1800
UCC130DSQ - UCC200DSQ mm 3170 1850 2100 955 925 480 1100 1100 (2) 490 1800
UCC225DSQ - UCC250DSQ mm 3975 1850 2100 955 925 480 1500 1500 (2) 495 1800
UCC275DSQ mm 5500 2200 2180 975 1100 350 1350 1350 1925 525 2150
UCC300DSQ mm 6350 2200 2180 975 1100 350 1700 1925 1925 450 2150
UCC330DSQ - UCC360DSQ mm 7200 2200 2180 975 1100 350 1700 2700 2000 450 2150
UCC400DSQ - UCC450DSQ mm 8050 2200 2180 975 1100 350 1700 2800 2725 525 2150
(1) Have only 4 fixing and 4 point loadings.
(2) Have only 6 fixing and 6 point loadings.
