ULTIMA COMPACT Chillers
Chillers
12
Installation & Maintenance : 903-129 IM E 10/04/C
Installation Data

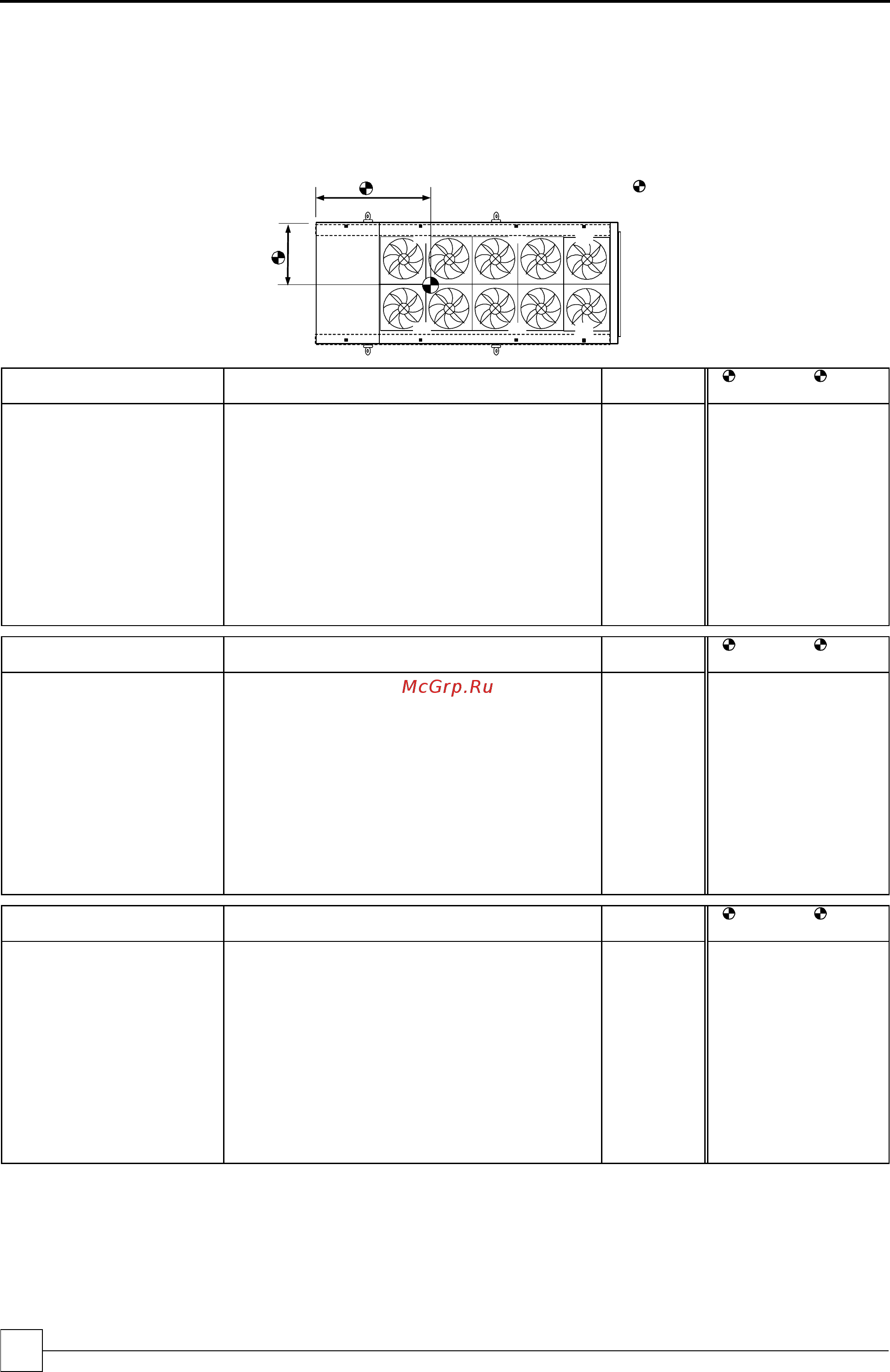

POINT LOADINGS, WEIGHTS & CENTRE OF GRAVITY (C OF G)
DOUBLE ROW FANS - /2
UCC110 - UCC450 (Except UCC125 & UCC150)
P1 P3 P5
P2 P4 P6
P7
P8
1
2
= C of G
Model D P1 P2 P3 P4 P5 P6 P7 P8
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC110D-4/2 kg 380 380 (1) (1) (1) (1) 270 270 1300 915 825
UCC130D-4/2 kg 405 405 (1) (1) (1) (1) 275 275 1360 915 810
UCC160D-4/2 kg 475 475 (1) (1) (1) (1) 240 240 1430 925 810
UCC180D-6/2 kg 630 560 140 125 (2) (2) 140 150 1745 890 1020
UCC200D-6/2 kg 640 570 145 130 (2) (2) 140 150 1775 890 1030
UCC225D-6/2 kg 660 660 155 155 (2) (2) 155 160 1945 925 1015
UCC250D-6/2 kg 665 665 155 155 (2) (2) 155 160 1955 925 1010
UCC275D-8/2 kg 705 705 400 400 (2) (2) 235 235 2680 1100 1515
UCC300D-8/2 kg 735 735 420 420 (2) (2) 255 255 2820 1100 1535
UCC330D-10/2 kg 715 715 405 405 200 200 190 190 3020 1100 1650
UCC360D-10/2 kg 730 730 420 420 240 240 230 230 3240 1100 1755
UCC400D-12/2 kg 770 770 480 480 290 290 280 280 3640 1100 2230
UCC450D-12/2 kg 805 805 500 500 300 300 280 280 3770 1100 2200
Model DQ P1 P2 P3 P4 P5 P6 P7 P8
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC110DQ-4/2 kg 380 380 (1) (1) (1) (1) 270 270 1300 915 825
UCC130DQ-4/2 kg 405 405 (1) (1) (1) (1) 275 275 1360 915 810
UCC160DQ-6/2 kg 570 570 115 115 (2) (2) 115 175 1660 955 1015
UCC180DQ-6/2 kg 645 570 130 120 (2) (2) 130 180 1775 910 1010
UCC200DQ-6/2 kg 655 580 135 125 (2) (2) 135 185 1815 910 1025
UCC225DQ-8/2 kg 700 700 165 165 (2) (2) 165 220 2115 950 1260
UCC250DQ-8/2 kg 710 710 165 165 (2) (2) 220 220 2190 925 1310
UCC275DQ-8/2 kg 735 735 395 395 (2) (2) 235 235 2730 1100 1490
UCC300DQ-10/2 kg 700 700 375 375 215 215 205 205 2990 1100 1710
UCC330DQ-10/2 kg 715 715 405 405 250 250 240 240 3220 1100 1800
UCC360DQ-12/2 kg 735 735 440 440 270 270 260 260 3410 1100 2210
UCC400DQ-12/2 kg 770 770 485 485 300 300 290 290 3690 1100 2260
UCC450DQ-14/2 kg 810 810 535 535 360 360 340 340 4090 1100 2635
Model DSQ P1 P2 P3 P4 P5 P6 P7 P8
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC110DSQ-4/2 kg 380 380 (1) (1) (1) (1) 270 270 1300 915 825
UCC130DSQ-6/2 kg 430 430 280 280 (2) (2) 205 205 1830 915 1055
UCC160DSQ-6/2 kg 570 570 115 115 (2) (2) 115 175 1660 955 1015
UCC180DSQ-6/2 kg 645 570 130 120 (2) (2) 130 180 1775 910 1010
UCC200DSQ-6/2 kg 655 580 135 125 (2) (2) 135 185 1815 910 1025
UCC225DSQ-8/2 kg 700 700 165 165 (2) (2) 165 220 2115 950 1260
UCC250DSQ-8/2 kg 710 710 165 165 (2) (2) 220 220 2190 925 1310
UCC275DSQ-10/2 kg 680 680 350 350 255 255 245 245 3060 1100 1850
UCC300DSQ-12/2 kg 715 715 390 390 280 280 270 270 3310 1100 2270
UCC330DSQ-14/2 kg 740 740 445 445 320 320 310 310 3630 1100 2635
UCC360DSQ-14/2 kg 780 780 490 490 340 340 330 330 3880 1100 2640
UCC400DSQ-16/2 kg 810 810 525 525 460 460 350 350 4290 1100 2895
UCC450DSQ-16/2 kg 840 840 545 545 470 470 350 350 4410 1100 2860
(1) Have only 4 fixing and 4 point loadings.
(2) Have only 6 fixing and 6 point loadings.
(3) Calculation based on standard unit, for units fitted with pump, tank and expansion vessel options, please contact Airedale.
