ULTIMA COMPACT Chillers
Chillers
36
Installation & Maintenance : 903-129 IM E 10/04/C
Commissioning Data
WATERSIDE PRESSURE DROPS
(1)
CAUTION
Constant water flow MUST be maintained. Variable water volume is
NOT recommended and may invalidate warranty.

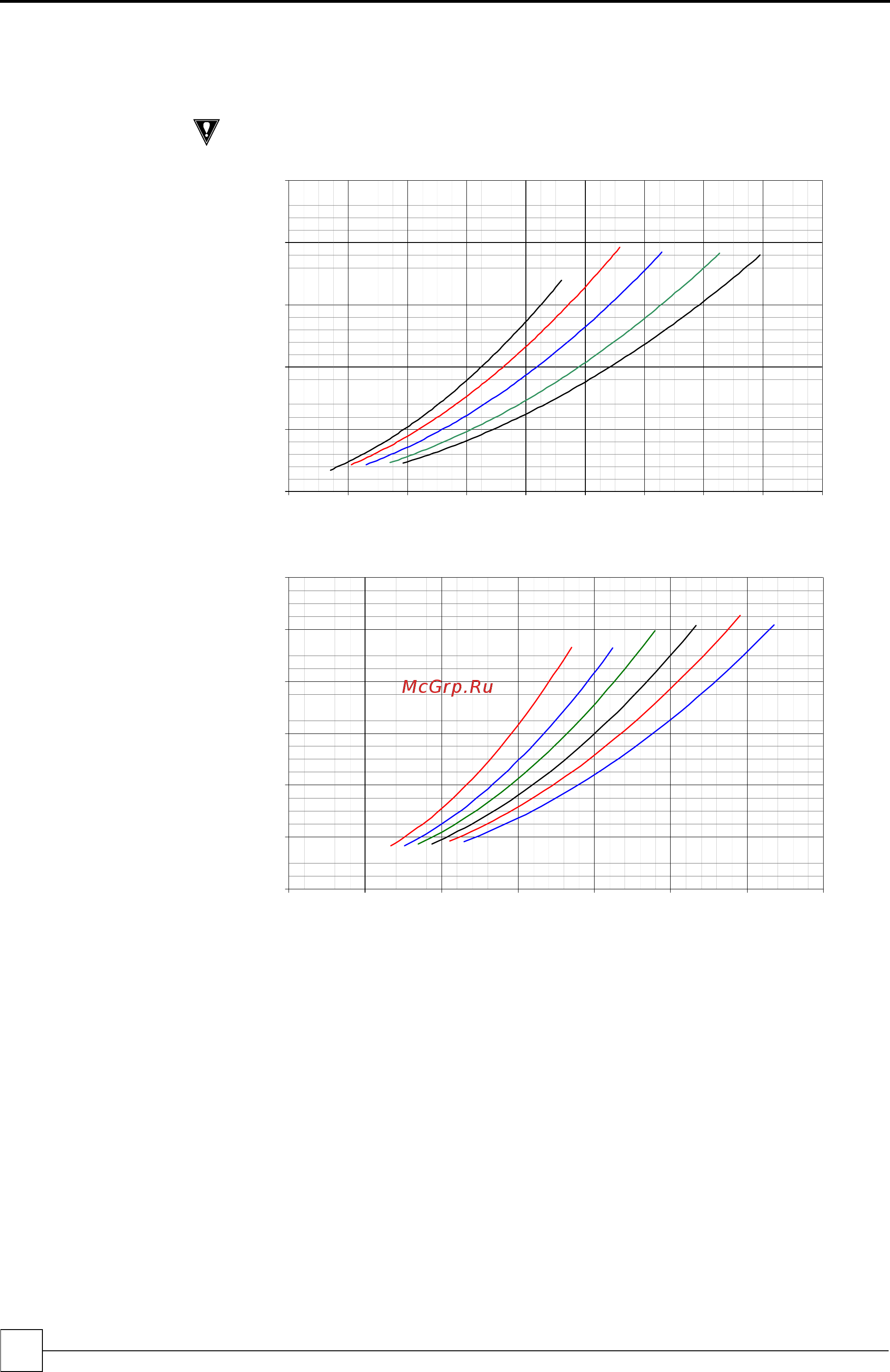

UCC160 - UCC250
CHILLER PRESSURE DROP
(
kPa
)
(2)
0
25
50
75
100
125
2 4 6 8 10 12 14 16 18 20
UCC160
UCC250UCC225UCC200UCC180
WATERFLOW (l/s)
UCC240 - UCC450
CHILLER PRESSURE DROP
(
kPa
)
(2)
0
20
40
60
80
100
120
0 5 10 15 20 25 30 35
UCC275
UCC300
UCC330 UCC360
UCC400
UCC450
WATERFLOW (l/s)
(1) For glycol solutions, please refer to Glycol Data.
(2) Chiller pressure drop refers to standard unit without optional pumps and/or pipework.
