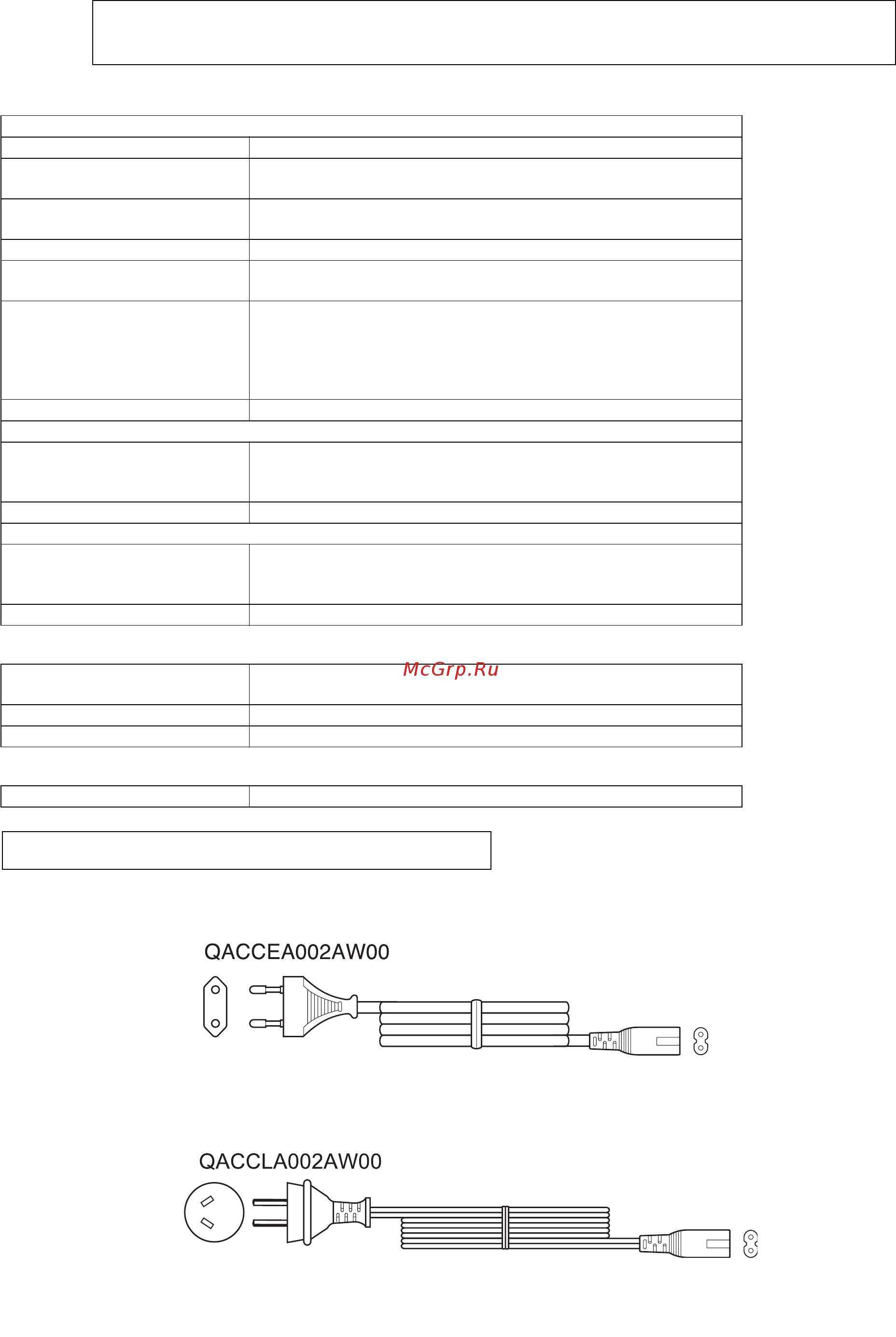

![Sharp ANPR1000H [3/109] Chapter 1 general description](/views2/1410345/page3/bg3.png)
AN-PR1000H/AN-PR1000HR
CHAPTER 1: GENERAL DESCRIPTION
[1] Specifications
•Main unit
• Subwoofer
• Remote control
Amplifier section
Power source AC 220 V - 240 V, 50 Hz
Power consumption Power on: 80 W
Power stand-by: 0.6 W
Amplification system Front speaker: Pulse width modulation
Subwoofer: Pulse width modulation
Frequency range FM: 87.5 - 108 MHz
Output power Front speaker: RMS: 150W (75W + 75W) (10% T.H.D)
Subwoofer: RMS: 150W (75W + 75W) (10% T.H.D)
Audio input terminals Optical digital input (DIGITAL 1/2): Square type x 2
Coaxial digital input (DIGITAL 3): RCA type x 1
Analog input (LINE 1): RCA type x 1 pair (L/R)
Analog input (LINE 2): RCA type x 1 pair (L/R)
Analog input (LINE 3): RCA type x 1 pair (L/R)
Audio output terminal Subwoofer Pre Out: 10 kohms
Front speaker section
Type 2-way type speaker system (Magnetic shield)
5 cm (2") Tweeter x 1
10 cm (4") Woofer x 1
Impedance 4 ohms
General
Dimensions Width: 1230 mm (48-7/16")
Height: 476 mm (18-3/4")
Depth: 397 mm (15-5/8")
Weight 46.5 kg (102.3 lbs.)
Type Bass reflex system
16 cm (6-1/2") Woofer x 1
Maximum input power 150 W
Impedance 4 ohms
Power source DC 3V [“AAA” size (UM-4, R03, HP-16 or similar) battery x 2]
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE
OPERATION MANUAL.
Specifications for this model are subject to change without prior notice.
1 – 1
[2] AC Power Supply Cord
