AN-PR1000H/AN-PR1000HR
1 – 3

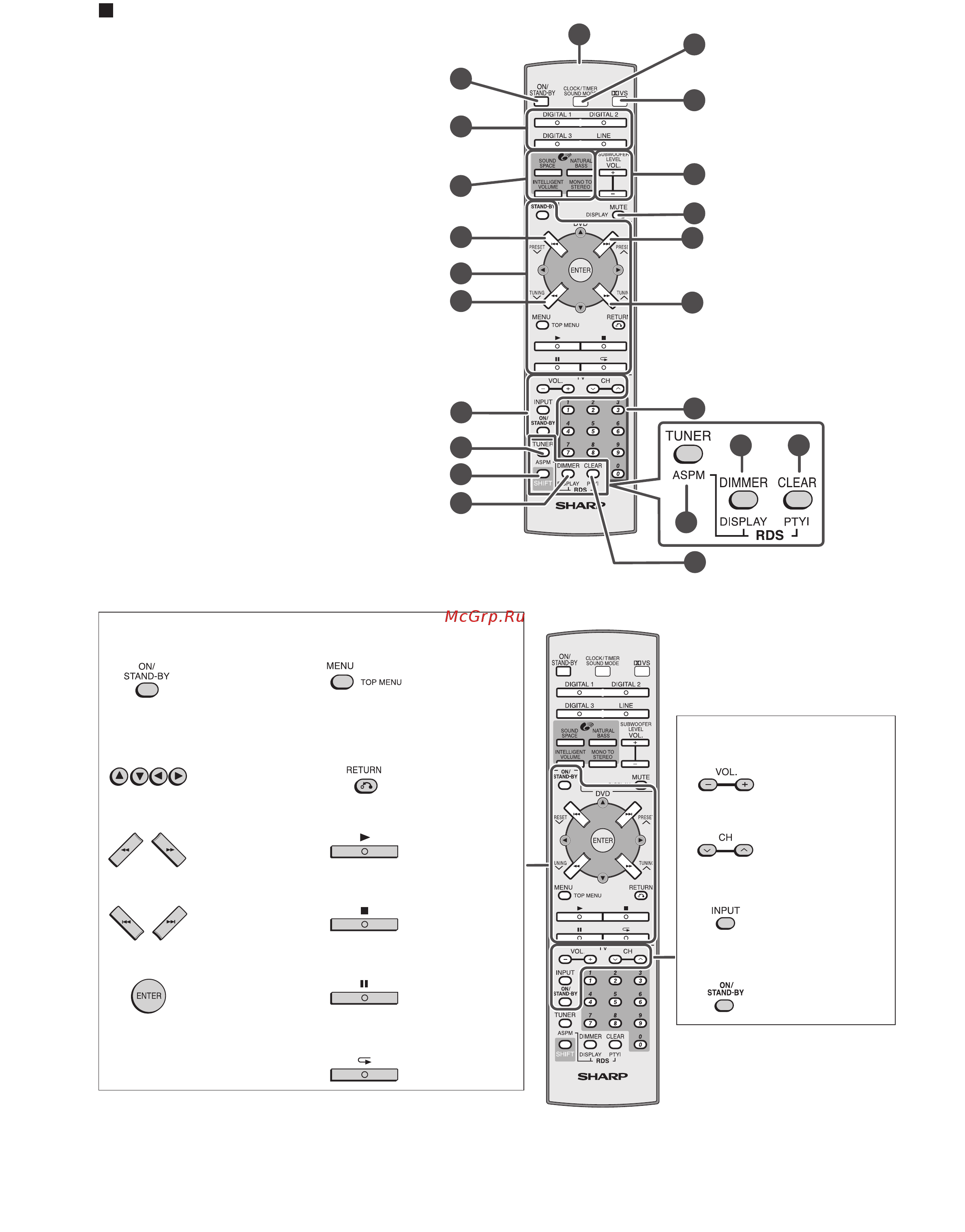

Remote control
2
1
12
15
5
7
16
17
13
14
3
4
6
10
9
8
11
19
18
21
22
20
1. Remote Control Transmitter
2. ON/STAND-BY button
3. Input Select Buttons
4. Audistry Sound Mode Buttons
5. Tuner Preset Down Button
6. DVD Player Operation Buttons
7. Tuning Down Button
8. TV Operation Buttons
9. Tuner Button
10. Shift Button
11. Dimmer Button
12. Preset Sound Mode / Clock / Timer Button
13. Dolby Virtual Speaker Button
14. Volume Up and Down/
Subwoofer Level Up and Down Buttons
15. Mute/Display Button
16. Tuner Preset Up Button
17. Tuning Up Button
18. Direct Number Buttons
19. Clear Button
20. RDS ASPM Button
21. RDS Display Button
22. RDS PTYI Button
DVD Player Operation Buttons
ON/STAND-BY button Menu/Top Menu Button
Sets the DVD power to
"ON" or "STAND- BY".
Press to display the
menu.
TV Operation Buttons
Cursor Buttons Return Button Volume Up and Down Buttons
Press the button to
select menus and items.
Press the button to
return to the previous
step.
Turn down/up the TV
volume.
Review/Cue Buttons Play Button Channel Up and Down Buttons
Press to go backward
or forward (search).
Play back the DVD
player.
Switch down/up the TV
channels.
Chapter (Track) Skip Down/Up Buttons Stop Button Input Select Button (TV/VCR)
Skip down/up the DVD
chapters (tracks).
Stops the DVD player.
Press the button to switch
the input source.
Enter Button Pause Button ON/STAND-BY button
Press to set a menu or
an item.
Press to pause. Sets the TV power to
"ON" or "STAND-BY".
Repeat Play Button
Press to repeat
playback.
