RQT6797
7
This unit equips three types of video jacks as follows:
Plug the power cable into the AC IN when all connections are complete,
and then plug this unit to the wall outlet.
Caution
Do not use other AC power cables than the one provided. Otherwise it
may result in causing fire or an electrical shock.

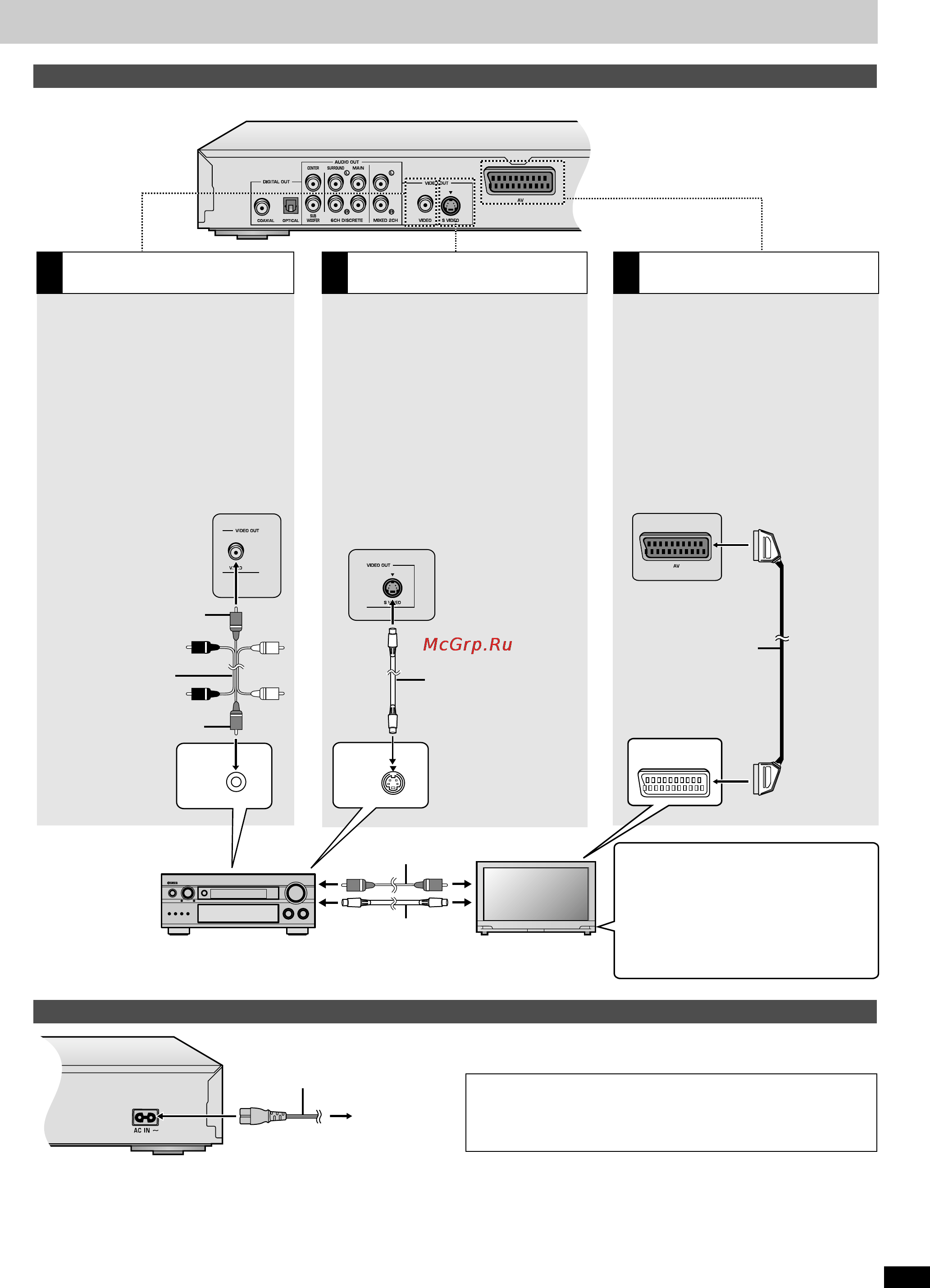

Video connection
Connecting the power cable
D E F
VCR
DVD
S VIDEO
VIDEO
DVD
Television
Audio/video cable
(included)
yellow
S video cable
21-pin SCART cable
yellow
Video pin cable
S video cable
Amplifier
VIDEO jack S VIDEO jack AV (SCART) jack
This jack transmits conventional composite
video signal. Connect this jack to your AV
amplifier so that you can switch the both
audio and video inputs at once.
This jack transmits color and luminance
separately and achieves high quality color
reproduction. Connect this jack to your
television using a commercially available S-
Video cable. If your AV amplifier is equipped
with S VIDEO input and output jacks,
connect to the AV amplifier so that you can
switch both audio and video inputs at once.
This SCART jack can output RGB
component signals and provides the best
quality picture. Connect this jack to your
television.
≥Change “Video—AV Output” (➡ page 18).
[Note]
Do not connect this unit to a television
through a video cassette recorder.
If you do so, the picture may not be played
back properly due to the copyright protection
technology incorporated in this unit.
Power cable
(included)
To the wall
outlet
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC MAINS LEAD ON
PAGE 2 BEFORE CONNECTION.
