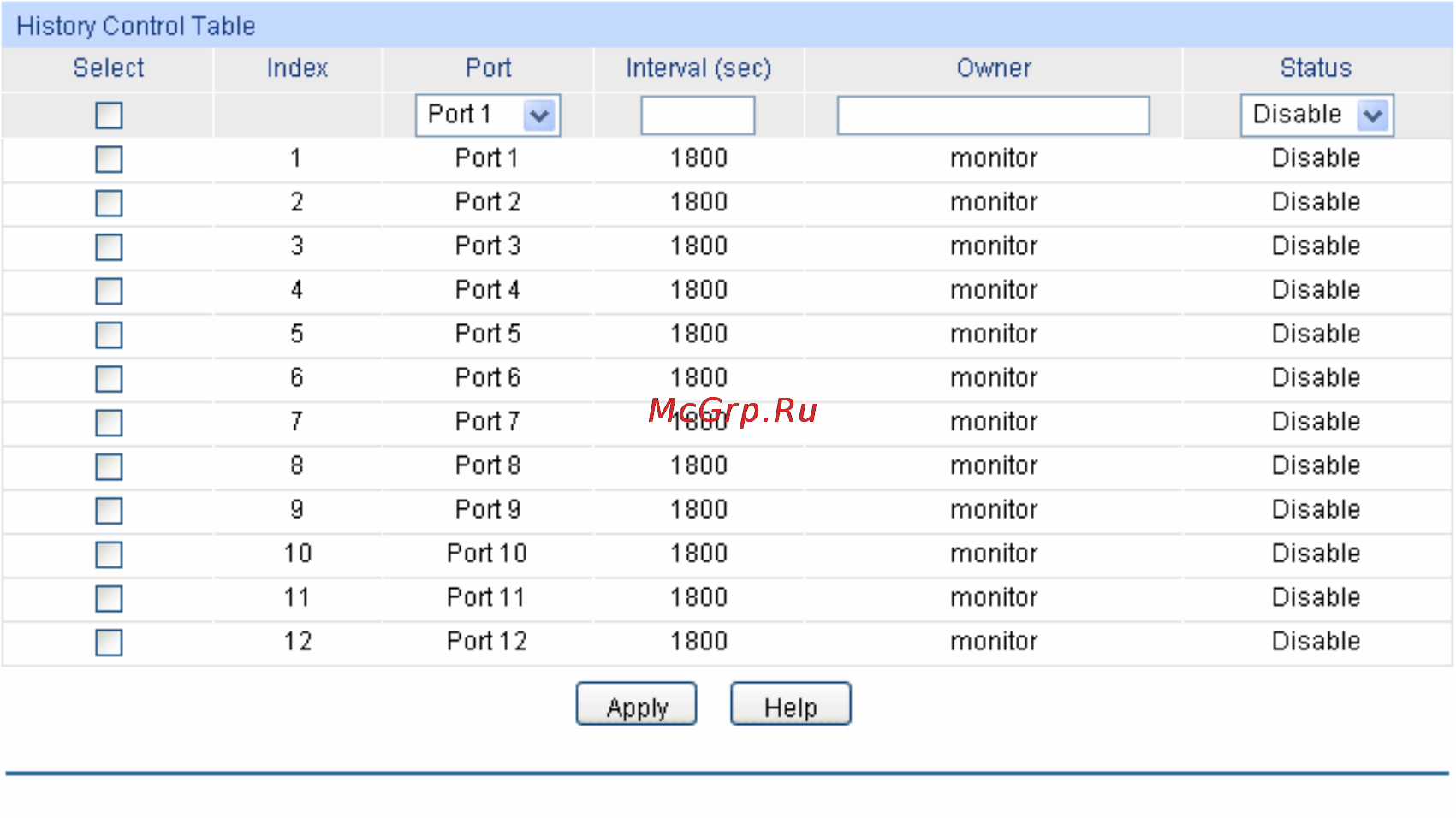

Figure 12-9 History Control

The following entries are displayed on this screen:

 History Control Table

Select: Select the desired entry for configuration.

Index: Displays the index number of the entry.

Port: Specify the port from which the history samples were taken.

Interval: Specify the interval to take samplings from the port.

Owner: Enter the name of the device or user that defined the entry.

Status: Select Enable/Disable the corresponding sampling entry.

12.3.2 Event Config

On this page, you can configure the RMON events.

Choose the menu SNMP→RMON→Event Config to load the following page.

184
