Tp-Link TL-SG5412F [205/257] The following entries are displayed on this screen

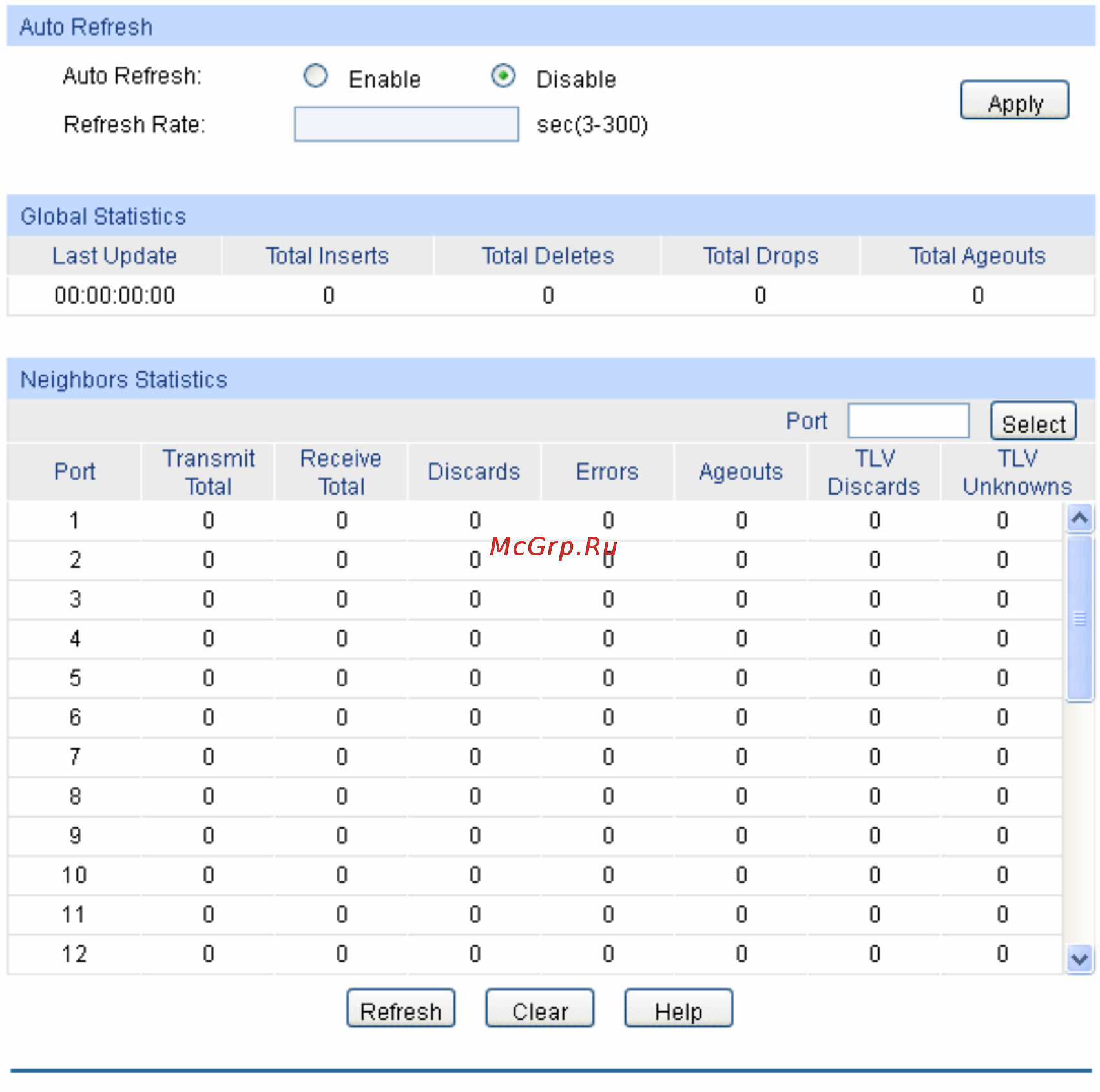

Figure 13-5 Device Statistics

The following entries are displayed on this screen:

 Auto Refresh

Auto Refresh: Enable/Disable the auto refresh function.

Refresh Rate: Specify the auto refresh rate.

 Global Statistics

Last Update: Displays latest update time of the statistics.

Total Inserts: Displays the number of neighbors inserted till last update time.

Total Deletes: Displays the number of neighbors deleted by local device.

Total Drops: Displays the number of neighbors dropped by local device.

Total Ageouts: Displays the number of overtime neighbors in local device.
