Tp-Link TL-SG5412F [71/257] Application example for protocol vlan

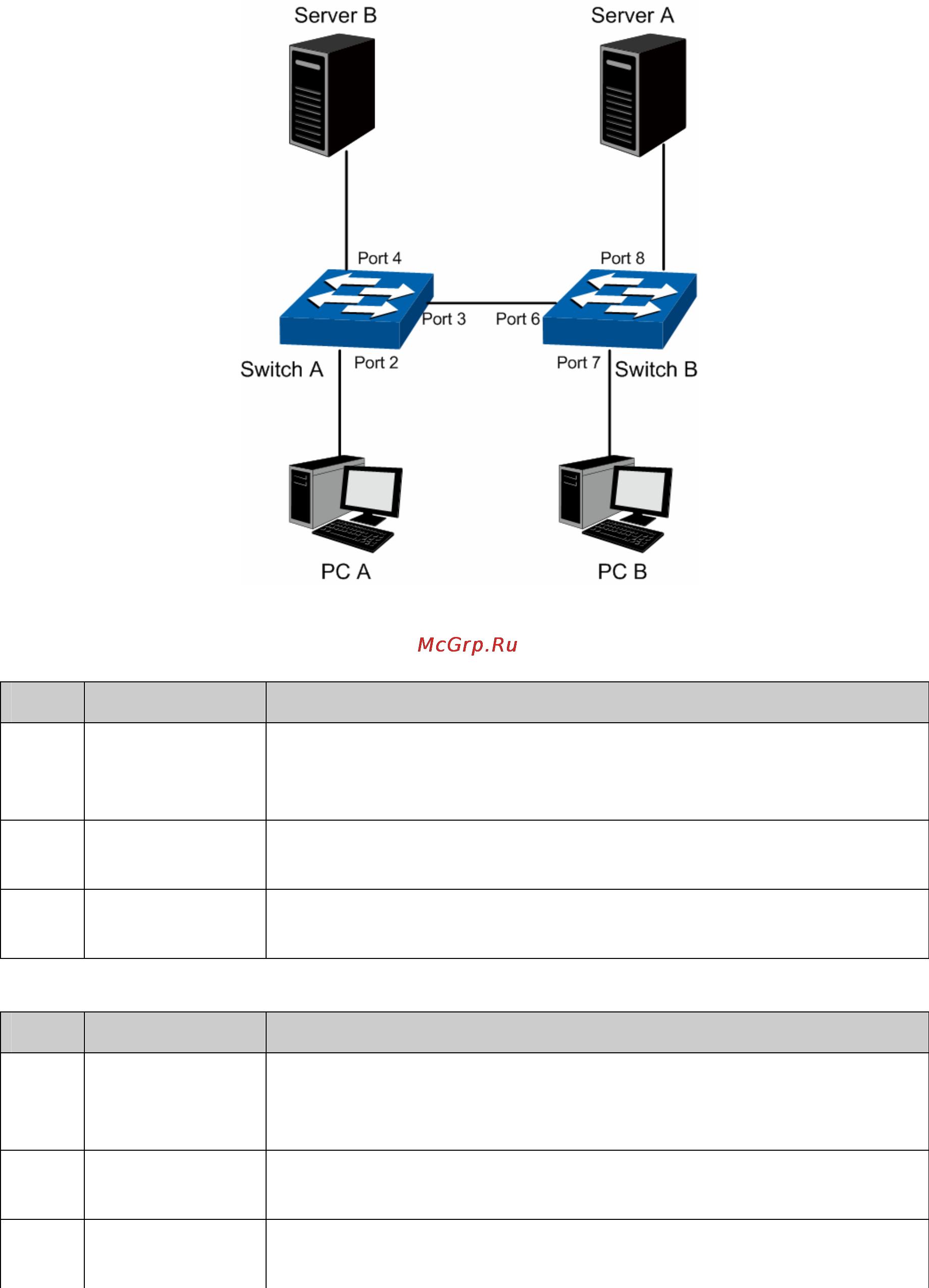

 Network Diagram

 Configuration Procedure

 Configure Switch A

Step Operation Description

1 Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure

the link type of Port 2, Port 3 and Port 4 as ACCESS, TRUNK and

ACCESS respectively

2 Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 10, owning Port 2 and Port 3.

3 Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 20, owning Port 3 and Port 4.

 Configure Switch B

Step Operation Description

1 Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure

the link type of Port 7, Port 6 and Port 8 as ACCESS, TRUNK and

ACCESS respectively.

2 Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 10, owning Port 6 and Port 8.

3 Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 20, owning Port 6 and Port 7.

6.4 Application Example for Protocol VLAN

 Network Requirements

 Department A is connected to the company LAN via Port12 of Switch A;
