Tp-Link TL-SG5412F [47/257] The following entries are displayed on this screen

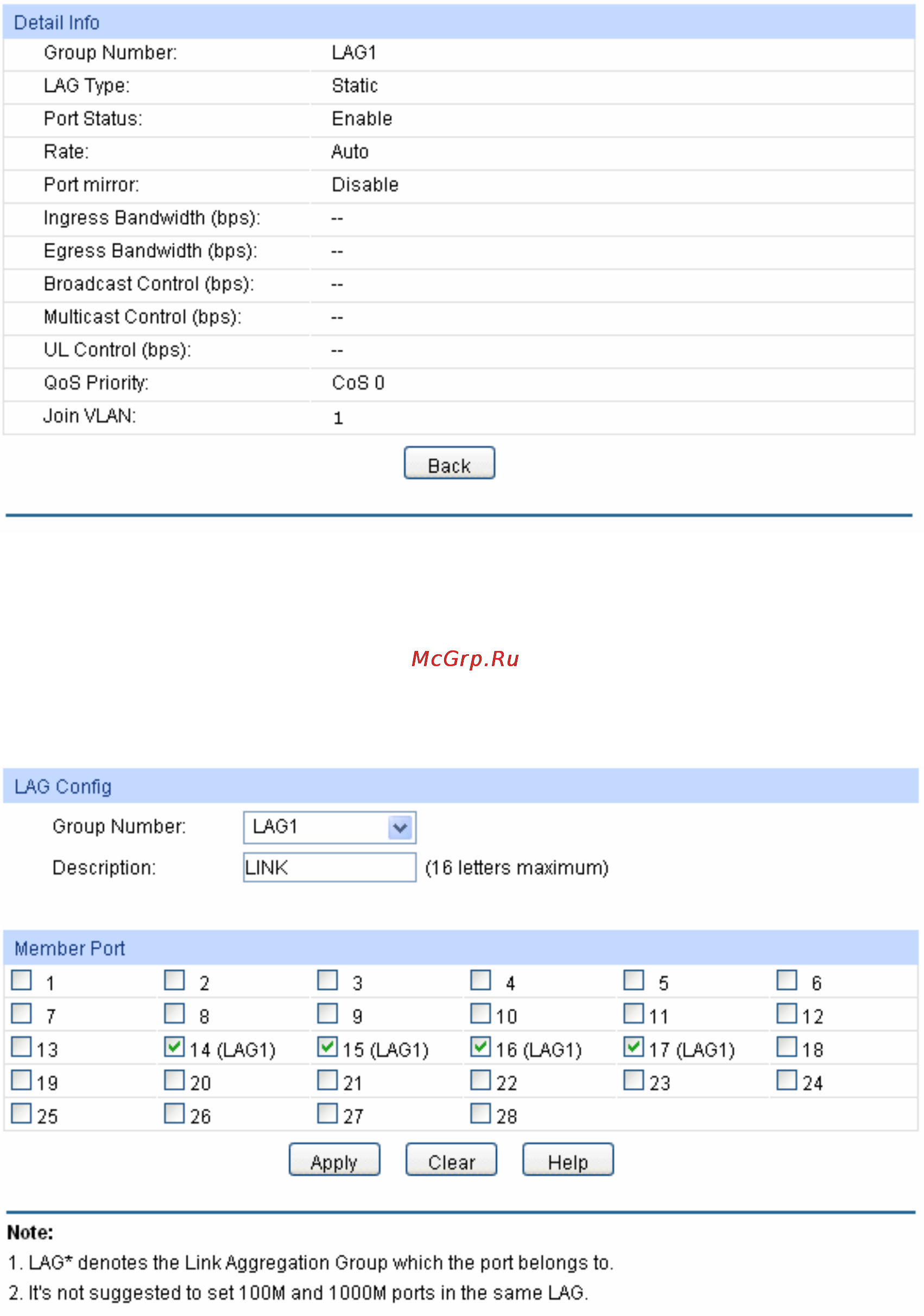

Figure 5-7 Detail Information

5.2.2 Static LAG

On this page, you can manually configure the LAG. The LACP feature is disabled for the member

ports of the manually added Static LAG.

Choose the menu Switching→LAG→Static LAG to load the following page.

Figure 5-8 Manually Config

The following entries are displayed on this screen:

 LAG Config

Group Number: Select a Group Number for the LAG.

Description: Give a description to the LAG for identification.
