 Department A has IP host and AppleTalk host;

 IP host, in VLAN10, is served by IP server while AppleTalk host is served by AppleTalk server;

 Switch B is connected to IP server and AppleTalk server.

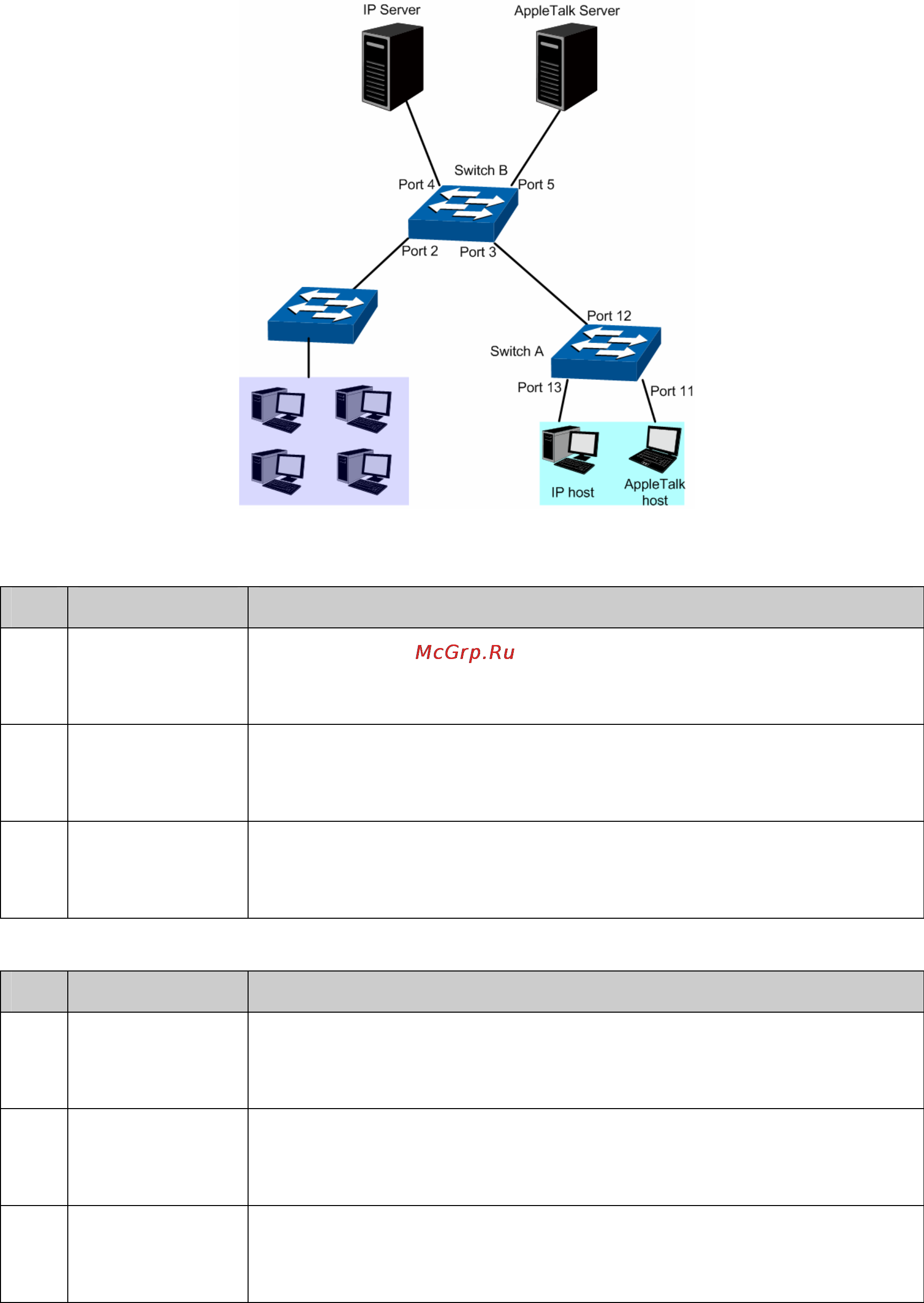

 Network Diagram

 Configuration Procedure

 Configure Switch A

Step Operation Description

1 Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure

the link type of Port 11 and Port 13 as ACCESS, and configure the link

type of Port 12 as GENERAL.

2 Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 10, owning Port 12 and Port 13, and

configure the egress rule of Port 12 as Untag.

3 Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 20, owning Port 11 and Port 12, and

configure the egress rule of Port 12 as Untag.

 Configure Switch B

Step Operation Description

1 Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure

the link type of Port 4 and Port 5 as ACCESS, and configure the link

type of Port 3 as GENERAL.

2 Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 10, owning Port 3 and Port 4, and configure

the egress rule of Port 3 as Untag.

3 Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLANID as 20, owning Port 3 and Port 5, and configure

the egress rule of Port 3 as Untag.
