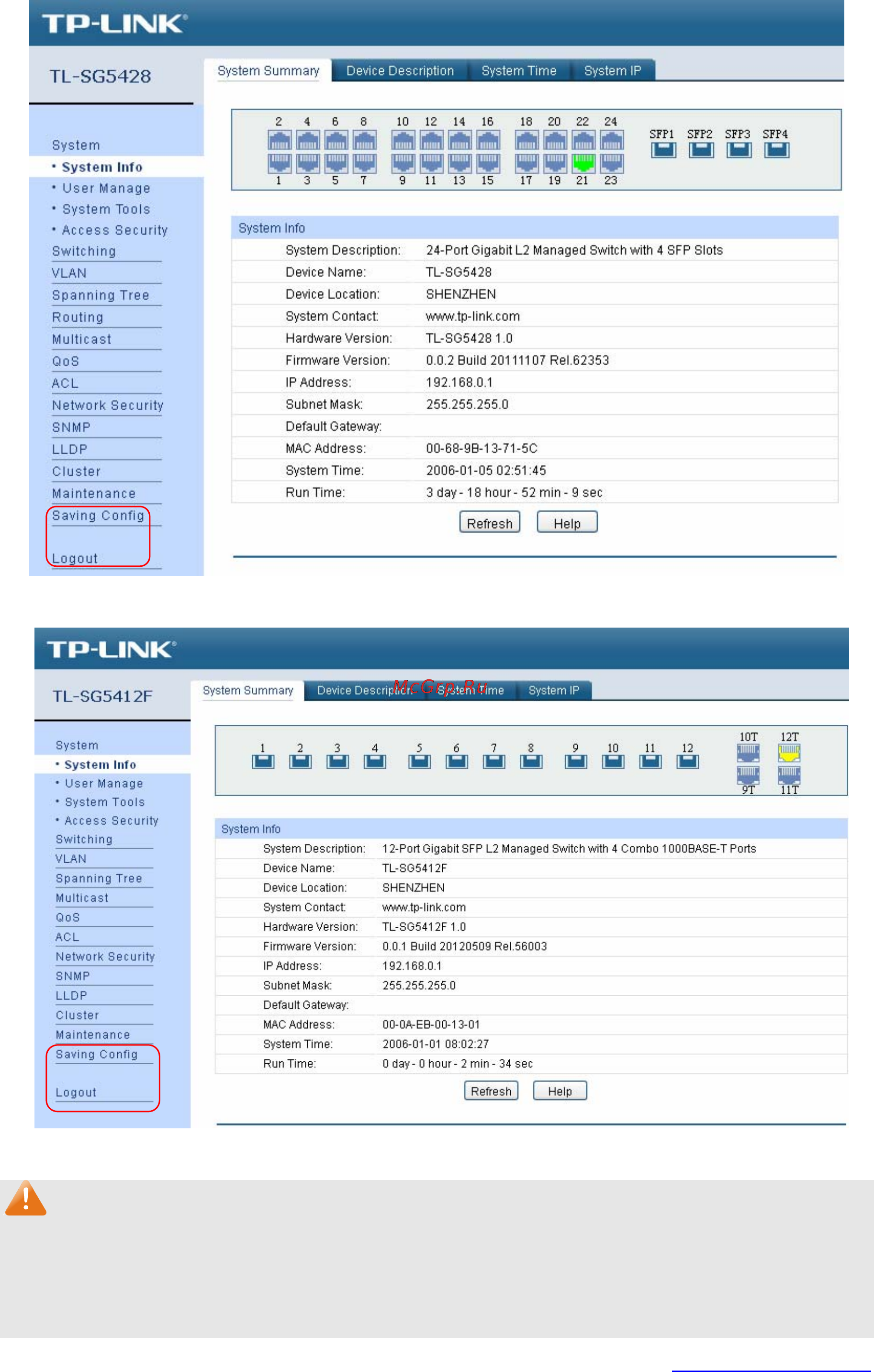

Figure 3-3 Main Setup-Menu of TL-SG5428

Figure 3-4 Main Setup-Menu of TL-SG5412F

Note:

Clicking Apply can only make the new configurations effective before the switch is rebooted. If

you want to keep the configurations effective even the switch is rebooted, please click Saving

Config. You are suggested to click Saving Config before cutting off the power or rebooting the

switch to avoid losing the new configurations.
