L2 Lite Managed Switch

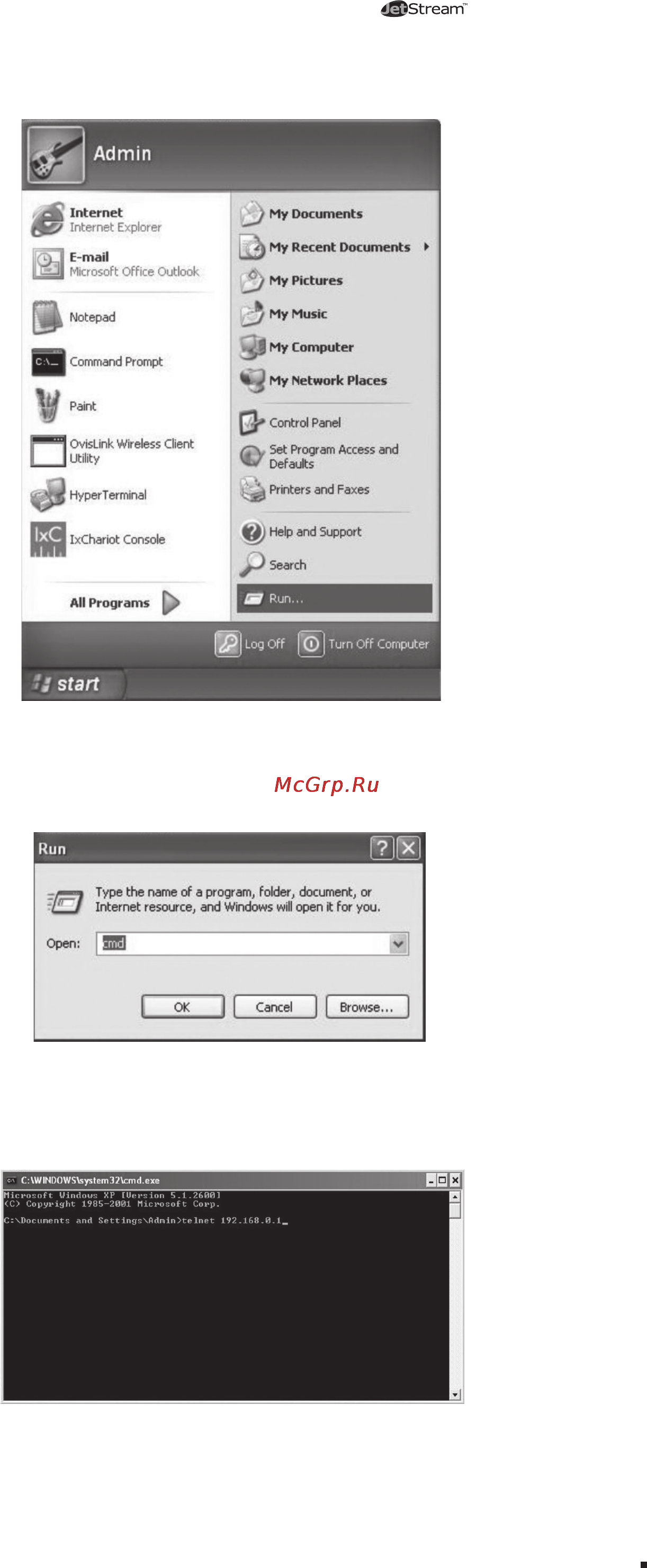

Open the Run windowFigure 5-9

Type cmd in the prompt Run window as Figure 5-10 and click OK.3.

Run WindowFigure 5-10

Type telnet 192.168.0.1 in the command prompt shown as Figure 5-11, and press the 4.

Enter button.

Connecting to the SwitchFigure 5-11

Configuration
