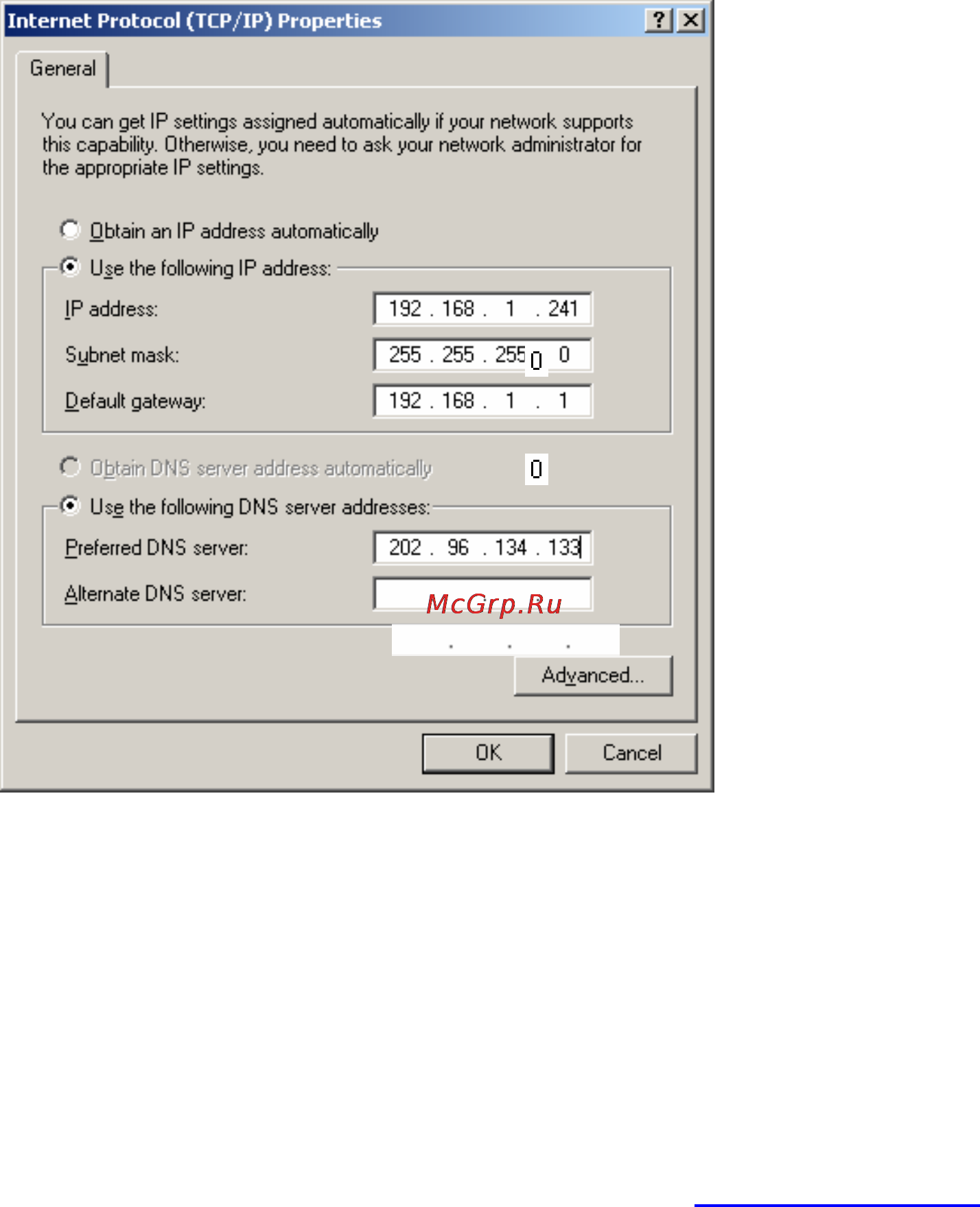

5) The following TCP/IP Properties window will display and the IP Address tab is open on

this window by default.

Select Use the following IP address. And the following items will be available. If the switch's

IP address is 192.168.0.1, specify IP address as 192.168.0.x (x is from 2 to 254), and the

Subnet mask as 255.255.255.0.

Now:

Click OK to save your settings.

Return to CONTENTS
