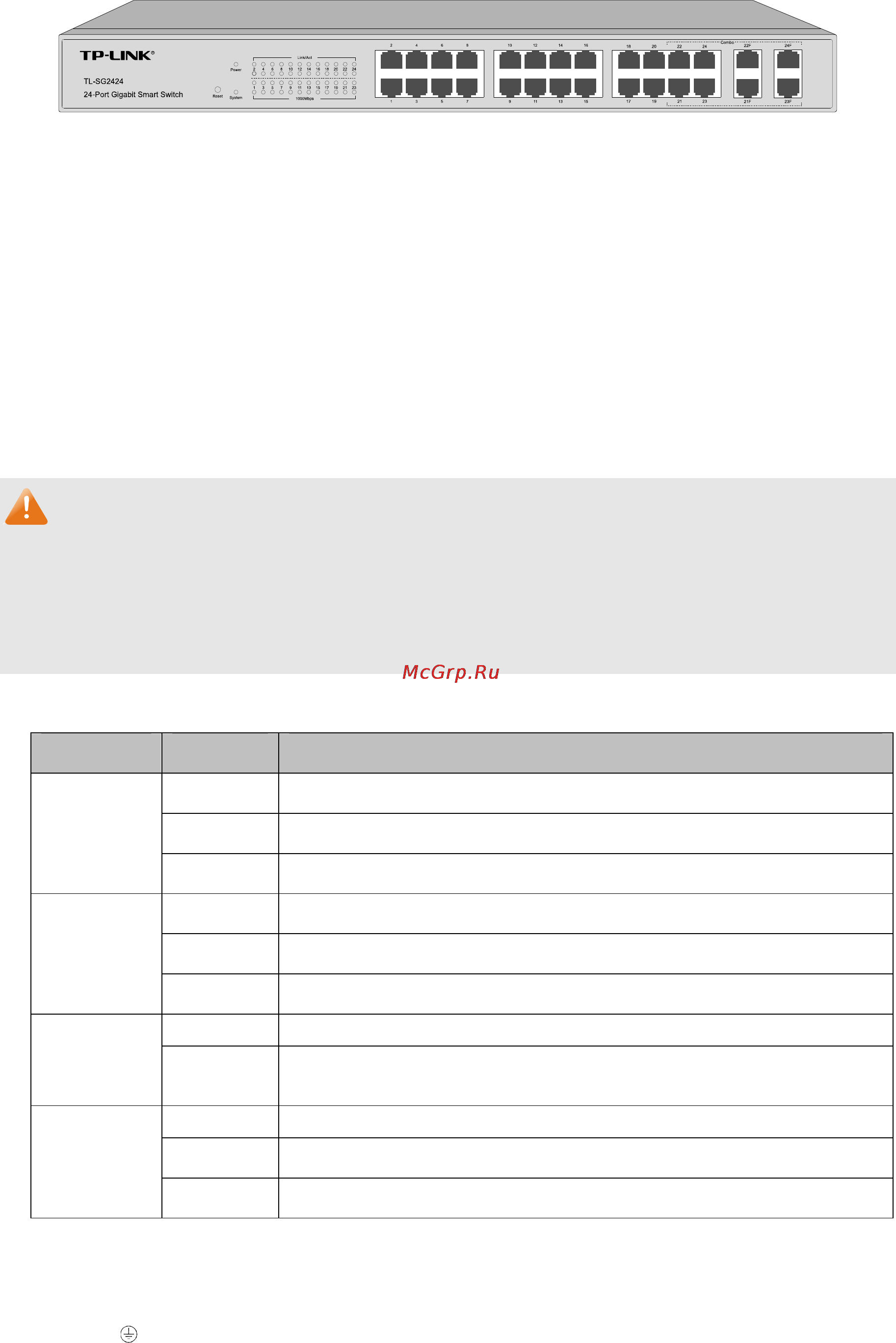

Figure 2-2 Front Panel of TL-SG2424

The following parts are located on the front panel of the Switch:

 Reset: Press this button for five seconds or above to reset the software setting back to factory

default setting.

 10/100/1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps,

100Mbps or 1000Mbps. Each has a corresponding 1000Mbps LED and link/Act LED.

 SFP Ports: Designed to install the SFP module. The SFP ports share the same LEDs with the

corresponding RJ45 ports, and they are referred to as “combo” ports, which means they cannot

be used simultaneously, otherwise only SFP ports work.

Note:

When using the SFP port with a 100Mbps module or a gigabit module, you need to configure its

corresponding Speed and Duplex mode on Switching→Port→Port Config page. For 100M

module, please select 100MFD while select 1000MFD for gigabit module. By default, the Speed

and Duplex mode of SFP port is 1000MFD.

 LEDs

Name Status Indication

On Power is on.

Flashing Power supply is abnormal.

Power

Off Power is off or power supply is abnormal.

On The Switch is working abnormally.

Flashing The Switch is working normally.

System

Off The Switch is working abnormally.

On A 1000Mbps device is connected to the corresponding port.

1000Mbps

Off

A 10/100Mbps device or no device is connected to the

corresponding port.

On A device is connected to the corresponding port but no activity.

Flashing Data is being transmitted or received.

Link/Act

Off No device is connected to the corresponding port.

2.3.2 Rear Panel

The rear panel of TL-SG2216/TL-SG2424 features a power socket and a Grounding Terminal

(marked with
