Link Type:

Select the Link Type from the pull-down list for the port.

 ACCESS: The ACCESS port can be added in a single VLAN,

and the egress rule of the port is UNTAG. The PVID is same

as the current VLAN ID. If the current VLAN is deleted, the

PVID will be set to 1 by default.

 TRUNK: The TRUNK port can be added in multiple VLANs,

and the egress rule of the port is TAG. The PVID can be set

as the VID number of any VLAN the port belongs to.

 GENERAL: The GENERAL port can be added in multiple

VLANs and set various egress rules according to the

different VLANs. The default egress rule is UNTAG. The

PVID can be set as the VID number of any VLAN the port

belongs to.

PVID: Enter the PVID number of the port.

LAG: Displays the LAG to which the port belongs.

VLAN: Click the Detail button to view the information of the VLAN to

which the port belongs.

Click the Detail button to view the information of the corresponding VLAN

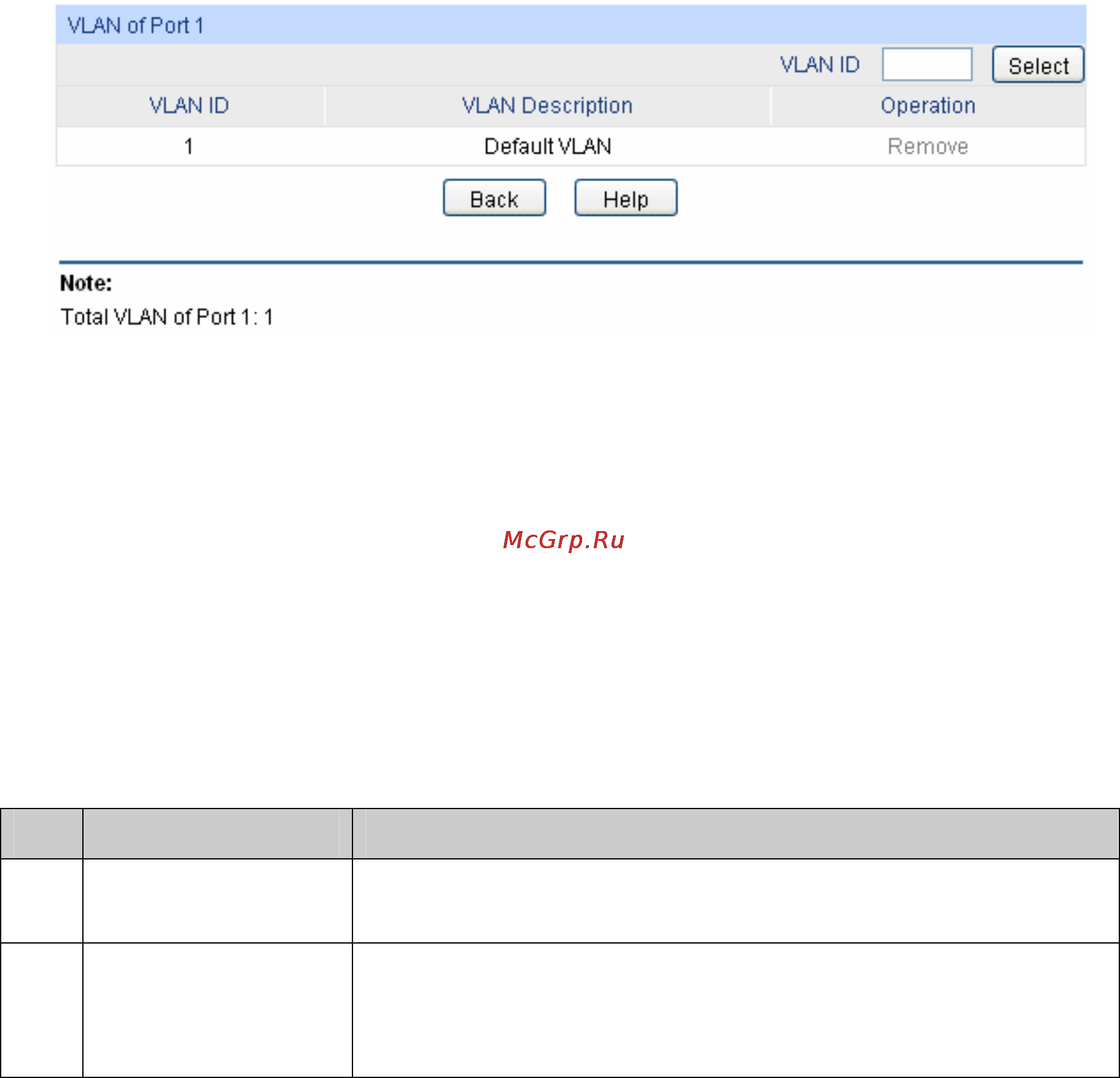

Figure 6-6 View the Current VLAN of Port

The following entries are displayed on this screen:

 VLAN of Port

VLAN ID Select:

Click the Select button to quick-select the corresponding entry

based on the VLAN ID number you entered.

VLAN ID：

Displays the ID number of VLAN.

VLAN Description:

Displays the user-defined description of VLAN.

Operation:

Allows you to remove the port from the current VLAN.

Configuration Procedure:

Step Operation Description

1 Set the link type for

port.

Required. On the VLAN→802.1Q VLAN→Port Config page, set

the link type for the port based on its connected device.

2 Create VLAN. Required. On the VLAN→802.1Q VLAN→VLAN Config page,

click the Create button to create a VLAN. Enter the VLAN ID and

the description for the VLAN. Meanwhile, specify its member

ports.
