Media Converters & Chassis
Overview
The Chassis-based Media Converters include a number of independent media converters and a chassis
capable of housing up to 14 media converters. You can start with single media converters, each equipped with
its own housing and AC power adapter. When you require more room, you can mount a chassis in your
equipment rack and install your media converters in the chassis - the media converters can be slid into the
chassis.

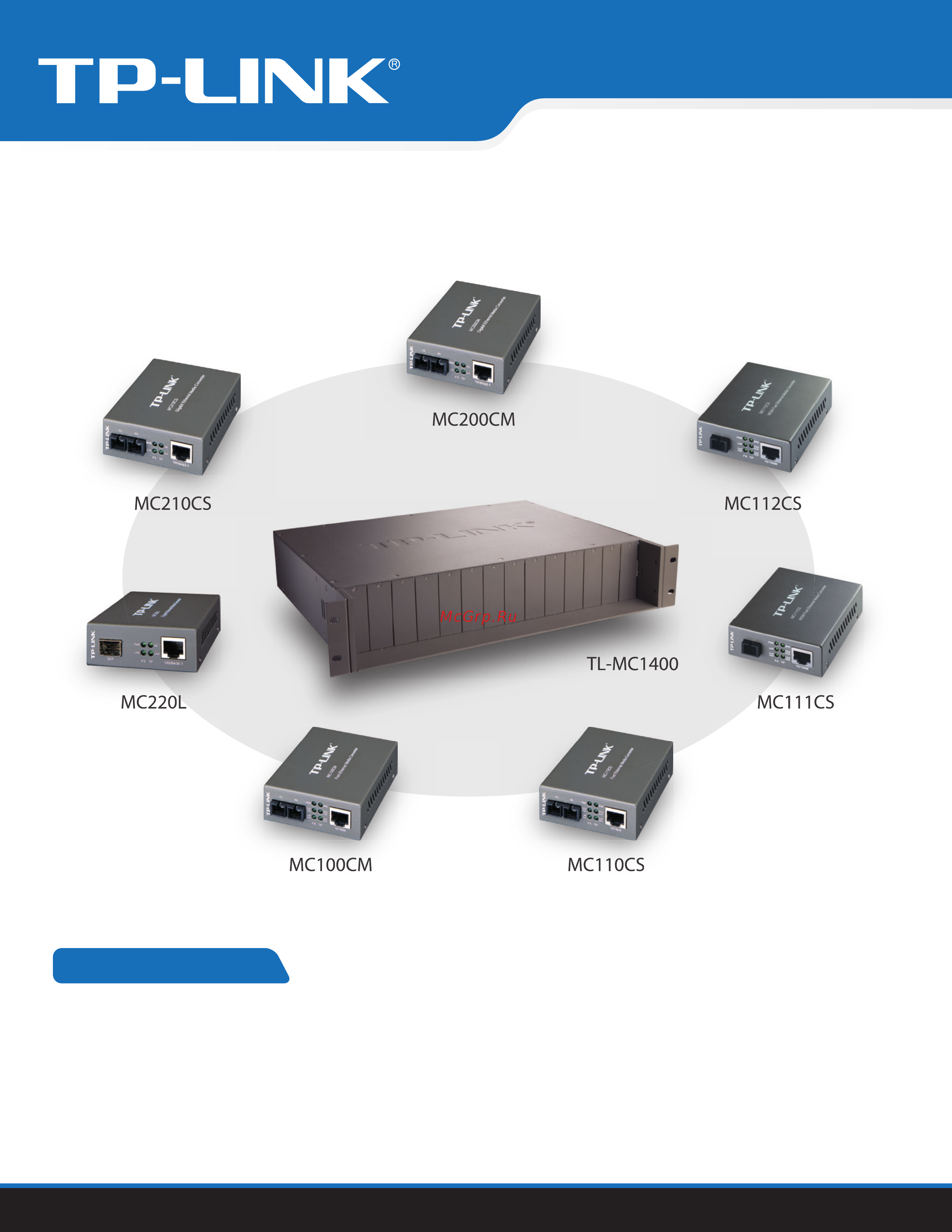

MC220L
MC100CM MC110CS
MC111CS
MC112CS
TL-MC1400
MC110CS
MC100CM
MC210CS
MC210CS
MC210CS
MC200CM
MC200CM
TL-MC1400
MC220L
MC220L
Datasheet
MC111CS
MC111CS
MC112CS
MC112CS
Содержание
- Datasheet 1
- Media converters chassis 1
- Overview 1
- Allows hot swapping of media converters 2
- Bays to house up to 14 media converters 2
- Cooling fans on back side together with power supplies 2
- Features 2
- Hot swappable redundant power supplies 2
- Media converter power isolation for electrical isolation from each bay 2
- Non stop operation minimal downtime 2
- Offers over voltage and over current protections 2
- Second ac to dc power supply for load sharing purposes optional 2
- Specifications 2
- Standard 19 inch rack mountable 2u height 2
- The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion this provides for space saving and the cabling will look neat the chassis comes with its own universal ac to dc power supply for maximum power availability an optional redundant power supply is available for installation in the chassis 2
- The tl mc1400 14 slot rackmount chassis is specially designed for accommodating chassis based media converters it is a standard 19 inch 2u height rackmount chassis which can be suitably mounted in the standard 19 inch rack 2
- The tl mc1400 supports mcxxx ver 2 and 3 not ver 1 2
- Tl mc1400 14 slot rackmount chassis 2
- Www tp link com 2
- Easy to view led indicators provide status to monitor network activity easily 3
- Extends fiber distance up to 0 5km 3
- Features 3
- Mc200cm 3
- Provides switch configuration of force auto transfer mode for fx port 3
- Specifications 3
- Supports auto mdi mdix for tx port 3
- The mc200cm media converter converts 1000base sx fiber to 1000base t copper media or vice versa it is designed for use with 850nm multi mode fiber cable utilizing the sc type connector transmitting data up to 0 5 kilometers away what s more mc200cm can work as a stand alone device no chassis required or with tp link s 19 system chassis 3
- Works at 1000mbps in full duplex mode for both tx port and fx port 3
- Www tp link com 3
- Easy to view led indicators provide status to monitor network activity easily 4
- Extends fiber distance up to 15km 4
- Features 4
- Mc210cs 4
- Provides switch configuration of force auto transfer mode for fx port 4
- Specifications 4
- Supports auto mdi mdix for tx port 4
- The mc210cs media converter converts 1000base lx lh fiber to 1000base t copper media or vice versa it is designed for use with 1310nm single mode fiber cable utilizing the sc type connector transmitting data up to 15 kilometers what s more mc210cs can work as a stand alone device no chassis required or with tp link s 19 system chassis 4
- Works at 1000mbps in full duplex mode for both tx port and fx port 4
- Www tp link com 4
- Easy to view led indicators provide status to monitor network activity easily 5
- Extends fiber distance up to 0 5 km for multi mode fiber and 10 km for single mode fiber 5
- Features 5
- Fx port support hot swappable 5
- Mc220l 5
- Provides switch configuration of force auto transfer mode for fx port 5
- Specifications 5
- Supports auto mdi mdix for tx port 5
- The mc220l converts 1000base sx lx lh fiber to 1000base t copper media or vice versa it is designed for use with 850nm multi mode 1310nm single mode wdm fiber cable utilizing the lc type connector transmitting data up to 0 5 kilometers or 10 kilometers what s more mc220l can work as a stand alone device no chassis required or with tp link s 19 system chassis 5
- Works at 1000mbps in full duplex mode for both tx port and fx port 5
- Www tp link com 5
- Auto negotiation of 10 100mbps and auto mdi mdix for tx port 6
- Easy to view led indicators provide status to monitor network activity easily 6
- Extend fiber distance up to 2km 6
- Features 6
- Link fault pass through and far end fault minimize the loss caused by link failure timely 6
- Mc100cm 6
- Provide switch configuration of half duplex full duplex transfer mode for tx port 6
- Specifications 6
- The mc100cm media converter converts 100base fx fiber to 100base tx copper media or vice versa it is designed for use with 850nm multi mode fiber cable utilizing the sc type connector transmitting data up to 2 kilometers what s more mc100cm can work as a stand alone device no chassis required or with tp link s 19 system chassis and is equipped with link fault pass through which minimizes the loss caused by link failure 6
- Www tp link com 6
- Auto negotiation of 10 100mbps and auto mdi mdix for tx port 7
- Easy to view led indicators provide status to monitor network activity easily 7
- Extend fiber distance up to 20km 7
- Features 7
- Link fault pass through and far end fault minimize the loss caused by link failure timely 7
- Mc110cs 7
- Provide switch configuration of half duplex full duplex transfer mode for tx port 7
- Specifications 7
- The mc110cs is a media converter designed to convert 100base fx fiber to 100base tx copper media or vice versa it s designed for use with single mode fiber cable utilizing the sc type connector transmitting data up to 20 kilometers what s more mc110cs can work as a stand alone device no chassis required or with tp link s 19 system chassis and is equipped with link fault pass through which minimizes the loss caused by link failure 7
- Www tp link com 7
- Auto negotiation of 10 100mbps and auto mdi mdix for tx port provide switch configuration of half duplex full duplex transfer mode for tx port link fault pass through and far end fault minimize the loss caused by link failure timely adopts wdm technology transmitting and receiving data on one single fiber extend fiber distance up to 20km easy to view led indicators provide status to monitor network activity easily 8
- Features 8
- Mc111cs 8
- Specifications 8
- The mc111cs is a media converter designed to convert 100base fx fiber to 100base tx copper media or vice versa it s designed for use with single mode fiber cable utilizing the sc type connector adopting wdm technology mc111cs takes only one fiber to transmit and receive data which saves you half of the cabling cost on this fiber it works at 1550nm on transferring data and at 1310nm on receiving data so the other end device cooperating with the mc111cs will work at 1310nm on transferring data and at 1550nm on receiving data another of tp link s media converters the mc112cs is just one example of potential devices with which to cooperate with the mc111cs moreover mc111cs can work as a stand alone device no chassis required or with tp link s 19 system chassis and is equipped with link fault pass through which minimizes the loss caused by link failure 8
- Www tp link com 8
- Auto negotiation of 10 100mbps and auto mdi mdix for tx port provide switch configuration of half duplex full duplex transfer mode for tx port link fault pass through and far end fault minimize the loss caused by link failure timely adopts wdm technology transmitting and receiving data on one single fiber extend fiber distance up to 20km easy to view led indicators provide status to monitor network activity easily 9
- Features 9
- Mc112cs 9
- Specifications 9
- The mc112cs is a media converter designed to convert 100base fx fiber to 100base tx copper media or vice versa it s designed for use with single mode fiber cable utilizing the sc type connector adopting wdm technology mc112cs takes only one fiber to transmit and receive data which saves you half of the cabling cost on this fiber it works at 1310nm on transferring data and at 1550nm on receiving data so the other end device cooperating with the mc112cs will work at 1550nm on transferring data and at 1310nm on receiving data another of tp link s media converters the mc111cs is just one example of potential devices with which to cooperate with the mc111cs moreover mc112cs can work as a stand alone device no chassis required or with tp link s 19 system chassis and is equipped with link fault pass through which minimizes the loss caused by link failure 9
- Www tp link com 9
- More information of the 1000mbps series media converter 10
- More information of the 100mbps series media converter 10
