SafeStream

Gigabit Broadband VPN Router User GuideTL-R600VPN

)

Note:

Only you have set the system time on System Tools→Time screen, will the Time-based

Connecting function take effect.

¾ Connect Manually - You can configure the router to make it connect or disconnect manually.

After a specified period of inactivity (Max Idle Time), the router will disconnect your Internet

connection, and not be able to re-establish your connection automatically even though you

attempt to access the Internet again. You need click the Connect button manually to connect

immediately, or click the Disconnect button manually to disconnect immediately; To use this

option, click the radio button. If you want your Internet connection to remain active at all times,

enter 0 in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to

have the Internet connecting last unless a new link is requested.

)

Note:

1) If you want your Internet connection to remain active at all times, enter 0 in the Max Idle

Time field. Otherwise, enter the number in minutes that you wish to have the Internet

connecting last unless a new link is requested.

2) Sometimes the connection cannot be disconnected although you specify a time to Max

Idle Time. This is because there may still be active applications in the background, which

may cause fee accounted by your ISP.

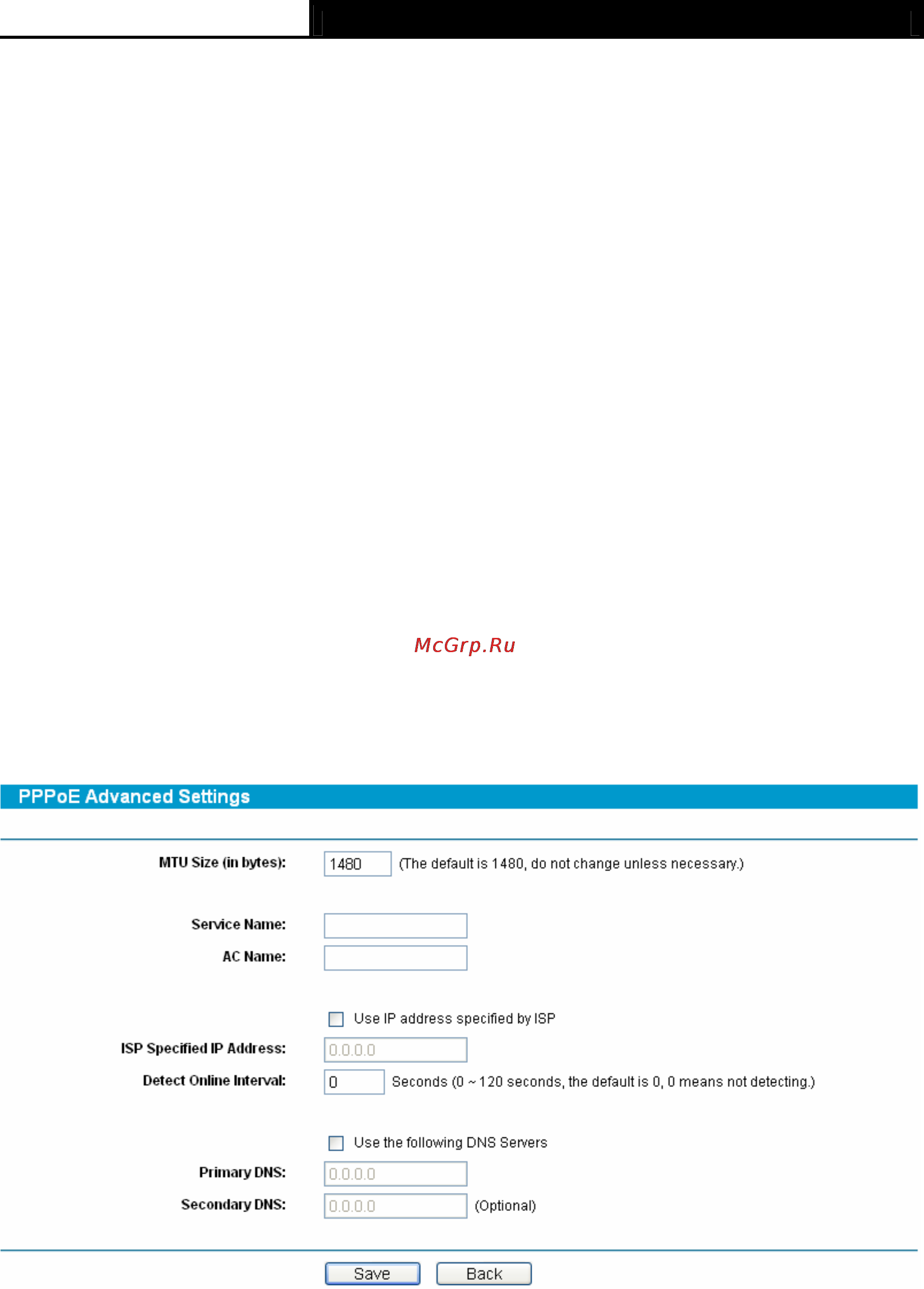

Click the Advanced button to set up the advanced option as shown in Figure 4-6.

Figure 4-6

¾ MTU Size- The default MTU size is 1480 bytes, which is usually fine. For some ISPs, you

need modify the MTU. This should not be done unless you are sure it is necessary for your

ISP.

¾ Service Name/AC Name - The service name and AC (Access Concentrator) name should

not be configured unless you are sure it is necessary for your ISP.
