TL-R600VPN SafeStream Gigabit Broadband VPN Router User Guide
TM
28

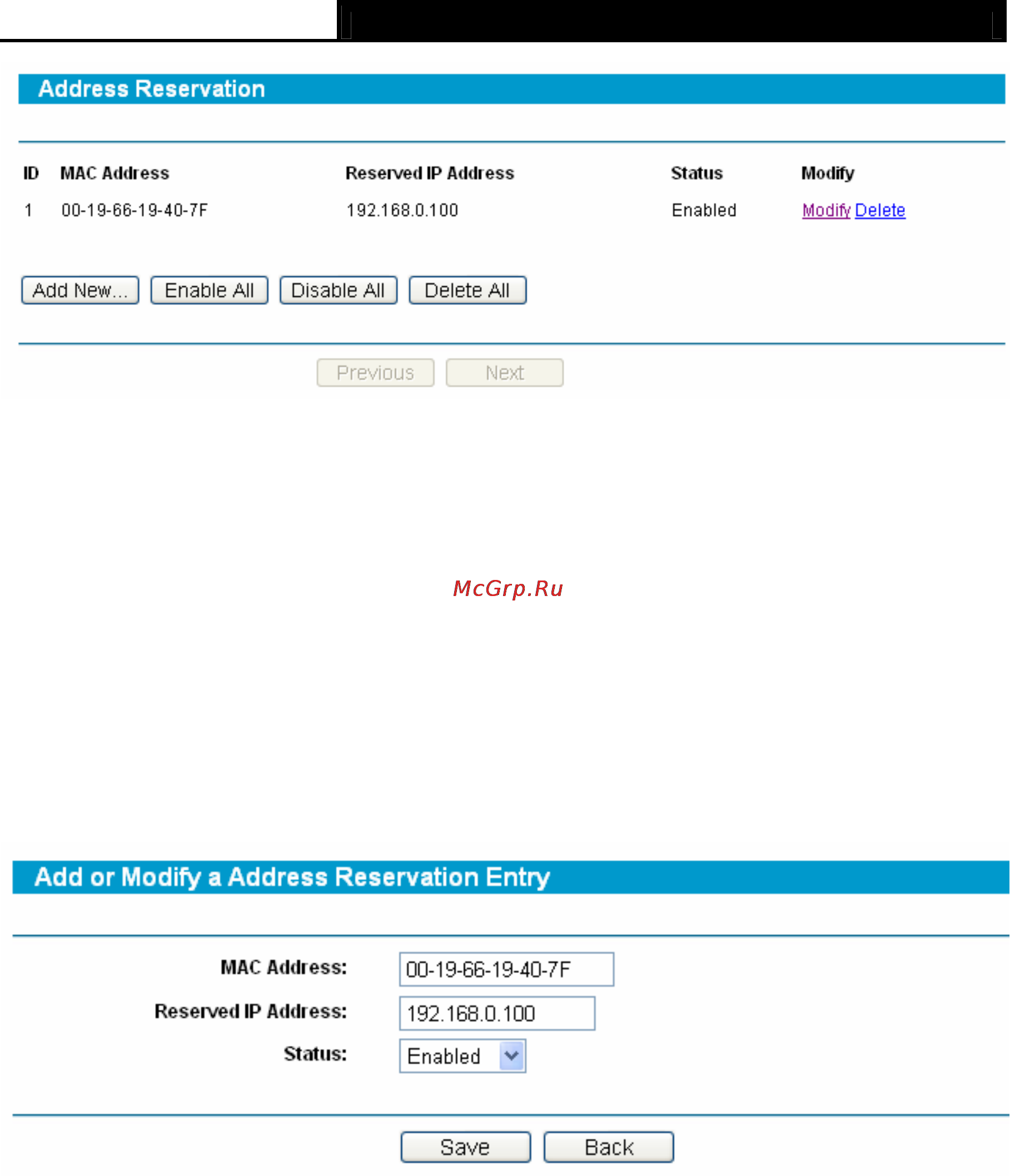

Figure 4-15
¾ MAC Address - This field displays the MAC address of the PC for which you want to
reserve IP address.
¾ Assigned IP Address - This field displays the IP address of the router reserved.
¾ Status - This field displays the status of the virtual server entry. Enabled means that the
entry will take effect, Disabled means that the entry will not take effect.
To add/modify a reserved IP address:
Step 1: Click Add New…/Modify shown in Figure 4-15, you will see a new screen shown in
Figure 4-16.
Step 2: Enter the MAC address, IP address and select Status as shown in the screen below.
Figure 4-16
Step 3: Click the Save button when finished.
)
Note:
1) If you want to add more than one reserved IP, please go to step 1 to continue.
2) The function won't take effect until the router reboots.
Other configurations for the entries as shown in Figure 4-15:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
