TL-WPA281/TL-WPA271 Wireless N Powerline Extender
4

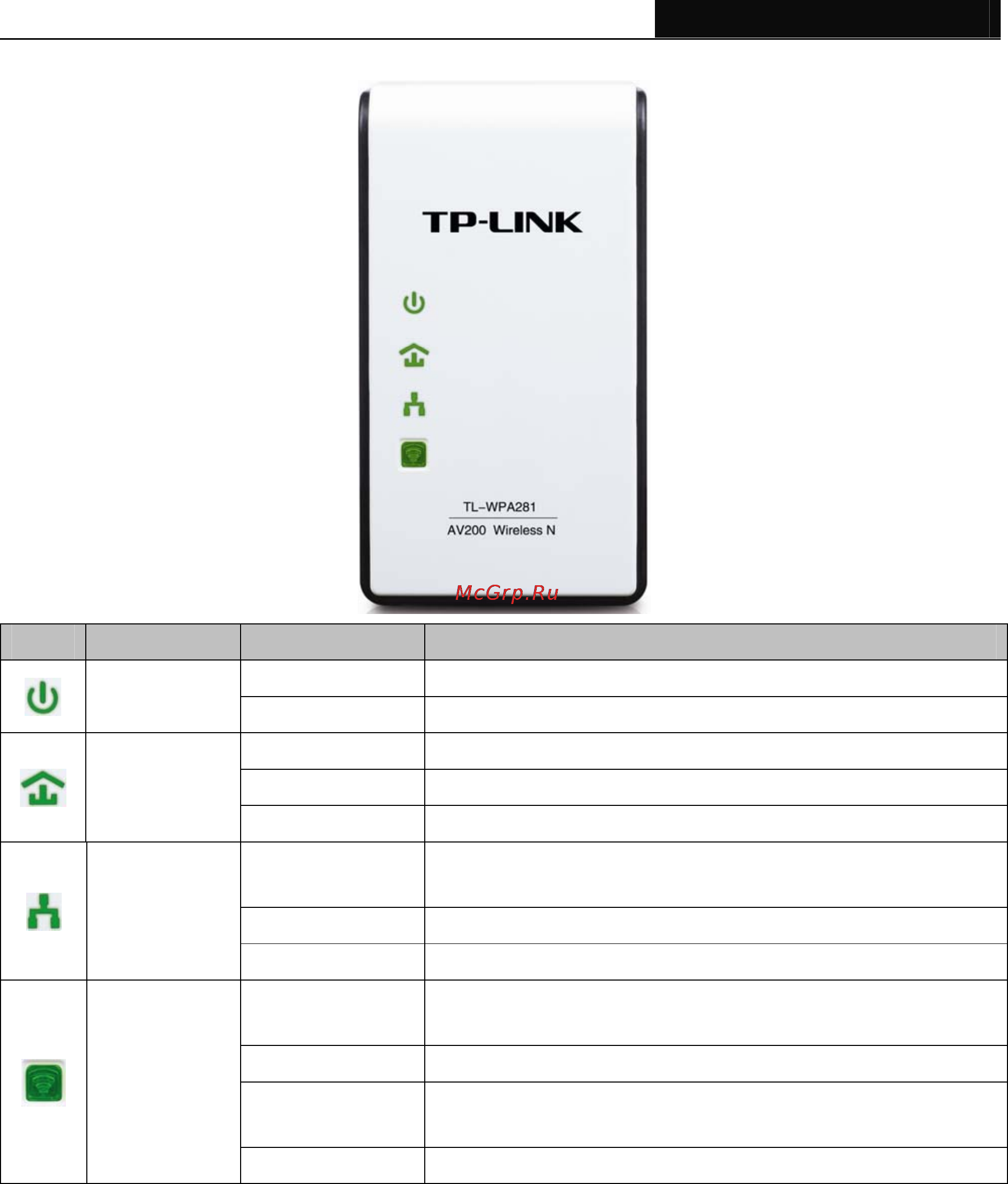

LEDs Name Status Indication
Solid The device is on.
Power LED
Off The device is off.
Solid The device is connected to a powerline network.
Off The adapter isn’t connected to any powerline network.
Powerline
LED
Blinking The device is transferring data.
Solid
The Ethernet port is connected, but there is no data being
transferred.
Off The Ethernet port isn’t connected.
Ethernet LED
Blinking The Ethernet port is transferring data.
Solid
If the LED becomes solid light for 300 seconds, this
indicates a successful WPS connection.
Off The wireless function has been disabled.
Blinking slowly
The device is waiting for client devices to connect to it by
WPS.
WiFi/WPS
LED
Blinking quickly The wireless function has been enabled.
2.3 Physical Interface
There are four physical items on this device.
