TL-WPA281/TL-WPA271 Wireless N Powerline Extender

) Note:

If another TL-WPA281 is displayed on the screen above and you cannot decide which model is the one

you are configuring, please refer to the MAC address under MAC Address column. The device’s MAC

address can be found on the label at the bottom of the device.

3. Enter admin for the User name and Password (both in lower case letters) in the screen below. Then

click OK or press Enter.

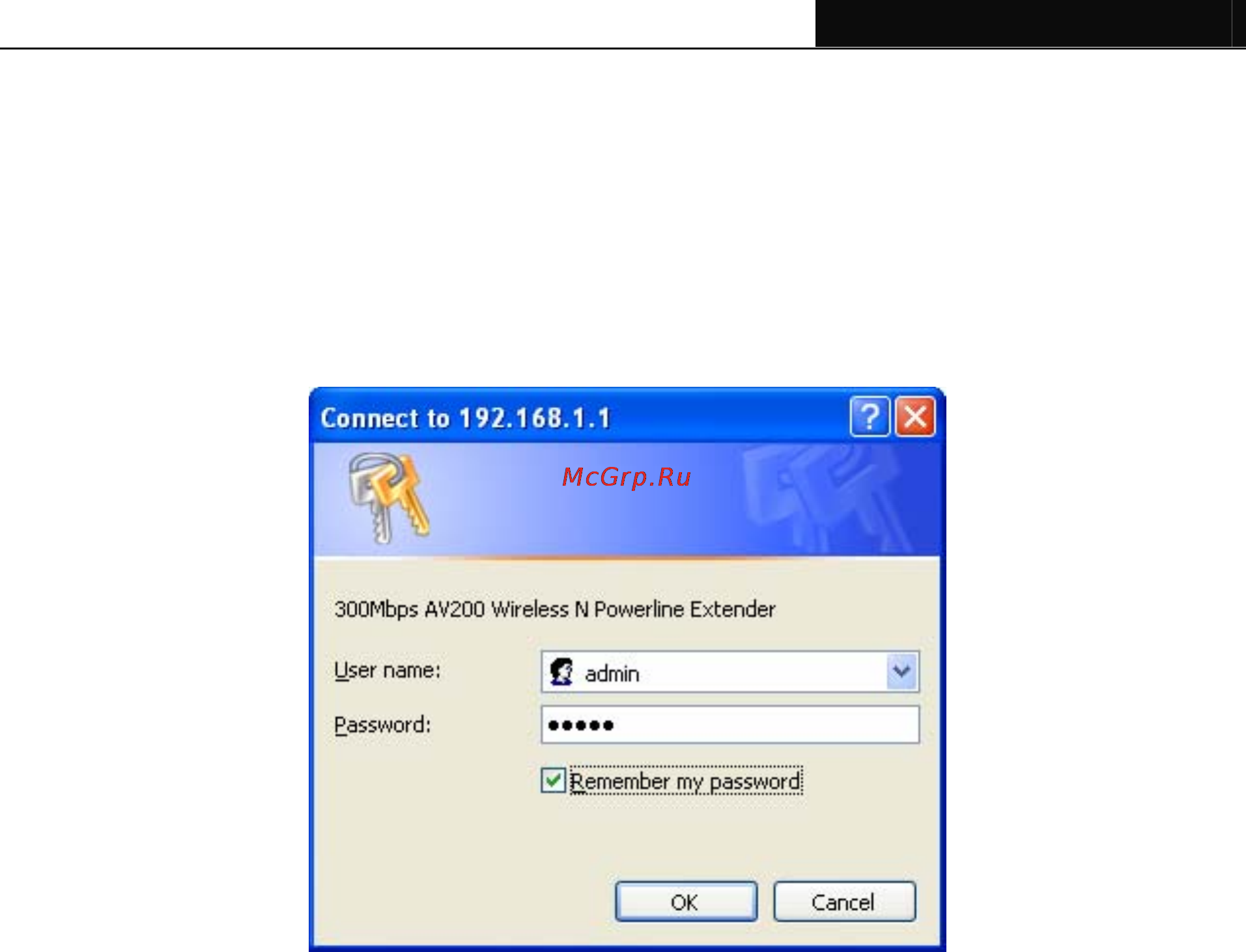

Figure 3-3 Login Window

)

Note:

If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to

Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the

Using Proxy checkbox, and click OK to finish it.

After a successful login, you can configure and manage the device. There are six main menus on the

leftmost column of the Web-based management page: Status, WPS, Network, Wireless, Powerline

and System Tools. Submenus will be available after clicking one of the main menus. On the right of the

Web-based management page lays the detailed explanations and instructions for the corresponding

page.

3.2 Status

The Status page displays the Powerline Extender’s current status and configuration. All information is

read-only.
