Tp-Link TL-WPA271 [32/51] Wireless advanced

TL-WPA281/TL-WPA271 Wireless N Powerline Extender

Click the Delete All button to delete all entries

Click the Next button to go to the next page and click the Previous button to return to the previous page.

For example: If you desire that the wireless station A with MAC address 00-0A-EB-00- 07-BE is able to

access the device, while all other wireless stations cannot access the device, you should configure the

Wireless MAC Address Filtering list by following these steps:

1. Click the Enable button to enable this function.

2. Select the radio button: Deny the stations not specified by any enabled entries in the list to

access for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the Add New... button and enter the MAC address 00-0A-EB-00-07-BE in the MAC Address

field, enter Wireless Station A in the Description field and select Enabled in the Status pull-down

list. Click the Save button.

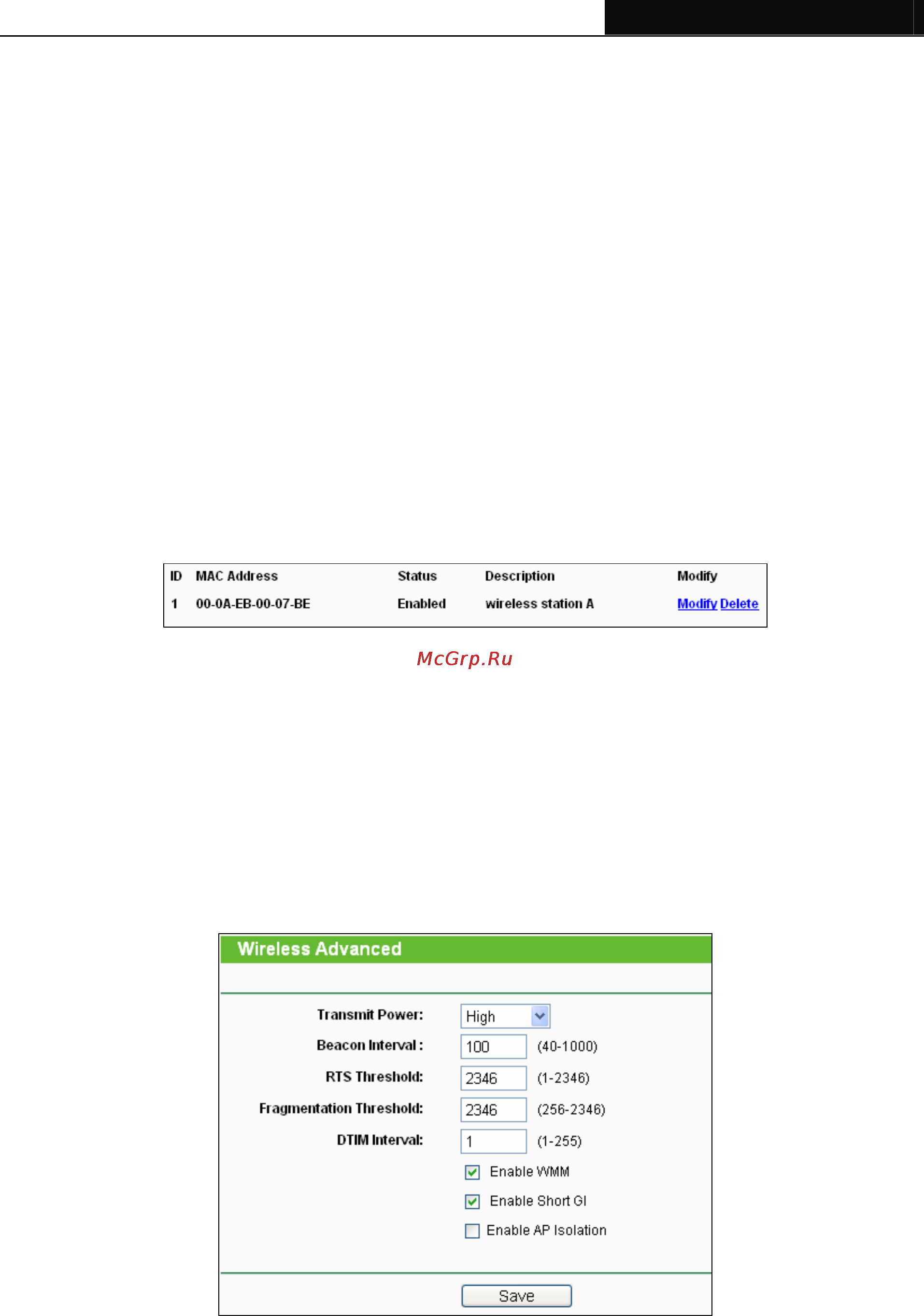

The filtering rules that configured should be similar to the following list:

)

Note:

If you enable the function and select Deny the stations not specified by any enabled entries in the

list to access for Filtering Rules but there isn’t any enabled entry in the list, thus, no wireless stations

can access the device.

3.5.4 Wireless Advanced

Selecting Wireless > Wireless Advanced will allow you to do some advanced settings for the device in

the following screen shown in Figure 3-18. As the configuration for each operation mode is almost the

same, we take Access Point mode for example here.

Figure 3-18 Wireless Advanced
