TL-WPA281/TL-WPA271 Wireless N Powerline Extender

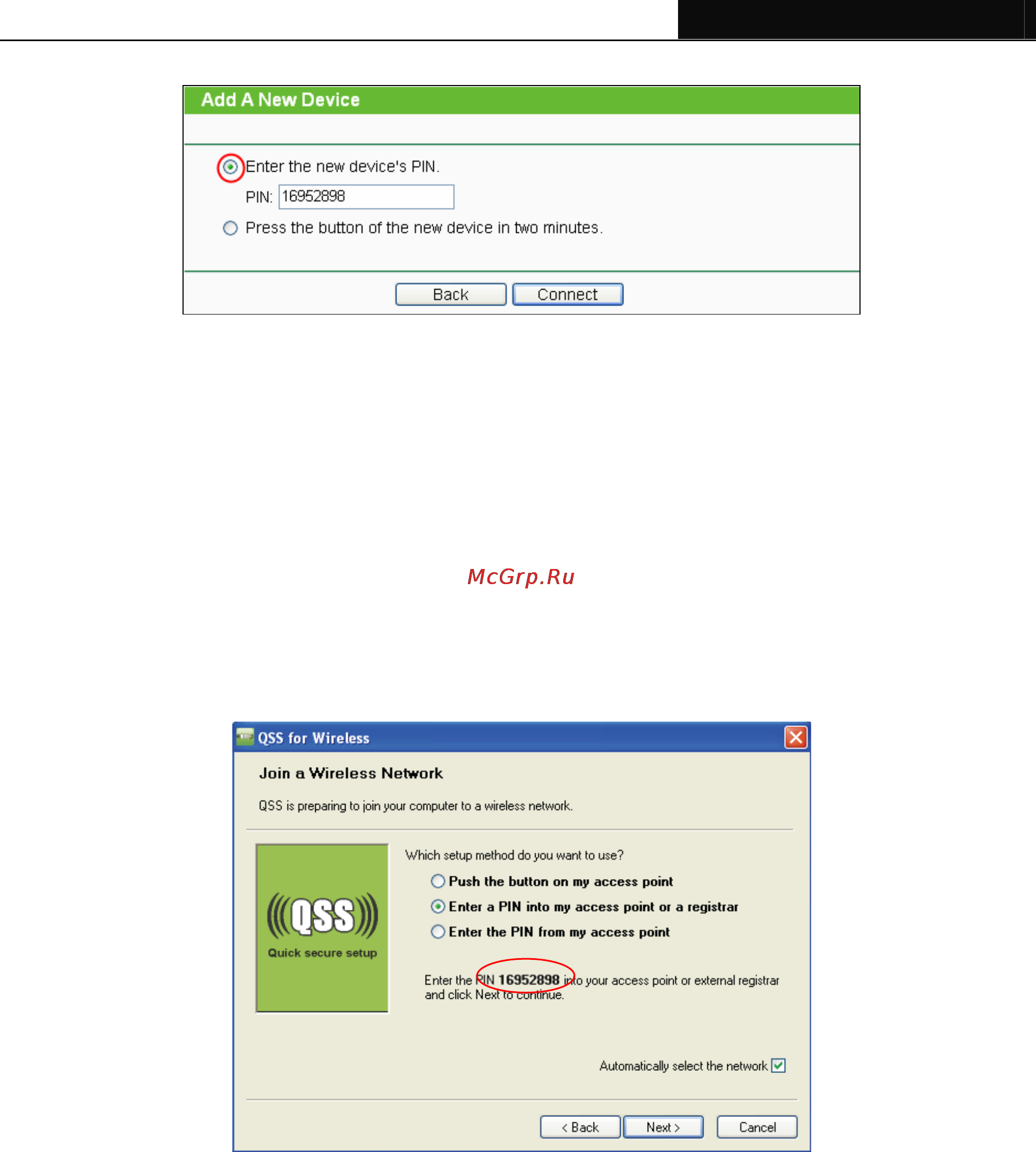

Figure 3-7 Add a New Device

Step 2: Choose Enter the new device's PIN and enter the PIN code (take 16952898 for example) of

the wireless adapter in the field after PIN as shown in the figure above. Then click Connect.

)

Note:

The PIN code of the adapter is always displayed on the WPS configuration screen as shown in the

following figure.

Step 3: For the configuration of the wireless adapter, please choose Enter a PIN into my access point

or a registrar in the configuration utility of the WPS as below, and click Next. (QSS, also called

WPS, is used by our company on the wireless adapter.)

The WPS Configuration Screen of Wireless Adapter

)

Note:

In this example, the default PIN code of this adapter is 16952898 as the above figure shows.

Method Two: Enter the PIN from my Powerline Extender

Step 1: Get the Current PIN code of the Powerline Extender in Figure 3-5 (Each Powerline Extender

has its unique PIN code. Here takes the PIN code 12345670 of this device for example).

Step 2: For the configuration of the wireless adapter, please choose Enter a PIN from my access

point in the configuration utility of the WPS as below, and enter the PIN code of the Extender

into the field after Access Point PIN. Then click Next. (QSS, also called WPS, is used by our

company on the wireless adapter.)
