TD-W8101G 54Mbps Wireless ADSL2+ Modem Router User Guide
5
2.2 The Back Panel

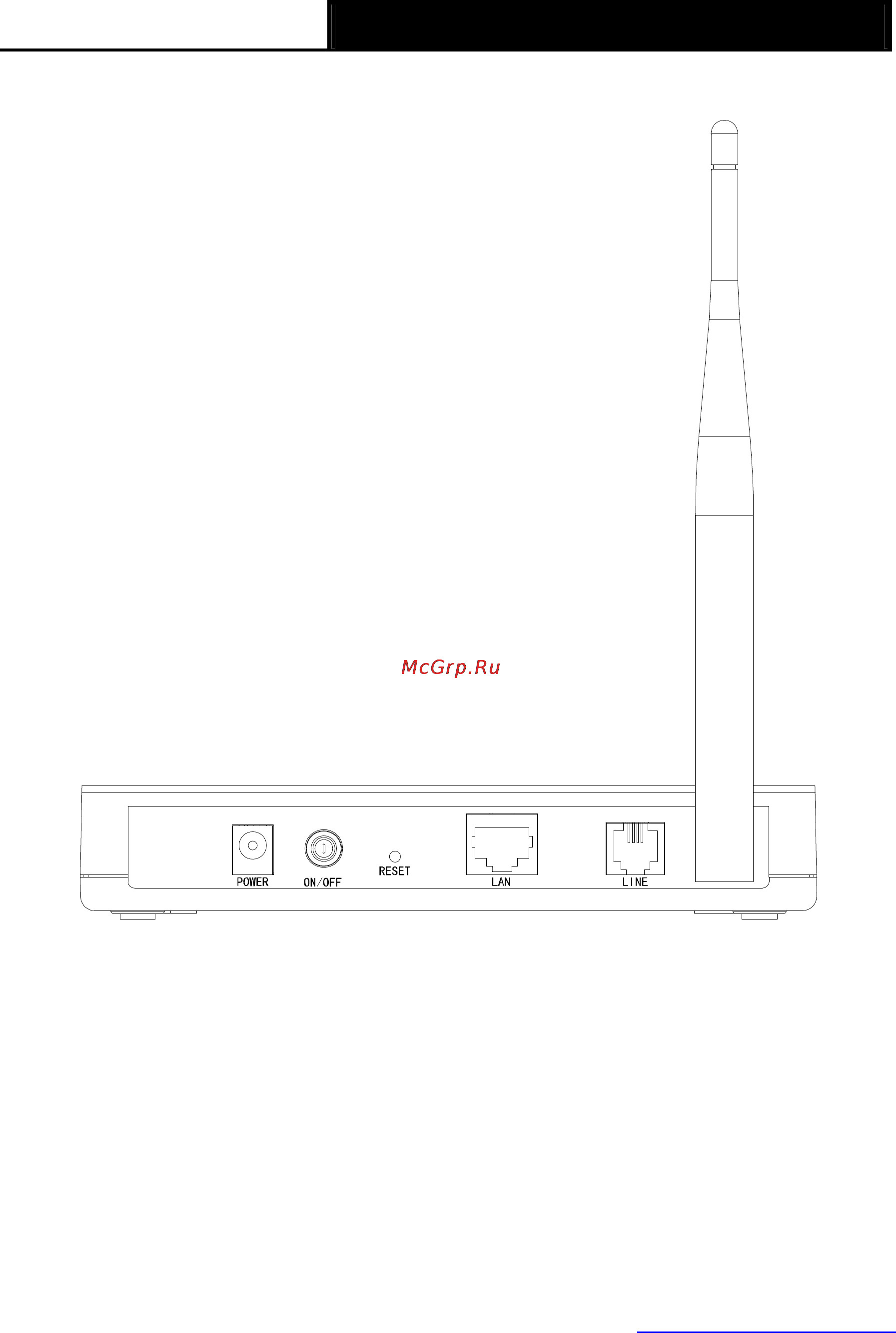

Figure 2-2
¾ POWER: The Power plug is where you will connect the power adapter.
¾ ON/OFF: The power switch for the Router.
¾ RESET: There are two ways to reset the Router's factory defaults.
Method one: With the Router powered on, use a pin to press and hold the Reset button for at
least 5 seconds. And the Router will reboot to its factory default settings.
Method two: Restore the default setting from “Maintenance-SysRestart” of the Router's
Web-based Utility.
¾ LAN: Through the port, you can connect the Router to your PC or the other Ethernet network
devices.
¾ LINE: Through the port, you can connect the Router with the telephone. Or you can connect
them by an external separate splitter. For details, please refer to “2.4 Connecting the Router”
.
¾ Antenna: Used for wireless operation and data transmit.
