TD-W8101G 54Mbps Wireless ADSL2+ Modem Router User Guide
16

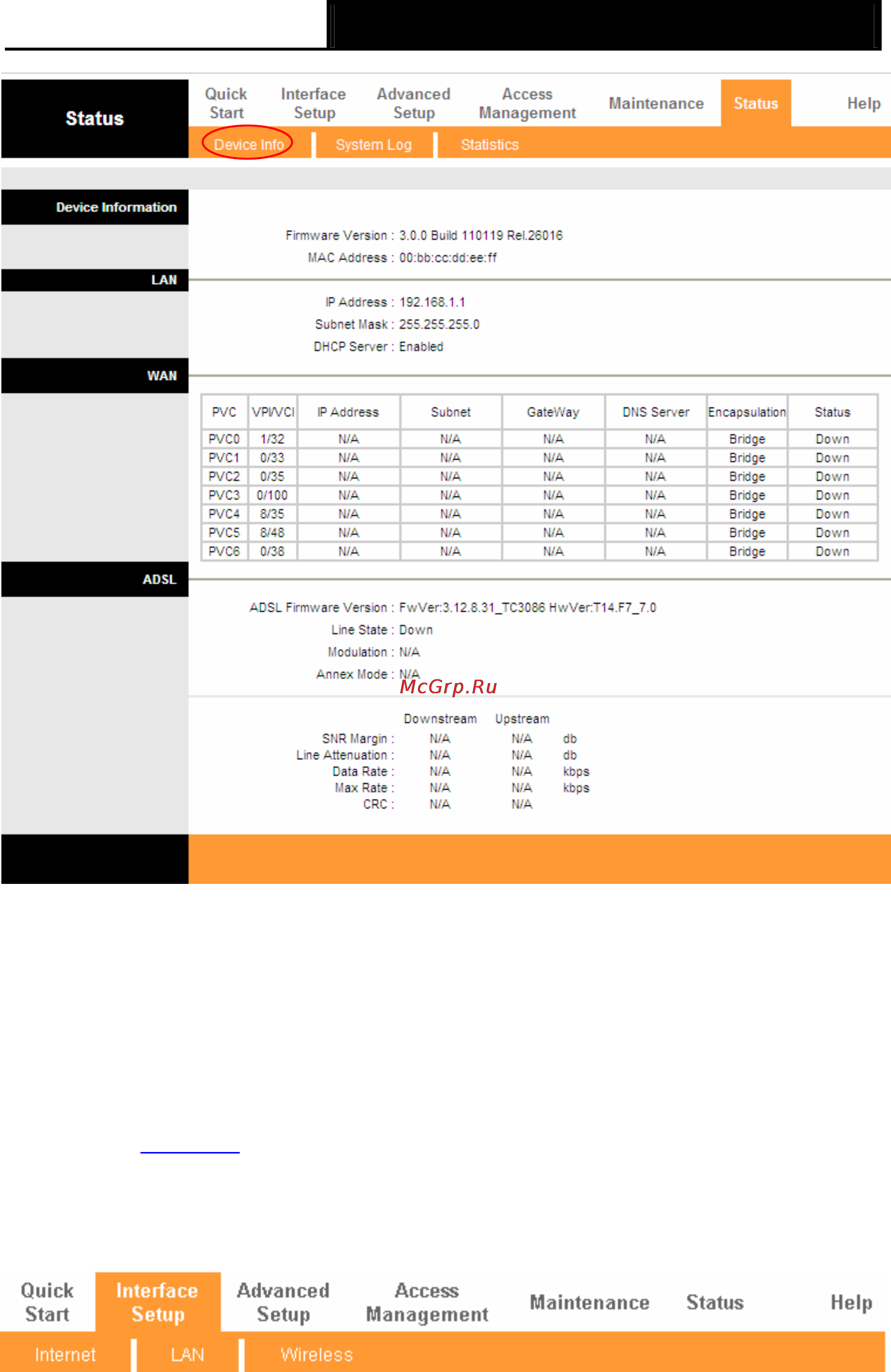

Figure 4-2
)
Note:
Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the
system log and traffic statistics about the Router.
4.2 Quick Start
Please refer to "3.2 Login".
4.3 Interface Setup
Choose “Interface Setup”, you can see the next submenus: Internet and LAN and Wireless.
Figure 4-3
Click any of them, and you will be able to configure the corresponding function.
