TD-W8101G 54Mbps Wireless ADSL2+ Modem Router User Guide
53
Figure 4-50
4.6.5 Diagnostics

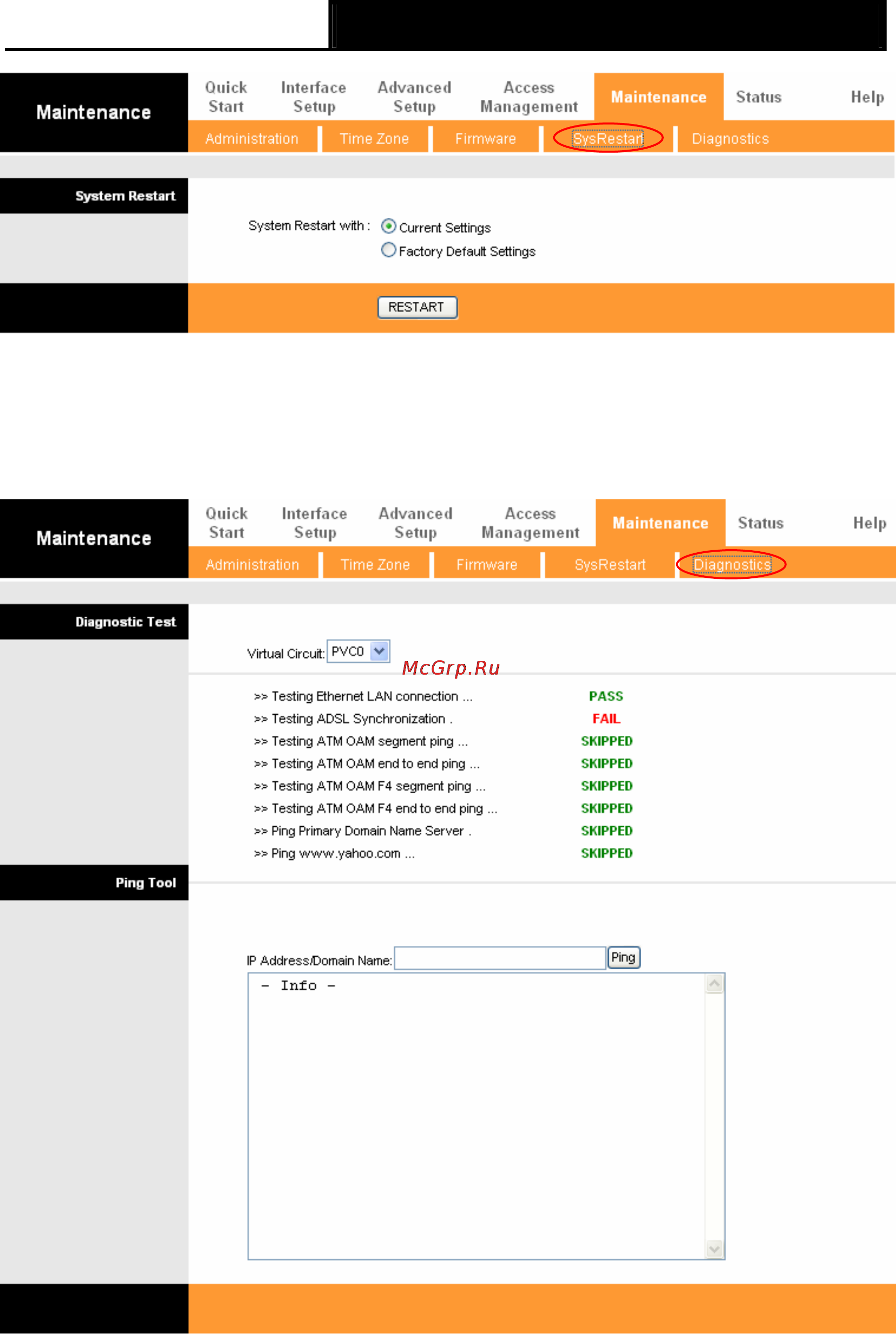

Choose “Maintenance→Diagnostics”, you can view the test results for the connectivity of the
physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-51).
Figure 4-51
Ping Tool: This diagnostic tool troubleshoots connectivity, reachability, and name resolution to a
given host or gateway.
¾ IP Address/Domain Name: Type the destination IP address (such as 202.108.22.5) or
Domain name (such as http://www.tp-link.com).
