TD-W8101G 54Mbps Wireless ADSL2+ Modem Router User Guide

Then you can configure the specific rule for the example.

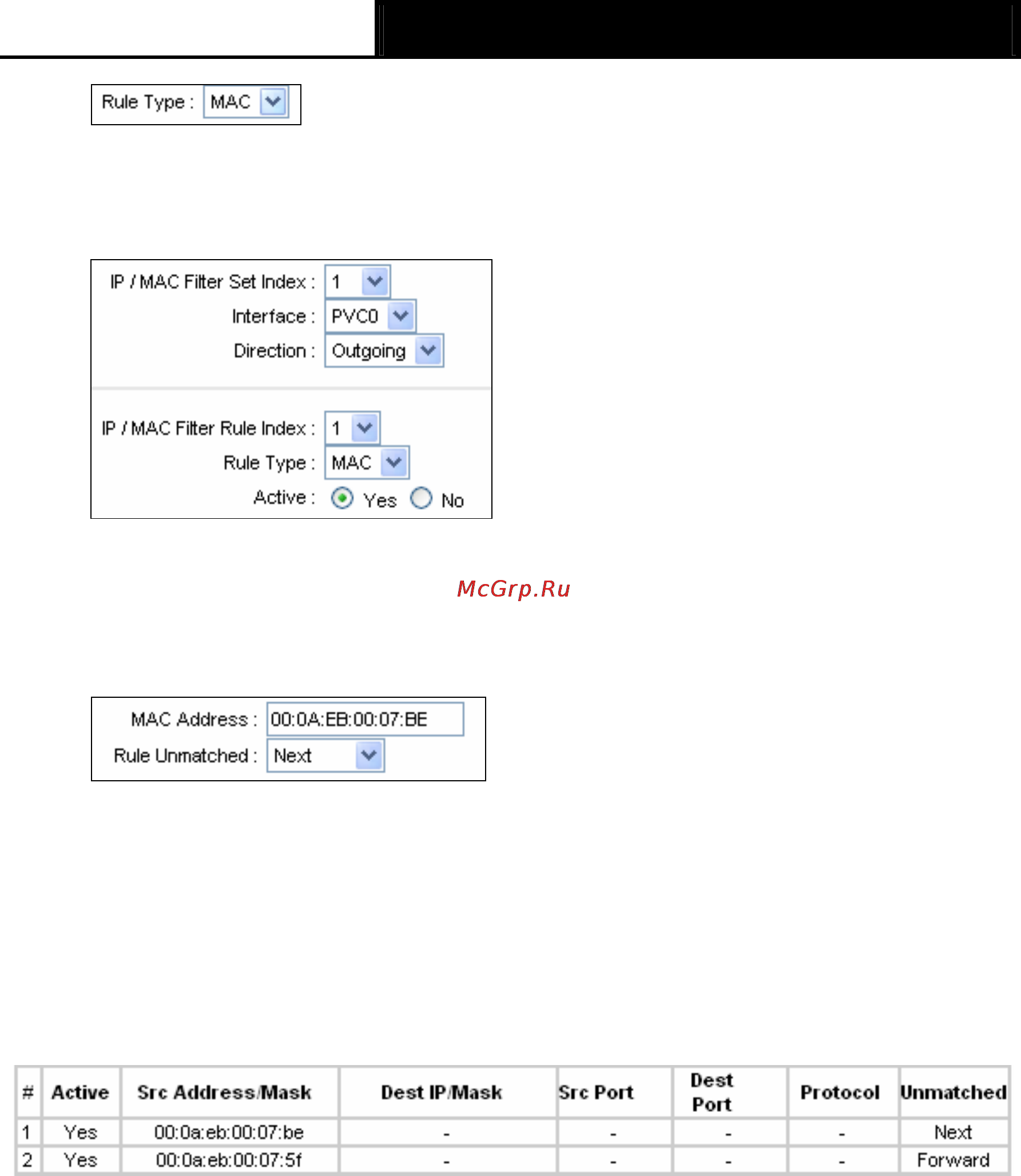

Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then

select the Interface “PVC0”, and select the Direction “Outgoing” for the first rule.

)

Note:

If you want to make the rule take effect, please select

Yes

to active the rule.

Step 3: Enter the “MAC Address” and select the Unmatched rule as “Next”.

Step 4: Finally, click the SAVE to save the entry.

Step 5: Go to Step 2 to configure the next rule: Block the PC with MAC address

00-0A-EB-00-07-5F to access the Internet.

)

Note:

After you complete the MAC filter rules for the example, the Filter list will show as follows. You can

enter the IP / MAC Filter Set Index to view the information about the rule.

Other operations for the entries as shown in Figure 4-34:

Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to view or modify the entry.

Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to locate the specific rule, and

then click the DELETE button to delete the entry.

4.5.2.3 Application Filter

Select Application Filter as the Filter type (shown in Figure 4-36), and then you can configure the

filter rules based on application.
