TD-W8901GB 54M Wireless ADSL2+ Modem Router User Guide

2.2 The Back Panel

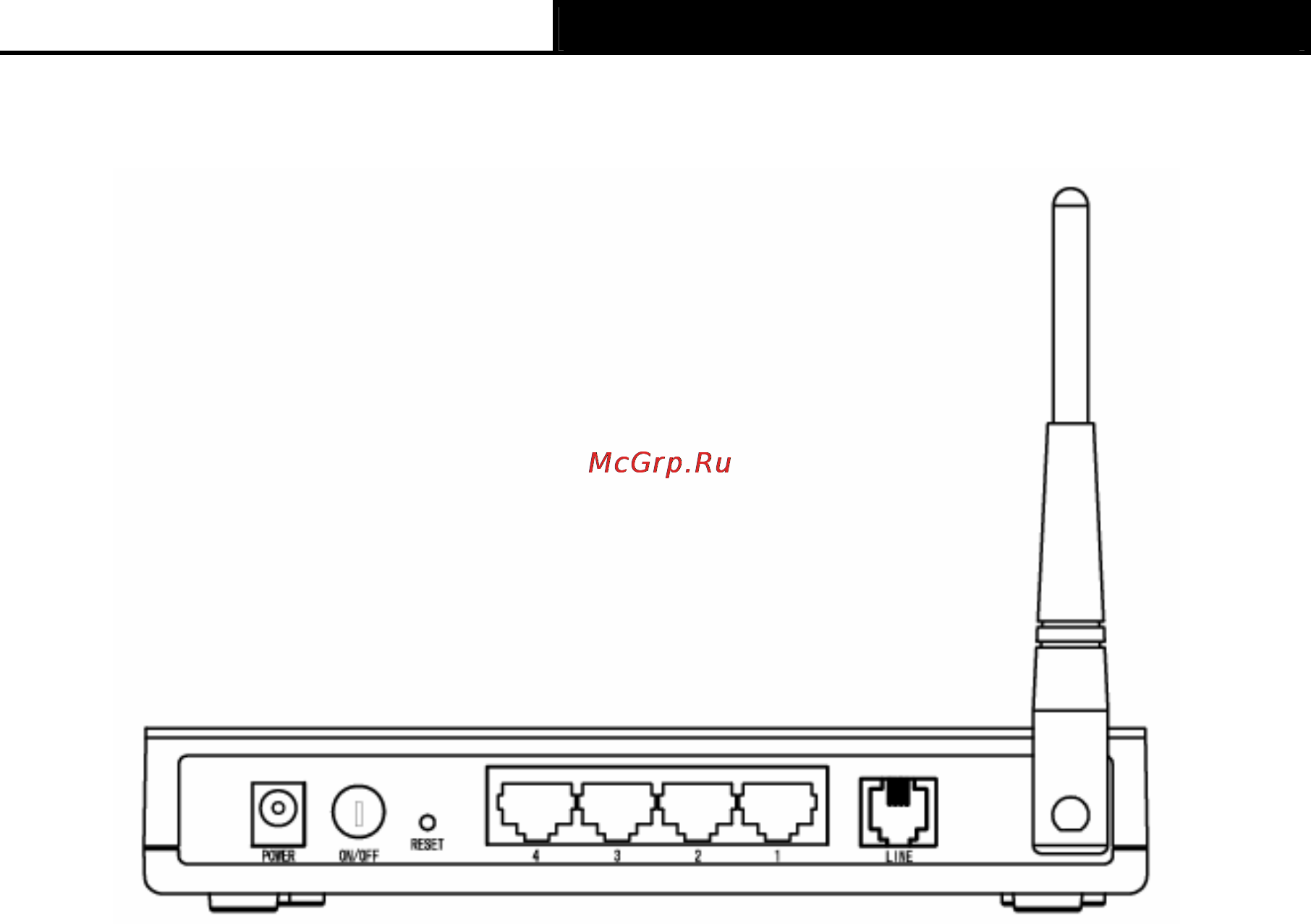

Figure 2-2

¾ POWER: The Power plug is where you will connect the power adapter.

¾ RESET: There are two ways to reset the Router's factory defaults.

Method one: With the Router powered on, use a pin to press and hold the Reset button for at

least 5 seconds. And the Router will reboot to its factory default settings.

Method two: Restore the default setting from “Maintenance-SysRestart” of the Router's

Web-based Utility.

¾ 1, 2, 3, 4 (LAN): Through the port, you can connect the Router to your PC or the other

Ethernet network devices.

¾ LINE: Through the port, you can connect the router with the telephone. Or you can connect

them by an external separate splitter. For details, please refer to 2.4.

¾ Antenna: Used for wireless operation and data transmit.

2.3 Installation Environment

¾ The Product should not be located where it will be exposed to moisture or excessive heat.

¾ Place the Router in a location where it can be connected to the various devices as well as to

a power source.

¾ Make sure the cables and power cord are safely placed out of the way so they do not create a

tripping hazard.

¾ The Router can be placed on a shelf or desktop.

¾ Keep away from the strong electromagnetic radiation and the device of electromagnetic

sensitive.
