TD-W8901GB 54M Wireless ADSL2+ Modem Router User Guide
58

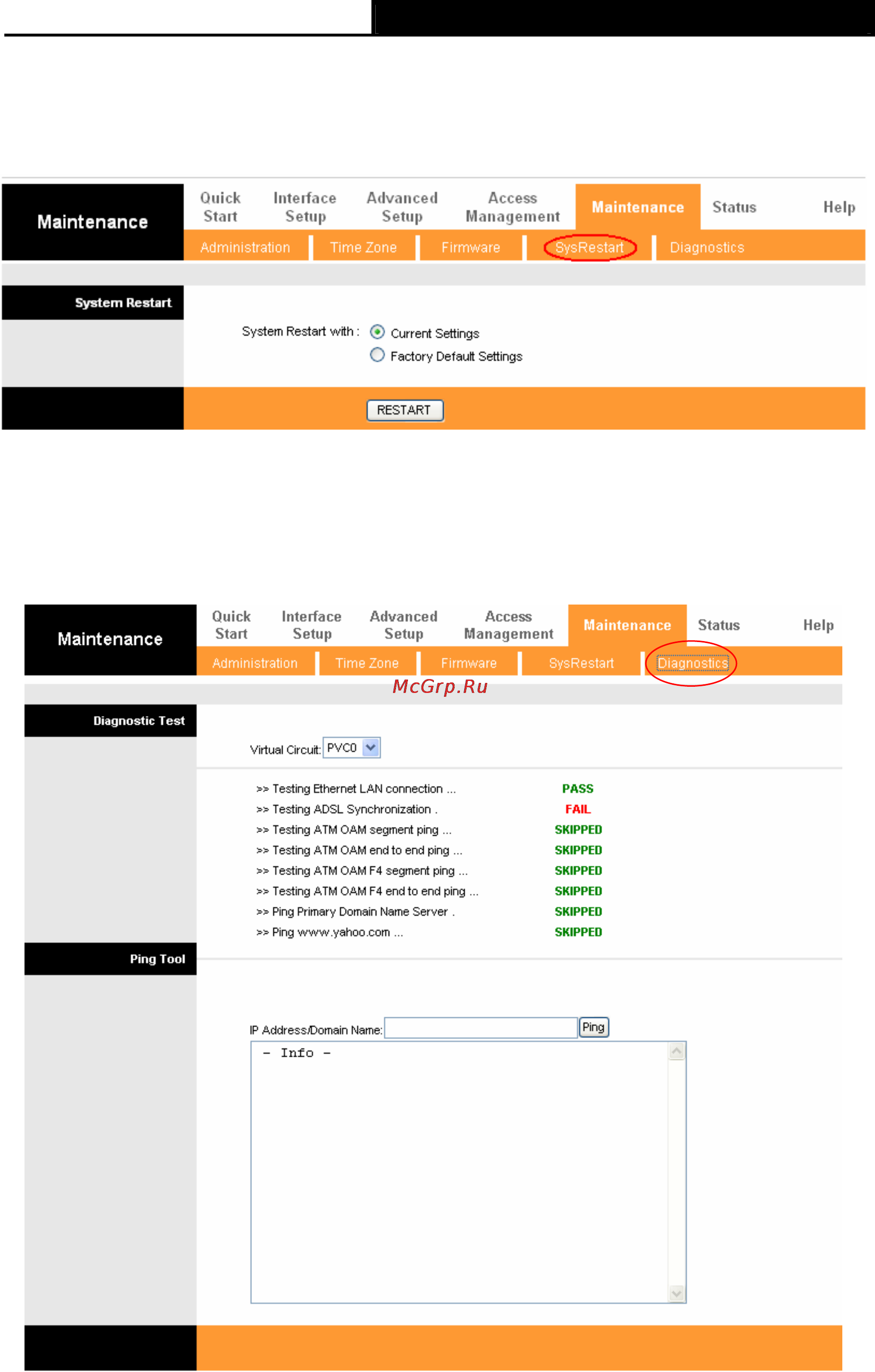

4.6.4 System Restart
Choose “Maintenance→System Restart”, you can select to restart the device with current
settings or restore to factory default settings in the screen (shown in Figure 4-50).
Figure 4-50
4.6.5 Diagnostic
Choose “Maintenance→Diagnostic”, you can view the test results for the connectivity of the
physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-51).
Figure 4-51
