TL-R4299G Dual-WAN SMB Broadband Router User Guide
36

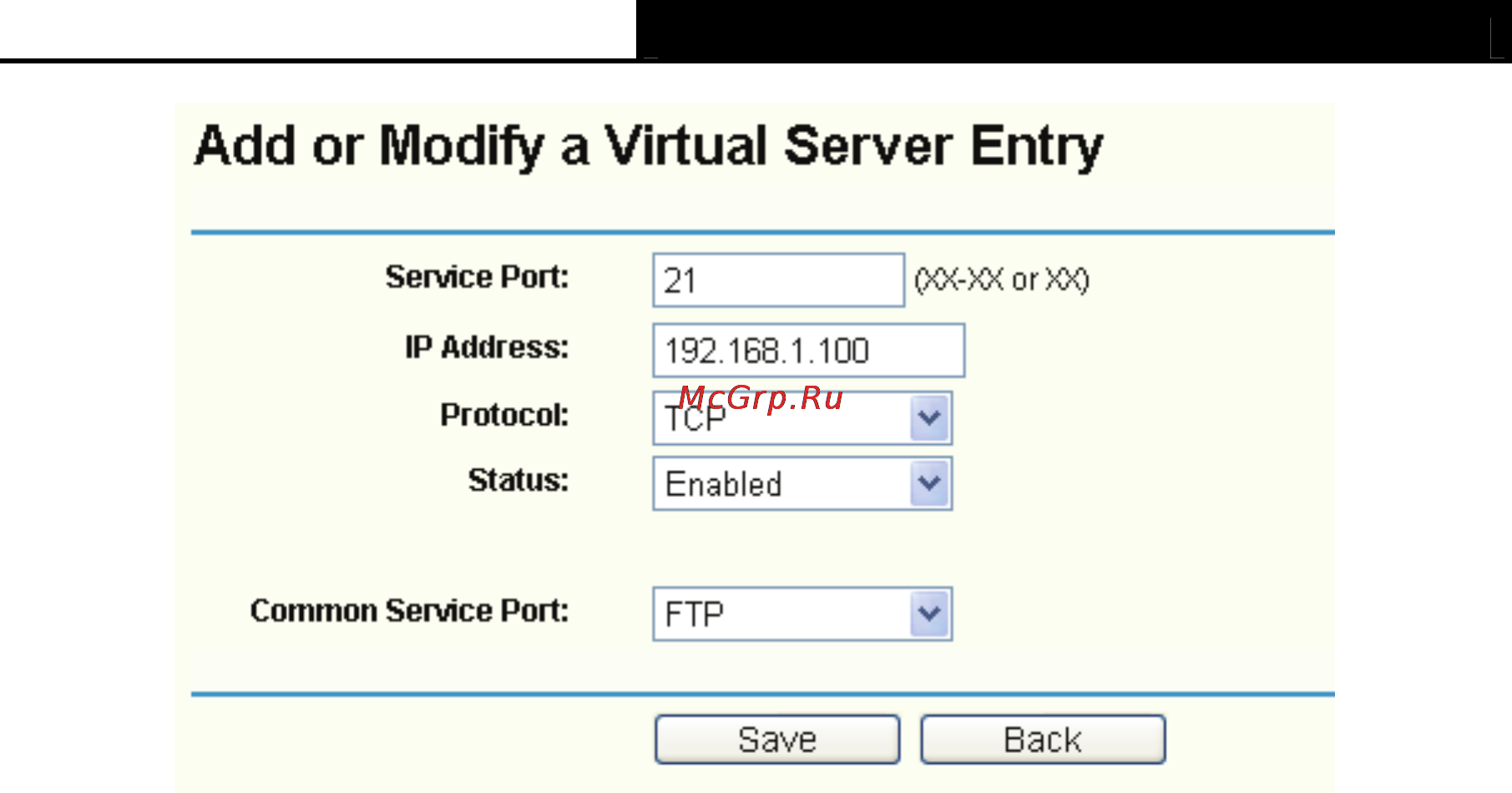

Figure 4-24
Step 3: After that, select Enable to make the entry take effect.
Step 4: Click Save button to save the configuration.
)
Note:
6) If you want to add more than one reserved IP, please go to step 1 to continue.
7) It is possible that you configure more than one type of available service on a computer or
server, it means the IP addresses for the virtual servers are same.
Other configurations for the entries as shown in Figure 4-24:
C
lick the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next button to
view the information in the next screen.
)
Note:
If you set the virtual server of the service port as 80, you must set the web management port on
System Tools –> Remote Management screen to be any value except 80 such as 8080. Or else
there will be a conflict to disable the virtual server.
4.5.2 Port Triggering
Choose menu “Forwarding→Port Triggering”, you can view and add port triggerings in the next
screen (shown in Figure 4-25).
Some applications requir
e multiple connections, like Internet games, video conferencing, Internet
calling and so on. These applications cannot work with a pure NAT router. Port Triggering is used
for some of these applications that can work with an NAT router.
