TL-R4299G Dual-WAN SMB Broadband Router User Guide
3
The front panel contains the following features. (Viewed from left to right)
¾ Reset: Use the button to restore the router to the factory defaults.
There are two ways to reset the router:
Method one: Use the Factory Defaults function on System Tools -> Factory Defaults page in
the router's Web-based Utility.
Method two: Use the Factory Default Reset button. First, turn off the router's power. Second,
press the default reset button, then turn on the router's power, and hold the reset button until the
M1 and M2 LED flash simultaneously (about 3 seconds). At last, release the reset button and wait
for the router to reboot.
)
Note:
Ensure the router is powered on before it restarts completely.
¾ WAN: Two RJ45 port for connecting the router to a cable, DSL modem or Ethernet
¾ LAN: Eight 10/100/1000Mbps RJ45 port for connecting the router to the local PCs

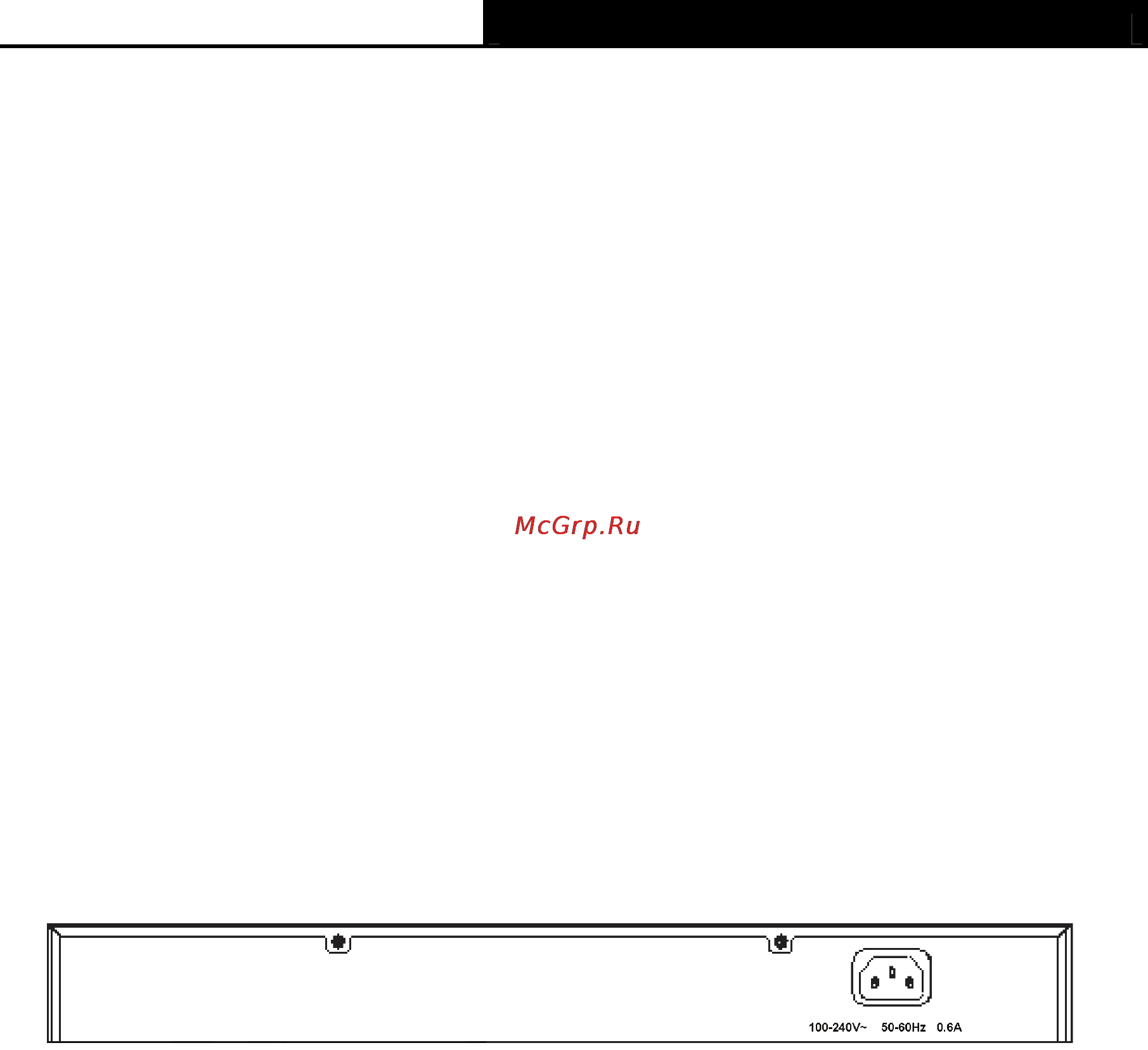

2.1.2 The Rear Panel
The rear panel of the TL-R4299G only features a power receptacle, which is an AC power
receptacle. Connect the female of the power cord head here, and the male head to the AC power
outlet.
Figure 2-2
2.2 System Requirements
¾ Broadband Internet Access Service (DSL/Cable/Ethernet)
¾ One DSL/Cable modem that has an RJ45 connector (It’s not necessary if you connect the
router to Ethernet)
¾ Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45
connectors
¾ TCP/IP protocol must be installed on each PC
¾ Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later
2.3 Installation Environment Requirements
¾ Not in direct sunlight or near a heater or heating vent
¾ Not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space on all sides
of the router
¾ Well ventilated (especially if it is in a closet)
¾ Operating temperature: 0℃~40℃ (32℉~104℉)
