TL-R4299G Dual-WAN SMB Broadband Router User Guide

4.12.6 Port VLAN

Choose menu “Switch Setting→Port VLAN”, you can view and configure the VLAN table.

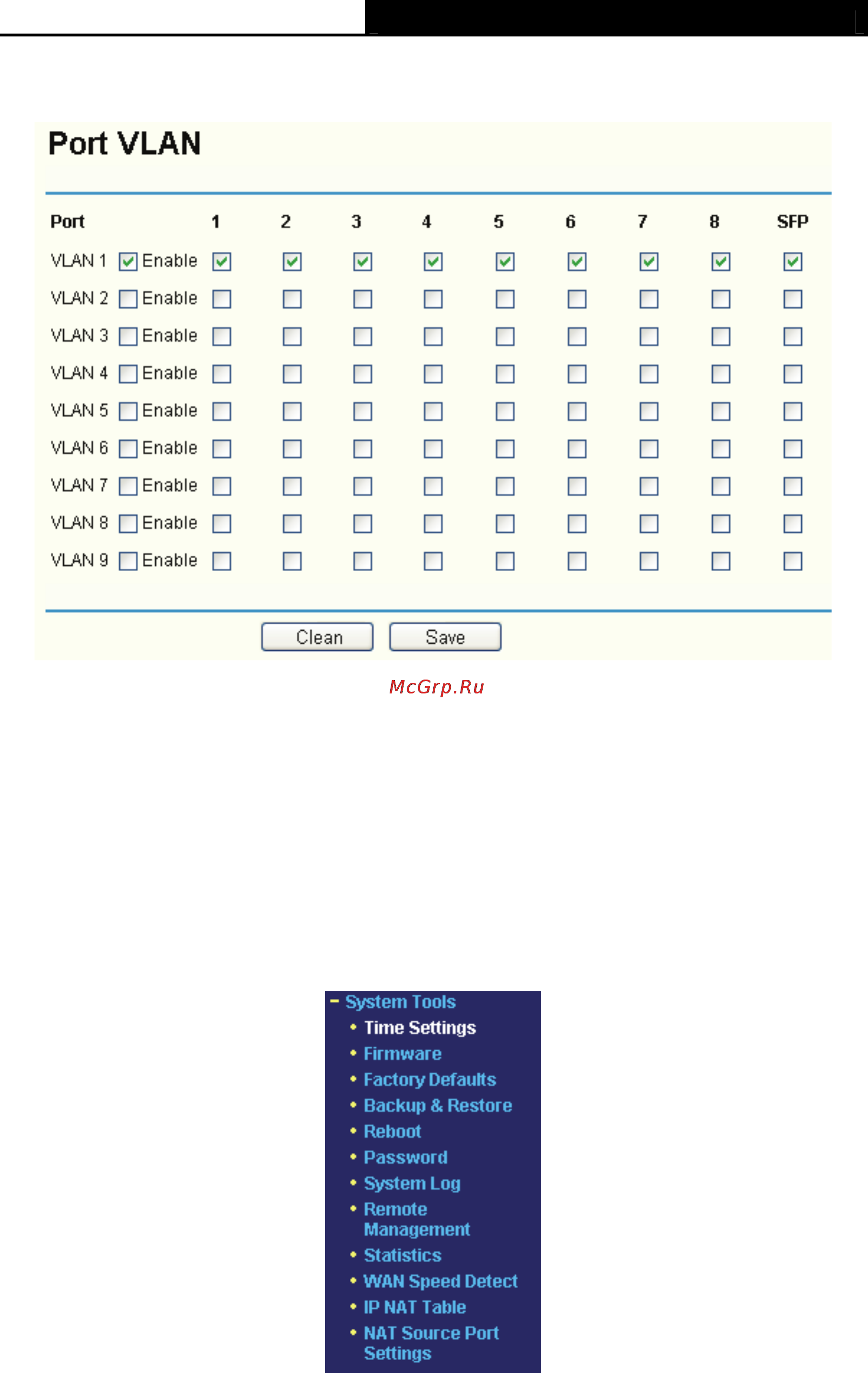

Figure 4-65

¾ Port - You can select them as the members of VLAN.

¾ Enable - This used to enable the corresponding VLAN configuration.

¾ Clean - Click this button, you can make all the entries Disabled.

¾ Save - Click this button, the Router will make a new VLAN table according to the current

configuration, and the enabled VLAN will take effect.

4.13 System Tools

Choose menu “System Tools”, you can see the submenus under the main menu:

Figure 4-66
