TL-R480T SMB Broadband Router User Guide

Figure 4-58

¾ Mirror Config - There are three Mirror modes: Disable, Output mirror, Input mirror. The

Output/Input mirror is related to the Router.

¾ Port Mirror - This is the port linked to the mirror computer.

¾ Mirrored Ports List - The option used to select ports to be mirrored.

)

Note:

You should make sure that the Mirror Port and the Mirrored Ports are in the same VLAN.

4.12.3 Port Rate Control

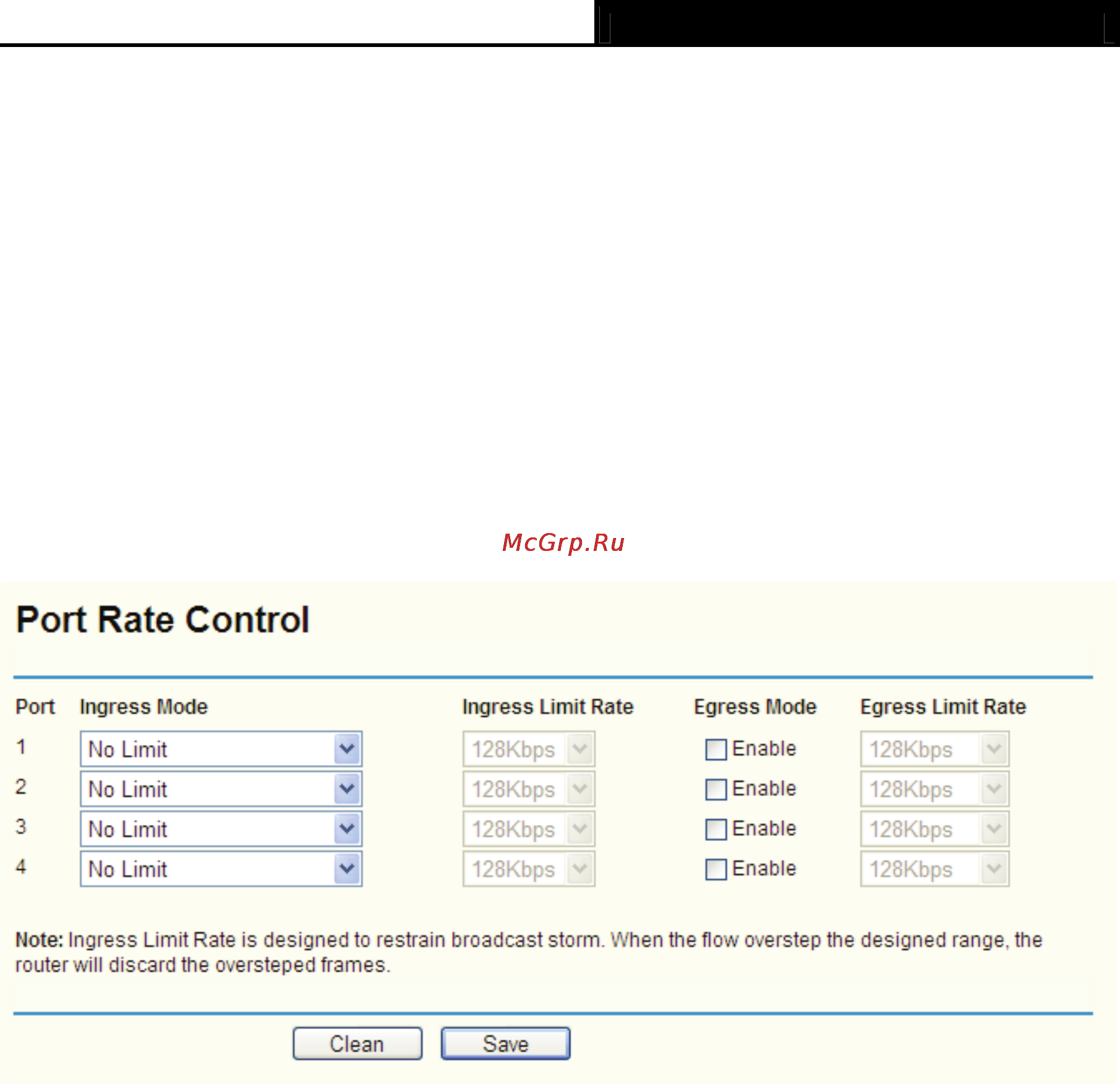

Choose menu “Switch Setting→Port Rate Control”, you can control the ingress and egress rate

for the LAN port in the next screen (shown in Figure 4-59).

Figure 4-59

4.12.4 Port Parameter

Choose menu “Switch Setting→Port Parameter”, you can configure the parameters for the LAN

port in the next screen (shown in Figure 4-60).
