TL-R480T SMB Broadband Router User Guide
2
¾ Supports firmware upgrade
¾ Supports Remote and Web management
1.3 Conventions
Parameters provided in the pictures are just references for setting up the product, which may
differ from the actual situation.
You can set the parameters according to your demand.
Chapter 2. Hardware installation
2.1 Panel Layout
2.1.1 The Front Panel
The Router’s LEDs are located on the front panel (View from left to right).

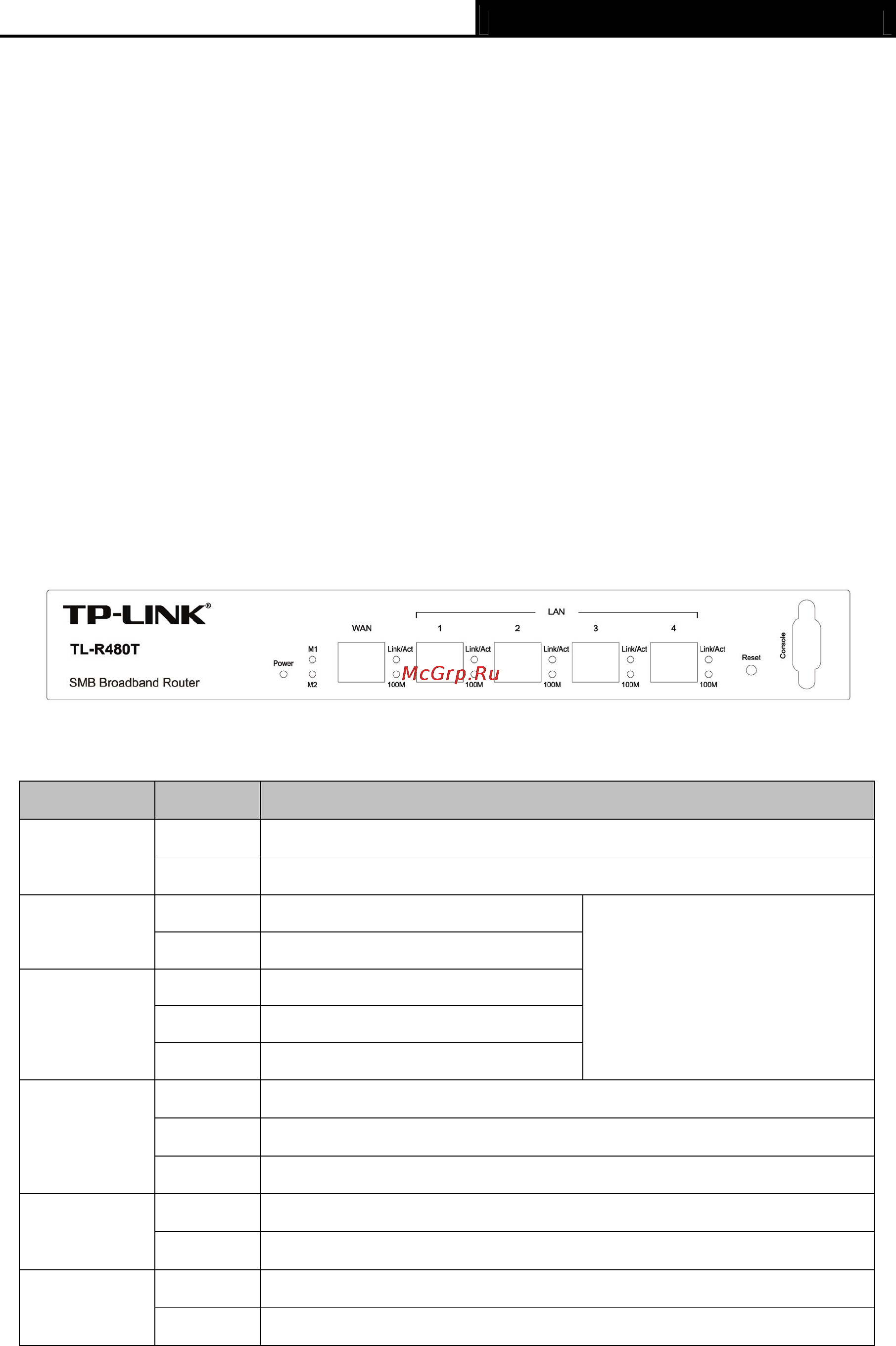

Figure 2-1
LED Descriptions:
Name Action Indication
Not lit The router is power off
Power
Lit up The router is power on
Not lit The router works properly
M1
Lit up The router has a hardware error
Not lit The router has a hardware error
Lit up The router has a hardware error
M2
Flashing The router works properly
When M1 and M2 are
flashing synchronously, the
router is restoring the
factory default settings.
Not lit There is no device linked to the corresponding port
Lit up There is a device linked to the corresponding port but no activity
WAN/LAN
(Link/Act)
Flashing There is an active device linked to the corresponding port
Not lit The linked device is running at 10Mbps
100M(WAN)
Lit up The linked device is running at 100Mbps
Not lit The linked device is running at 10Mbps or 100Mbps
1000M(LAN)
Lit up The linked device is running at 1000Mbps
The front panel contains the following features. (Viewed from left to right)
¾ Reset: Use the button to restore the router to the factory defaults.
