DES-1210G Fast Ethernet/Gigabit Ethernet Switch User’s Guide
22

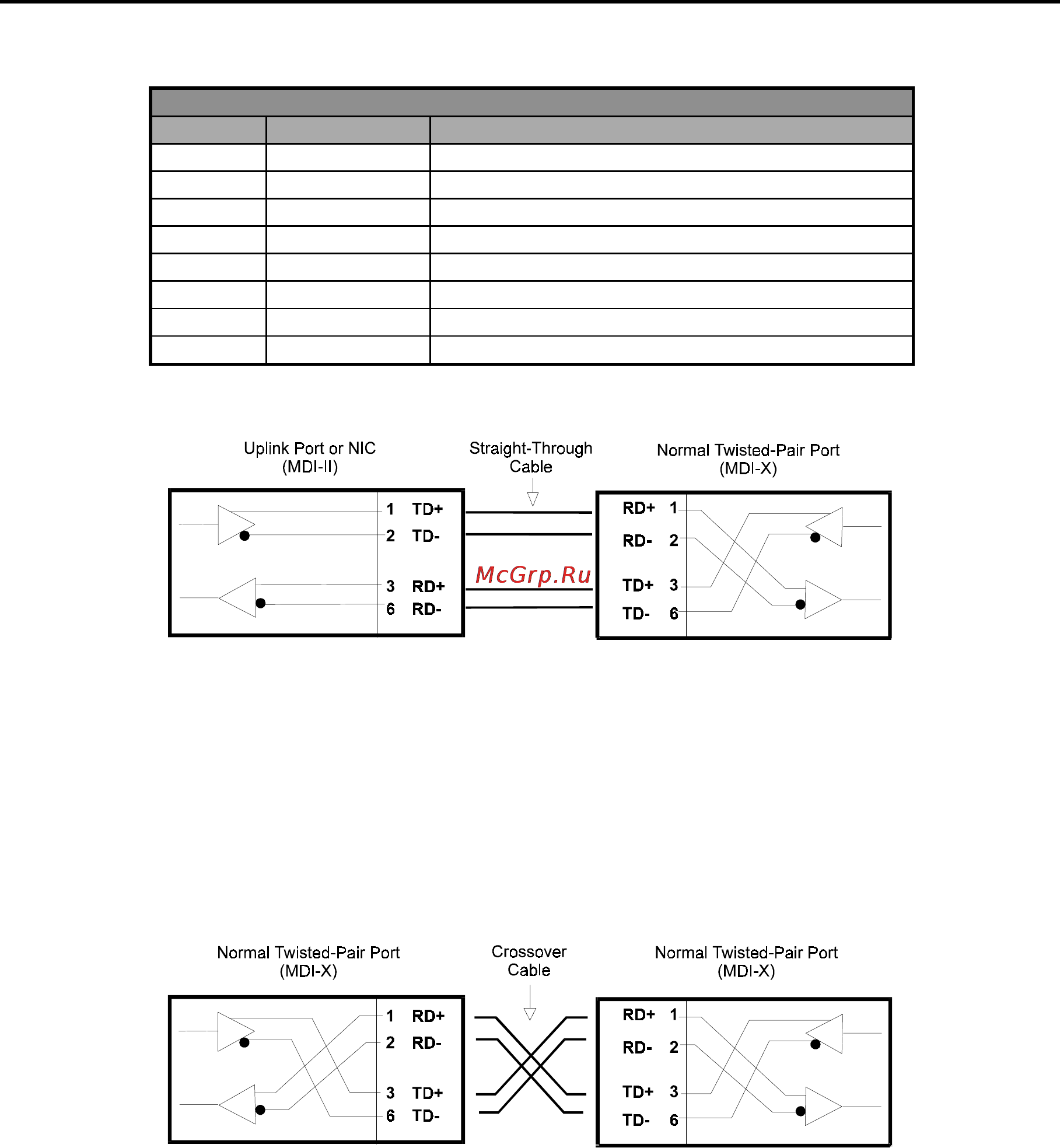

RJ-45 Pin Assignments
Contact MDI-X Port MDI-II Port
1 RD+ (receive) TD+ (transmit)
2 RD- (receive) TD- (transmit)
3 TD+ (transmit) RD+ (receive)
4 Not used Not used
5 Not used Not used
6 TD- (transmit) RD- (receive)
7 Not used Not used
8 Not used Not used
The standard RJ-45 pin assignments
Straight cable for use with MDI-II to MDI-X connections
With a crossover cable, two pairs of wires are switched at one connector end. Carry out the
following steps to create a customized, crossover twisted-pair cable:
1. Leave one end of the cable as is, with the RJ-45 connector intact. The wiring at just one
end of the cable needs to be modified.
2. At the other end of the cable, connect wires 1 and 2 to contacts 3 and 6, respectively.
Likewise, connect wires 3 and 6 to contacts 1 and 2. Refer to the following diagram:
Crossover cable for use with MDI-X to MDI-X and/or MDI-II to MDI-II connections
