D-Link DGS-1016TL/DGS-1024TL Gigabit Ethernet Switch

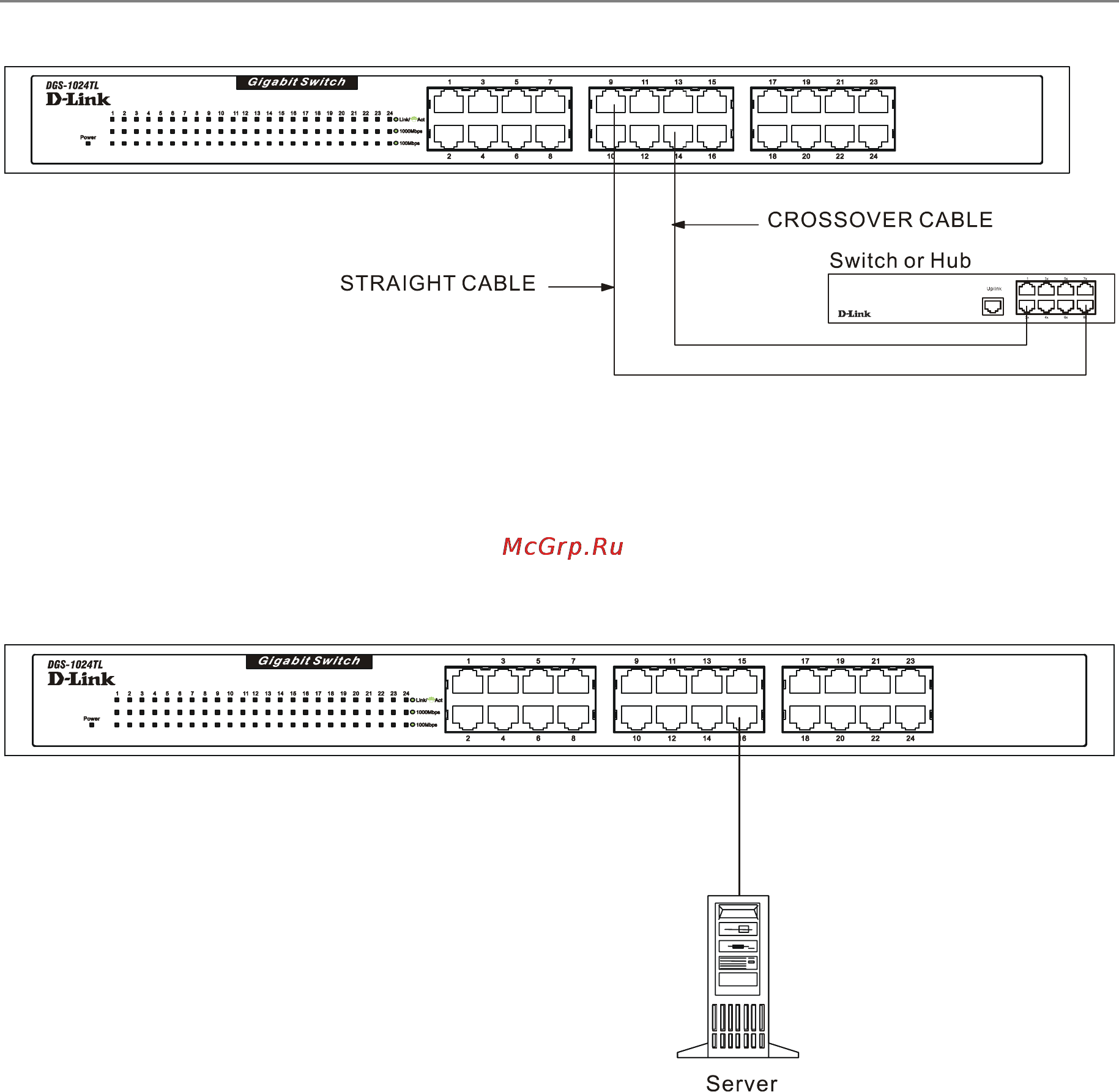

Figure 3-2. Switch connected to a port on a hub or switch using either a straight-through or
crossover cable–any standard Ethernet cable is fine
Connecting To Network Backbone or Server
A valid connection is indicated when the Link LED is lit.
Figure 3-3. Connecting to a server
9
