D-Link DGS-1016TL/DGS-1024TL Gigabit Ethernet Switch

Switch Description

The 16-Port/24-Port 1000BASE-T Gigabit Ethernet Switch was designed for easy installation and high

performance in an environment where traffic on the network and the number of users increase continuously.

Features

• 16 or 24 10/100/1000BASE-T Gigabit Ethernet ports.

• Supports Auto-Negotiation for speed and duplex mode.

• Supports Auto-MDIX for each port.

• Full/half duplex transfer mode for 10Mbps and 100Mbps.

• Full duplex transfer mode for 1000Mbps.

• Store-and-Forward switching method.

• IEEE 802.3x flow control for full-duplex mode.

• Backpressure flow control for half-duplex mode.

• Integrated address Look-Up Engine, supports 4K absolute MAC addresses.

• Supports 2M bits data buffer per device.

• Extensive front-panel diagnostic LEDs.

Front-Panel Components

The front panel of the Switch consists of LED indicators and either 16 or 24 (10/100/1000 Mbps) Gigabit

Ethernet ports.

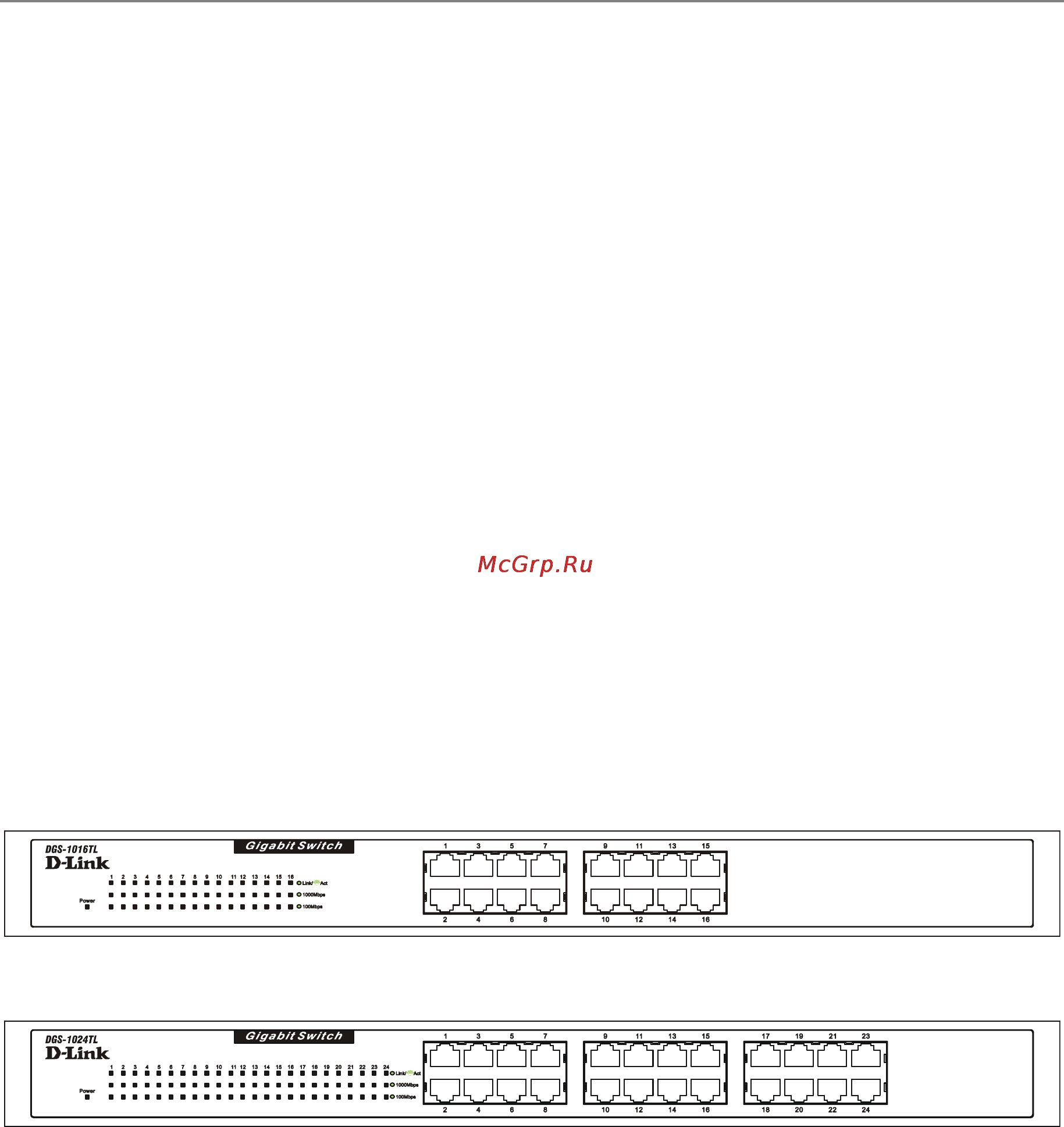

Figure 1-1A. Front Panel View of the DGS-1016TL

Figure 1-2B. Front Panel View of the DGS-1024TL

Comprehensive LED indicators display the status of the Switch and the network.

LED Indicators

The LED indicators of the Switch include Power, Link/Act, 1000Mbps, and 100Mbps. The following shows the

LED indicators for the Switch along with an explanation of each indicator.
