Milliamp Process Clamp Meter
Performance Tests
7
gep02.eps

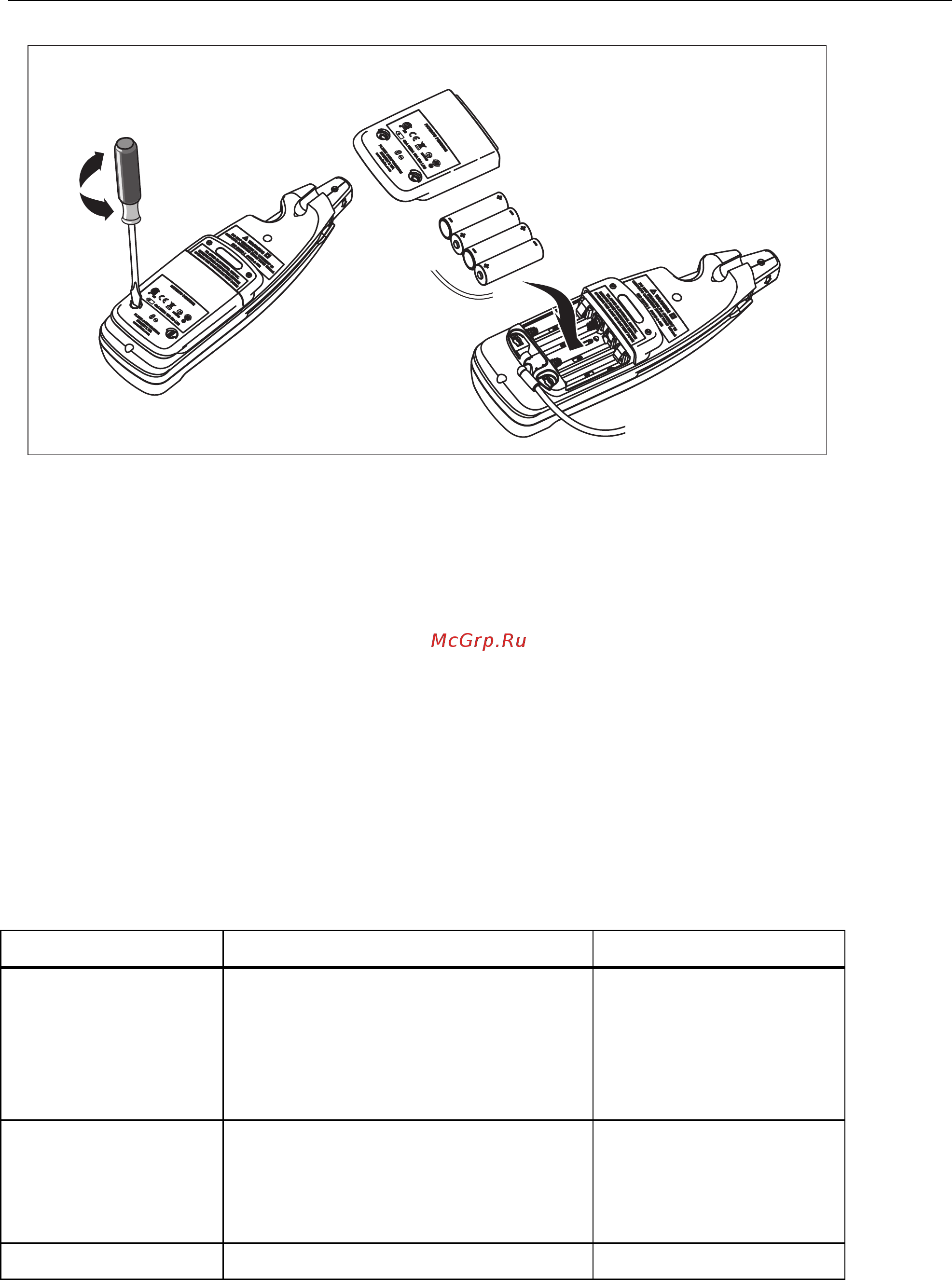

Figure 2. Battery Replacement
Performance Tests
XWWarning
To prevent electrical shock, personal injury, or fire:
• Repairs or Meter servicing must be done only by qualified
personnel.
• Do not do the verification tests or calibration adjustment in
this manual unless qualified.
The tests that follow verify the functions of the Meter. If the Meter fails the verification
tests, repair is necessary. For Meter servicing, see “How to Contact Fluke”.
Required Equipment
Required equipment for the performance tests is in Table 2. If the recommended models
are not available, equipment with equivalent specifications can be used.
Table 2. Required Equipment
Equipment Minimum Required Characteristics Recommended Model
Calibrator DC milliamps:
0-24.00 mA = ±0.073 %
24.0-100.0 mA = ±0.375 %
DC Volts:
0-30.00 V = ±0.267 %
Fluke 55xxA
DMM DC Current:
0-24.00 mA = ±0.375 %
DC Volts:
0-10 V = ±0.1 %
Fluke 88xxA
Lab Supply 6 Vdc ±-0.5 V -
