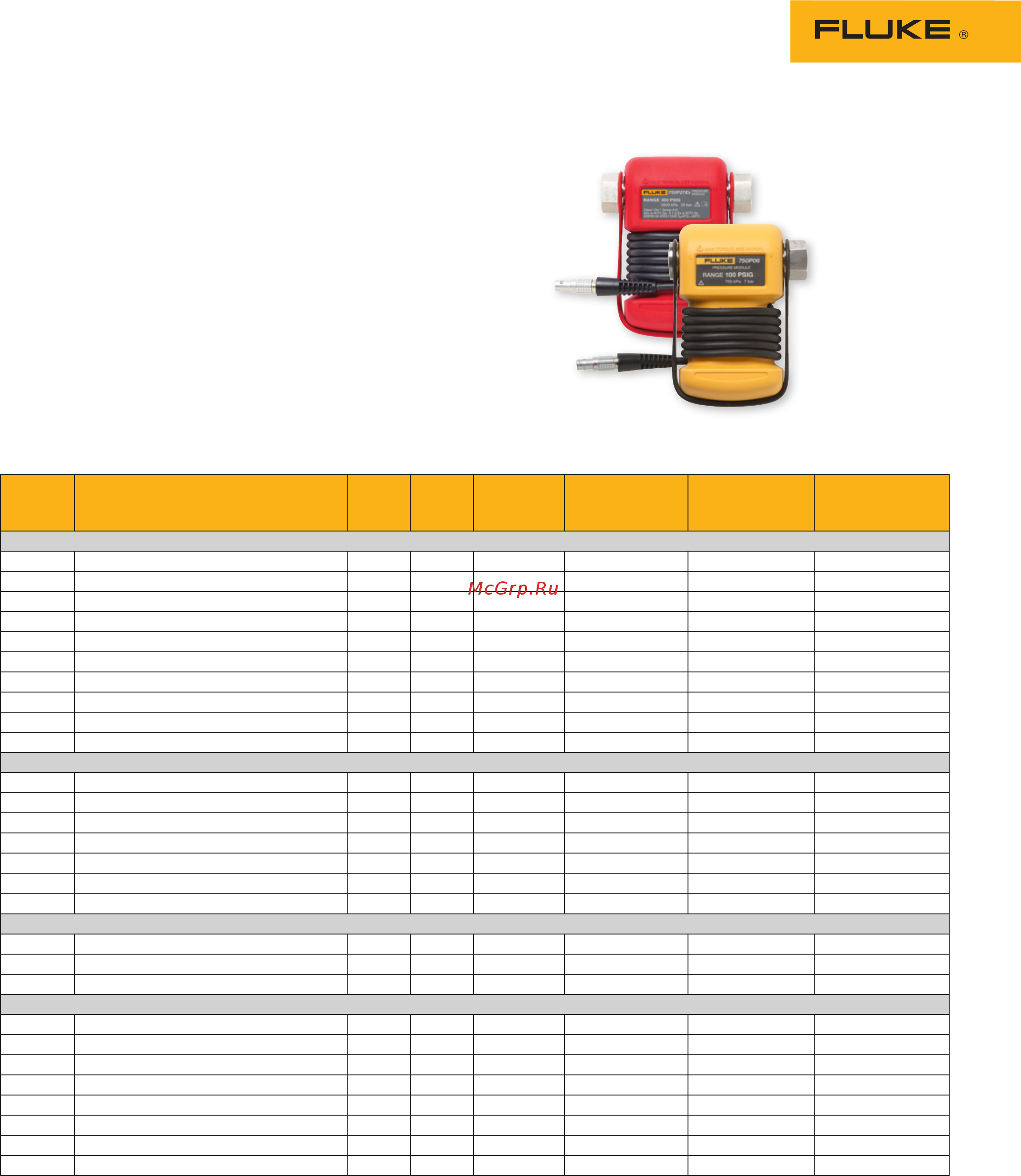

10 Fluke Corporation 750 Series Brochure
Pressure specifications
The Fluke family of 50 pressure modules:
Covers virtually any pressure application including gage, differential,
dual (compound), absolute, and vacuum.
•
Display pressure readings in any of ten different pressure units you
specify in the calibrator setup.
•
Rugged urethane molded cases protect the modules from rough
handling and harsh conditions
•
Features internal temperature compensation from O °C to 50 °C for
full-accuracy performance
•
Includes traceable calibration certificate
•
Modules can be calibrated locally, helping to control costs
Pressure module specifications (all specifications in % of full span. Specifications reflect a confidence interval of 95 %.)
Model Parameter/Range
Hi Side
Media
2
Lo Side
Media
2
Reference
Uncertainty
4
Total Uncertainty
1-year (15-35 �C)
Total Uncertainty
1-year
1
Total Uncertainty
6-month (15-35 �C)
Differential
750P00 0 to 1 in H
2
O (0 to 2.5 mBar) Dry Air Dry Air ± 0.15
% ± 0.3
% ± 0.35
% ± 0.25
%
750P01
6
0 to 10 in H
2
O (0 to 25 mBar) Dry Air Dry Air ± 0.1
% ± 0.2
% ± 0.3
% ± 0.15
%
750P02 0 to 1 psi (0 to 70 mBar) Dry Air Dry Air ± 0.050
% ± 0.1
% ± 0.15
% ± 0.075
%
750P22 0 to 1 psi (0 to 70 mBar) 316 SS Dry Air ± 0.050
% ± 0.1
% ± 0.15
% ± 0.075
%
750P03 0 to 5 psi (0 to 350 mBar) Dry Air Dry Air ± 0.02
% ± 0.04
% ± 0.05
% ± 0.035
%
750P23 0 to 5 psi (0 to 350 mBar) 316 SS Dry Air ± 0.02
% ± 0.04
% ± 0.05
% ± 0.035
%
750P04 0 to 15 psi (0 to 1 bar) Dry Air Dry Air ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P24
6
0 to 15 psi (0 to 1 bar) 316 SS Dry Air ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P3IN 0 to 3 Inch H2O (0 to 7.5 mBar) Dry Air Dry Air ± 0.15 % ± 0.3 % ± 0.35 % ± 0.25 %
750P5IN 0 to 5 Inch H2O (0 to 12.5 mBar) Dry Air Dry Air ± 0.15 % ± 0.3 % ± 0.35 % ± 0.25 %
Gage
750P05
6
0 to 30 psi (0 to 2 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P06
6
0 to 100 psi (0 to 7 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P27
6
0 to 300 psi (0 to 20 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P07 0 to 500 psi (0 to 35 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P08 0 to 1000 psi (0 to 70 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P09
6
0 to 1500 psi (0 to 100 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P2000 0 to 2000 psi (0 to 140 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
High
750P29
6
0 to 3000 psi (0 to 200 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P30 0 to 5000 psi(0 to 340 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
750P31 0 to 10000 psi (0 to 700 bar) 316 SS N/A ± 0.0175
% ± 0.035
% ± 0.045
% ± 0.03
%
Absolute
750PA3 0 to 5 psia (0 to 350 mBar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA4
6
0 to 15 psia (0 to 1 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA5 0 to 30 psia (0 to 2 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA6 0 to 100 psia (0 to 7 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA27 0 to 300 psia (0 to 20 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA7 0 to 500 psia (0 to 35 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA8 0 to 1000 psia (0 to 70 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
750PA9 0 to 1500 psia (0 to 100 bar) 316 SS N/A ± 0.03 % ± 0.06 % ± 0.07 % ± 0.05 %
