D-Link DWL-2000AP+ [14/53] Using the configuration menu
![D-Link DWL-2000AP+ [14/53] Using the configuration menu](/views2/1044289/page14/bge.png)
14
n
Note: if you have changed the default IP Address assigned to the DWL-2000AP+, make
sure to enter the correct IP Address.
Connect to 192.168.0.50
admin

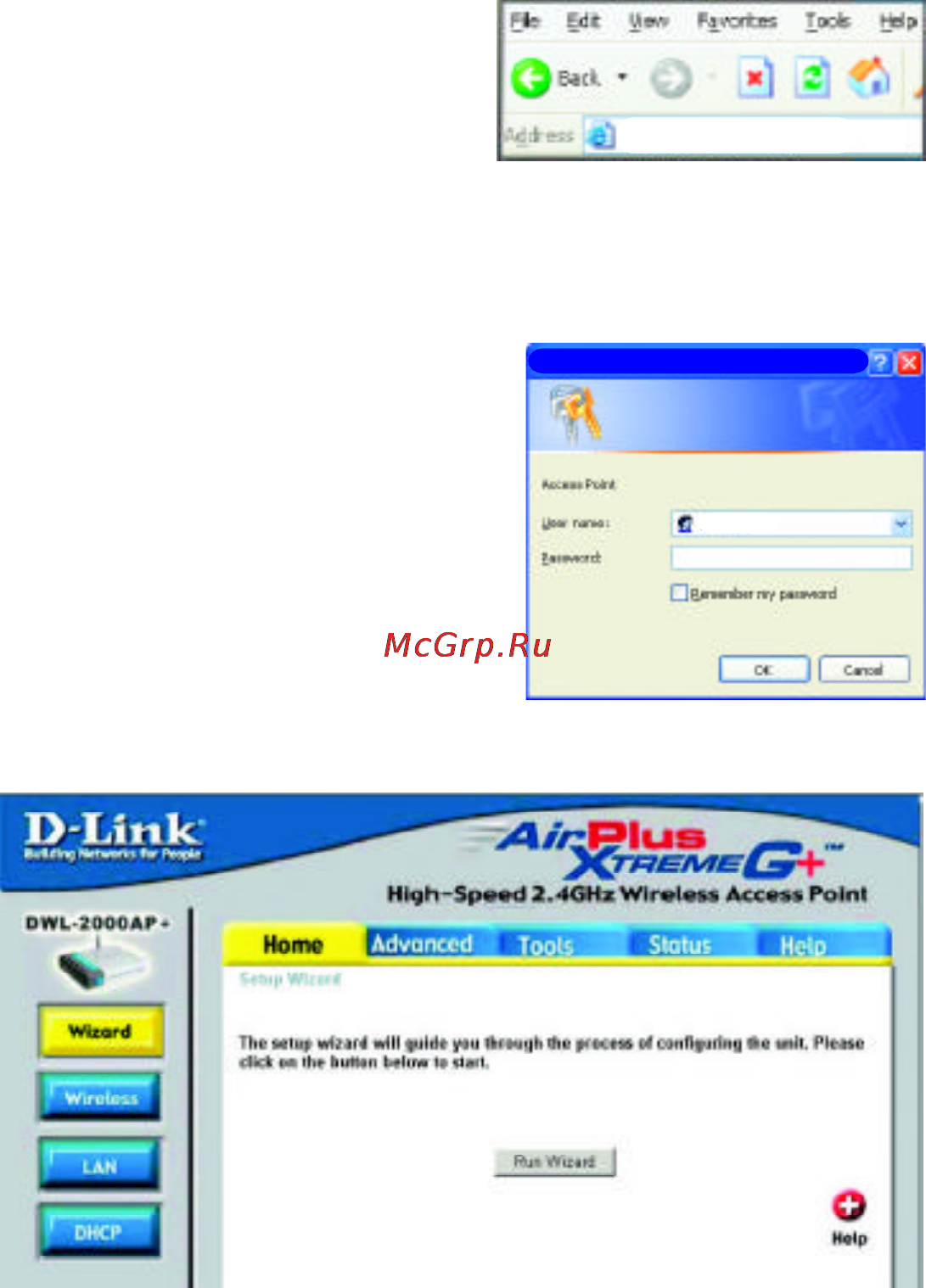

Using the Configuration Menu
Home > Wizard
The Home>Wizard
screen will appear.
Please refer to the
Quick Installation
Guide for more infor-
mation regarding the
Setup Wizard.
After you have completed the Setup Wizard (please see the Quick Installation Guide that
came with the product) you can access the Configuration menu at any time by opening
the web browser and typing in the IP Address of the DWL-2000AP+. The DWL-2000AP+
default IP Address is shown below:
n Open the web browser
n Type in the IP Address of the
Router
http://192.168.0.50
n
n
Type admin in the User Name field
Leave the Password blank.
(However, if you have changed
the password, please enter the
correct password.)
Click OK
