24
Using the Configuration Menu (continued)

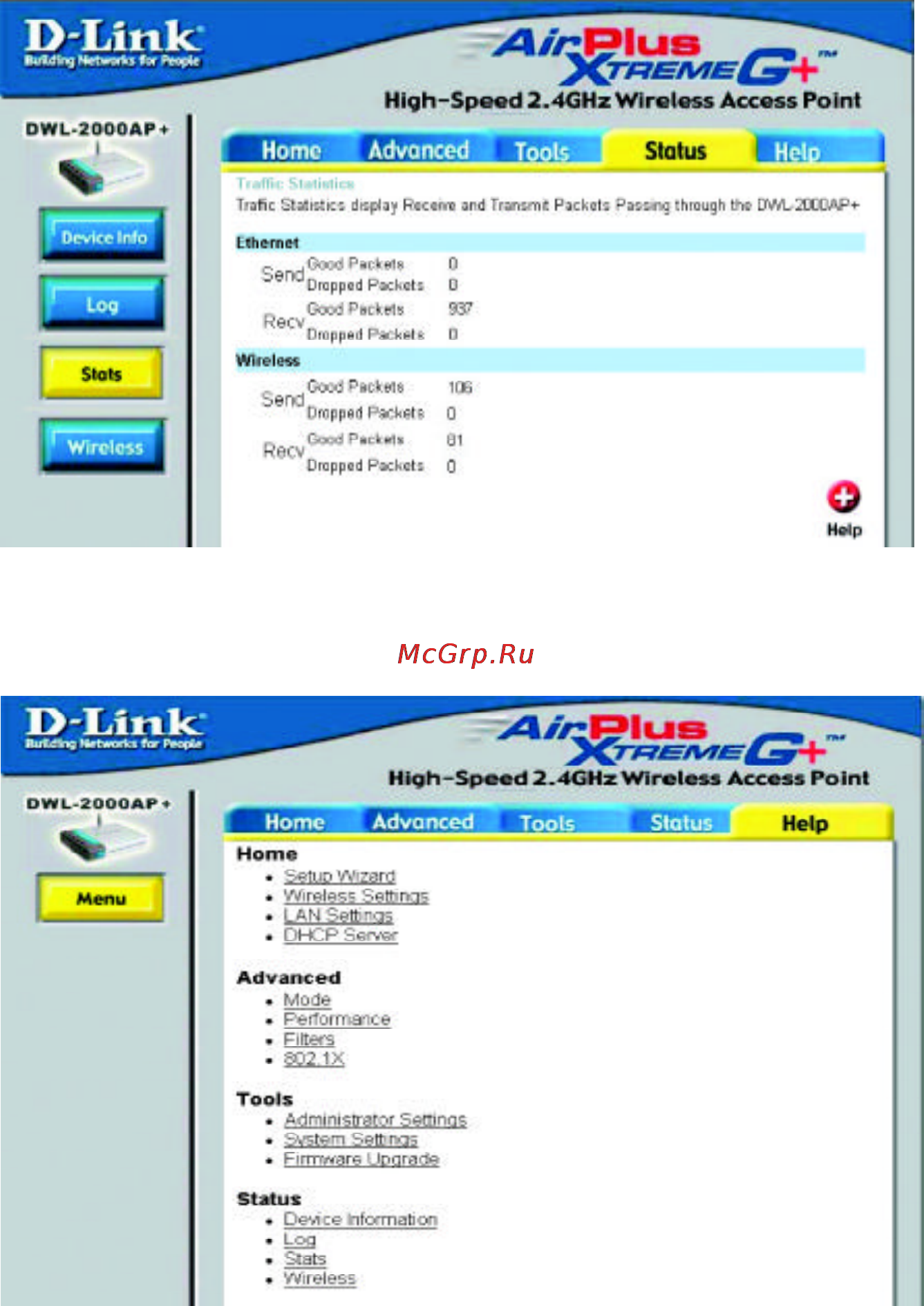

Status > Stats
The screen above displays theTraffic Statistics. Here you can view the amount of pack-
ets that pass through the DWL-2000AP+. The traffic counter will reset if the device is
rebooted.
Help
At the Help screen you can select from Help files displayed above.
