D-Link DWL-2000AP+ [36/53] Networking basics continued assigning a static ip address in windows xp 2000
![D-Link DWL-2000AP+ [36/53] Networking basics continued assigning a static ip address in windows xp 2000](/views2/1044289/page36/bg24.png)
36

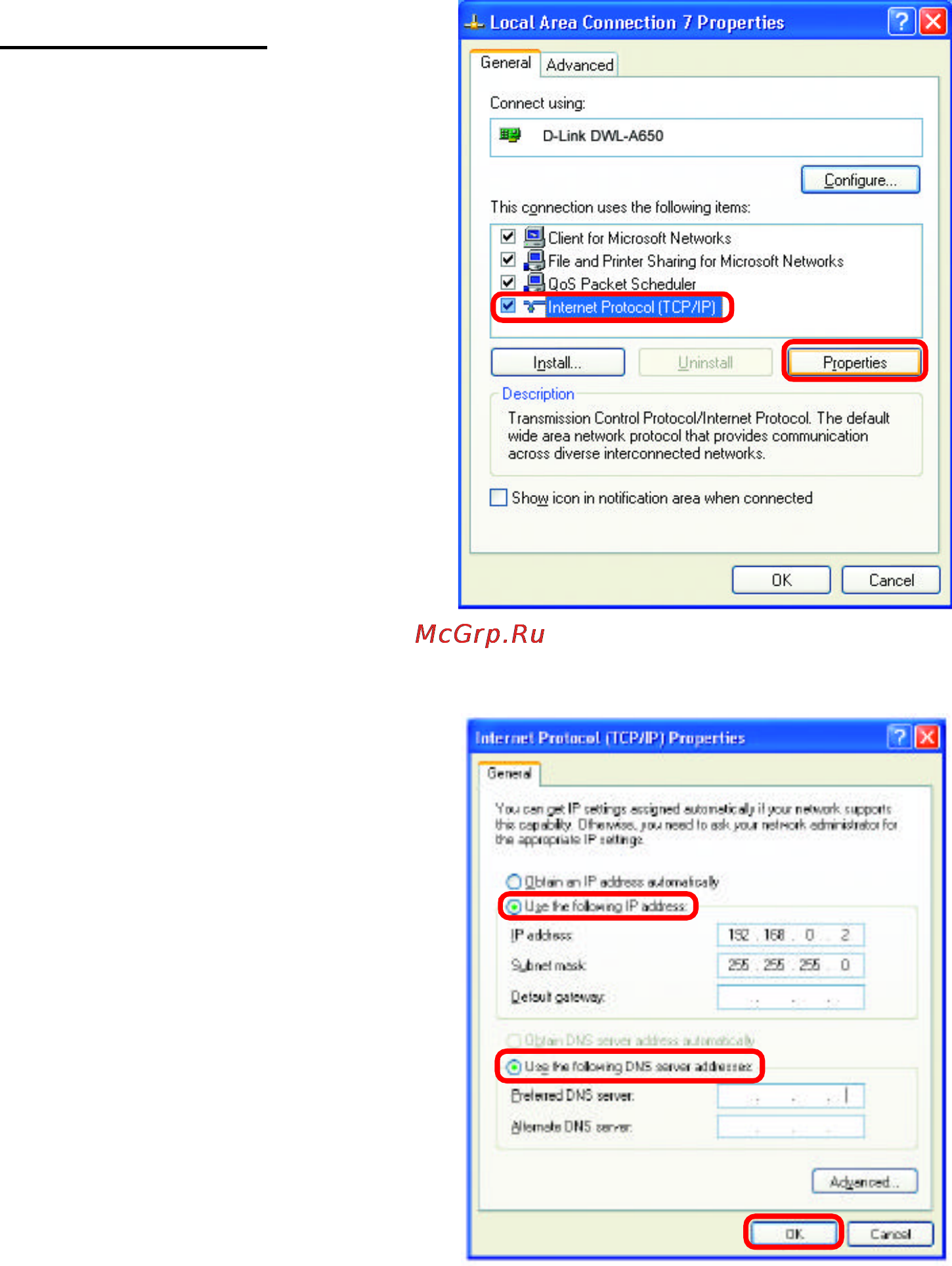

Input your IP Address
and subnet mask. (The
IP Addresses on your
network must be within
the same range. For
example, if one computer
has an IP Address of 192.
168.0.2, the other
computers should have IP
Addresses that are
sequential, like 192.168.0.
3 and 192.168.0.4. The
subnet mask must be the
same for all the
computers on the
network.)
Networking Basics (continued)
Assigning a Static IP Address
in Windows XP/2000
Input your DNS server
addresses. (Note: If
you are entering a DNS
server, you must enter
the IP Address of the
Default Gateway.)
n
The DNS server information will be supplied
by your ISP (Internet Service Provider.)
n
Click OK
Click on Internet
Protocol (TCP/IP)
Click Properties
n
n
n
