D-Link DIR-645 [112/134] Statistics

108D-Link DIR-645 User Manual

Section 3 - Software Conguration

Statistics

In the LAN Statistics section, the user can view the trac statistics that

occurred on the LAN interface. Information that is displayed includes the

packets sent and received, packets dropped, collisions that occurred,

and error packets sent and received.

In the WAN Statistics section, the user can view the trac statistics that

occurred on the WAN interface. Information that is displayed includes

the packets sent and received, packets dropped, collisions that occurred,

and error packets sent and received.

In the Wireless Statistics section, the user can view the trac statistics

that occurred on the Wireless interface. Information that is displayed

includes the packets sent and received, packets dropped, collisions that

occurred, and error packets sent and received.

Click on the Refresh Statistics button to refresh the display page.

Click on the Reset Statistics button to clear all the statistic information

for all the elds displayed.

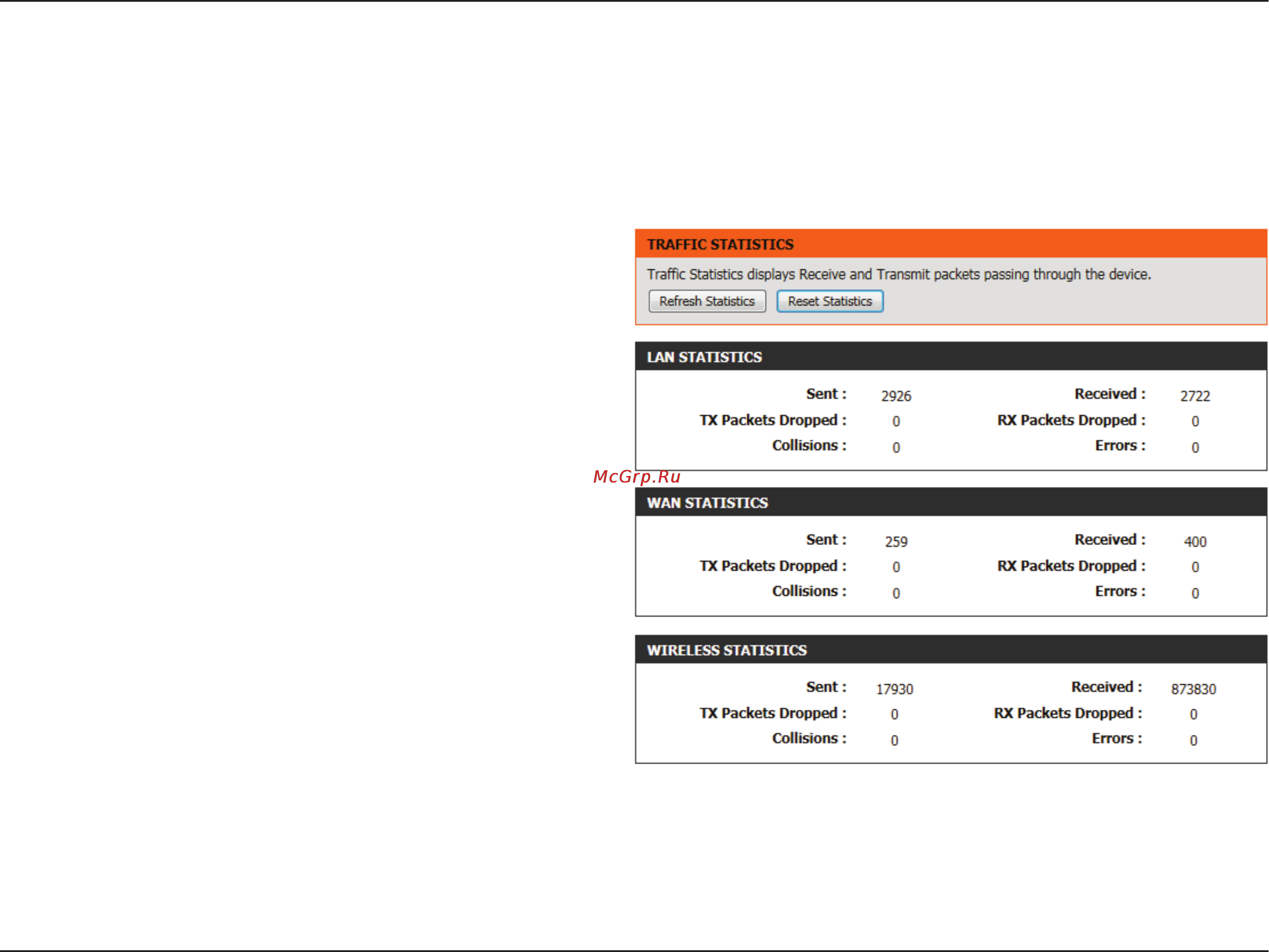

The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the router on both the WAN, LAN ports

and the 802.11n/g (2.4GHz) wireless band. The trac counter will reset if the device is rebooted.
