88D-Link DIR-645 User Manual

Section 3 - Software Conguration

IPv6 Firewall

On this page the user can congure the IPv6 rewall settings. The rewall settings section is an advance feature that is used to allow or deny trac

from passing through the device. It works in the same way as IP Filters with additional settings. You can create more detailed rules for the device.

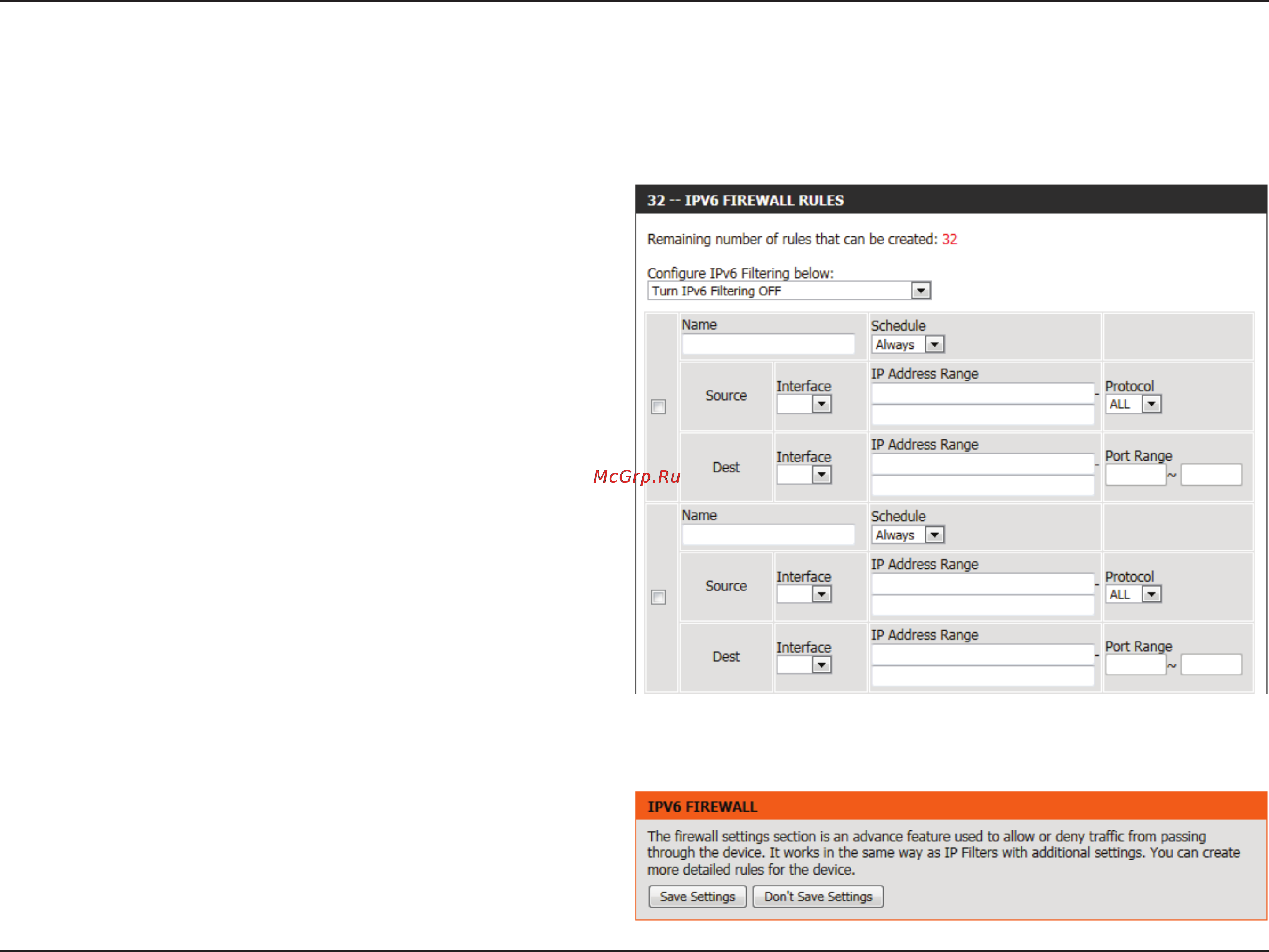

In the IPv6 Firewall Rules section the user can create, enable and disable

IPv6 rewall rules used by this device. The following parameters will be

available for conguration:

Congure IPv6

Filtering:

This option denes the behavior of all the IPv6

rewall rules created. Option to choose from are

‘Turn IPv6 Filtering OFF’, ‘Turn IPv6 Filtering ON

and ALLOW rules listed’, and ‘Turn IPv6 Filtering

ON and DENY rules listed’. Select the appropriate

option used here.

Checkbox Tick this option to used the rewall rules created.

Name: Enter a custom rewall rule name here. This name

is used for identication.

Source Interface: Select the appropriate source interface used here.

Destination

Interface:

Select the appropriate destination interface used

here.

Schedule: Select a time schedule that will be applied to this

rules here.

IP Address

Range:

Enter the IPv6 address range used here.

Protocol: Select the protocol used for this rule here. Options

to choose from are ALL, TCP, UDP, and ICMP.

Port Range: Enter the port range used for this rule here.

Click on the Save Settings button to accept the changes made.

Click on the Don’t Save Settings button to discard the changes made.
