services already in the table. You may use them by enabling them and

assigning the server IP to use that particular virtual service.

Name: The name referencing the virtual service.

Private IP: The server computer in the LAN (Local Area Network) that will be

providing the virtual services.

Protocol Type: The protocol used for the virtual service.

Private Port: The port number of the service used by the Private IP

computer.

Public Port: The port number on the WAN side that will be used to access

the virtual service.

Schedule: The schedule of time when the virtual service will be enabled.

The schedule may be set to Always, which will allow the particular service to

always be enabled. If it is set to Time, select the time frame for the service to

be enabled. If the system time is outside of the scheduled time, the service

will be disabled.

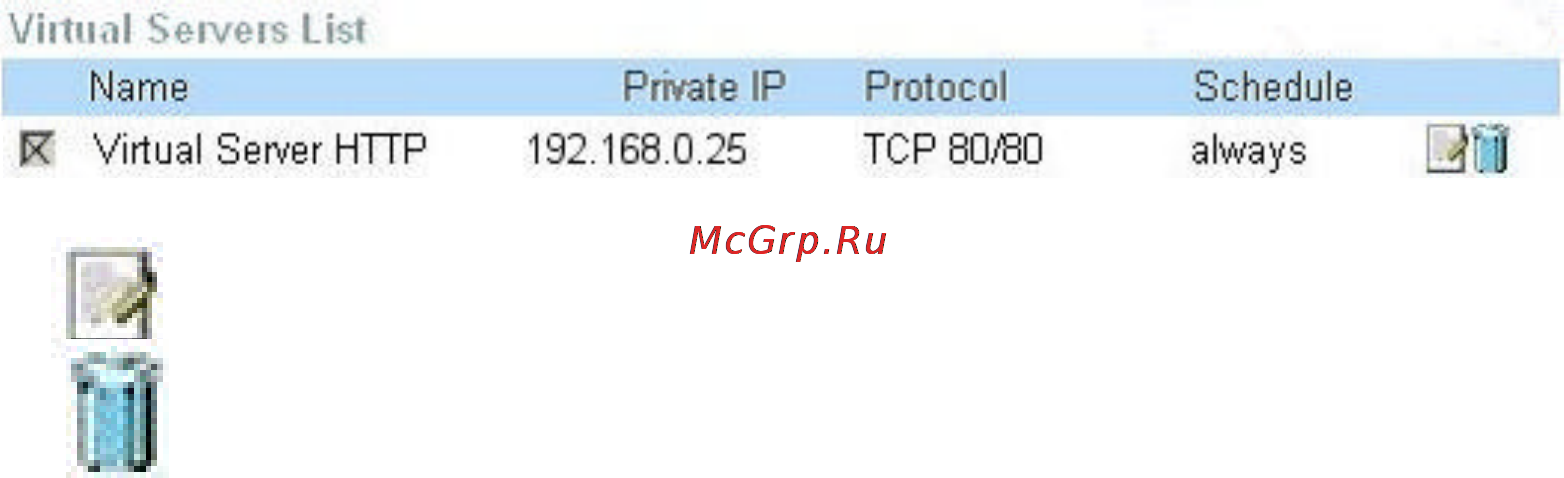

Example #1:

If you have a Web server that you wanted Internet users to access at all times, you

would need to enable it. Web (HTTP) server is on LAN (Local Area Network)

computer 192.168.0.25. HTTP uses port 80, TCP.

Name: Web Server

Private IP: 192.168.0.25

Protocol Type: TCP

Private Port: 80

Public Port: 80

Schedule: always

Click on this icon to edit the virtual service.

Click on this icon to delete the virtual service.

Example #2:

If you have an FTP server that you wanted Internet users to access by WAN port

2100 and only during the weekends, you would need to enable it as such. FTP

server is on LAN computer 192.168.0.30. FTP uses port 21, TCP.

Name: FTP Server
