D-Link DI-514 [21/60] Virtual server

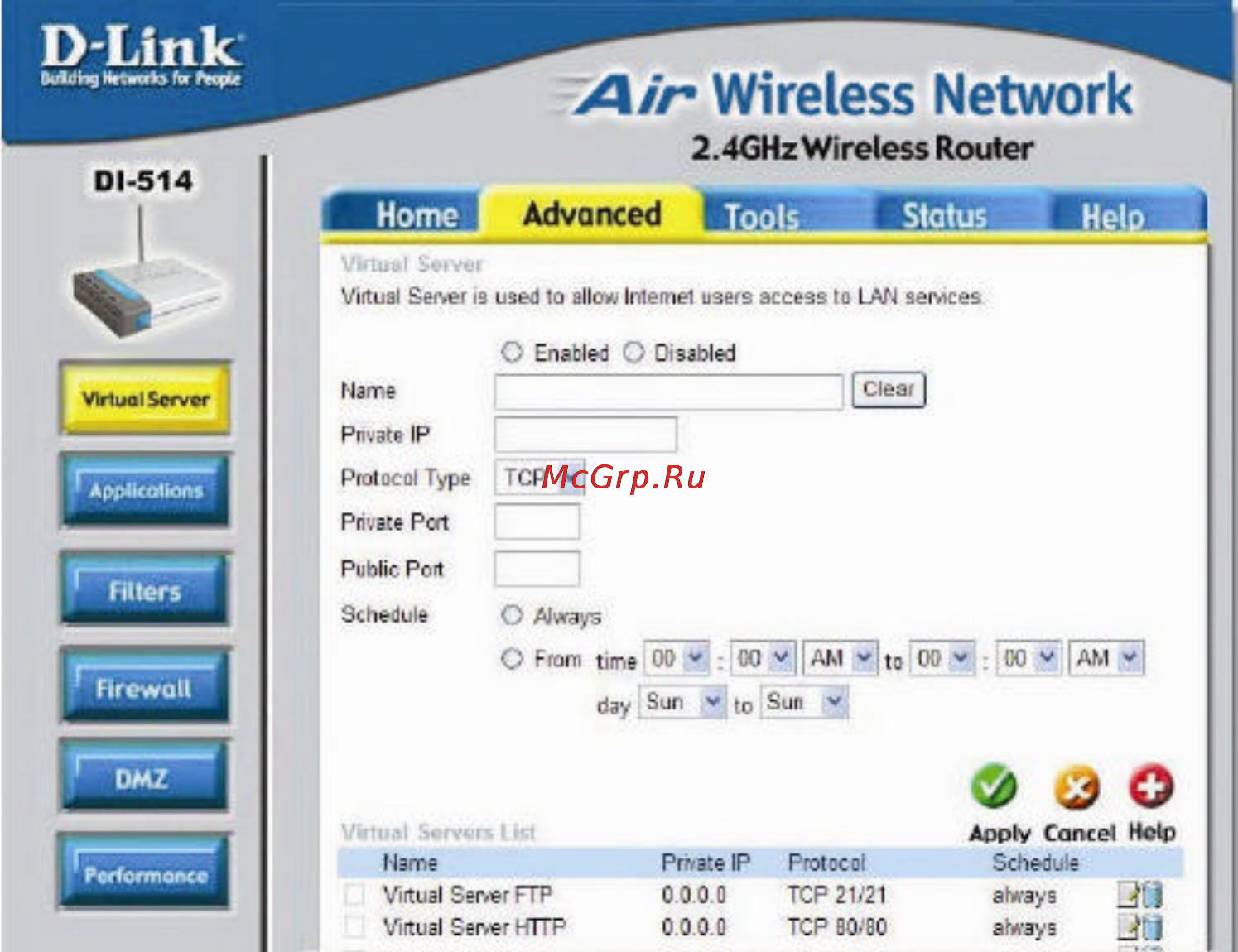

Advanced > Virtual Server

Virtual Server

The DI-514 can be configured as a virtual server so that remote users

accessing Web or FTP services via the public IP address can be

automatically redirected to local servers in the LAN (Local Area Network).

The DI-514 firewall feature filters out unrecognized packets to protect your

LAN network so all computers networked with the DI-514 are invisible to the

outside world. If you wish, you can make some of the LAN computers

accessible from the Internet by enabling Virtual Server. Depending on the

requested service, the DI-514 redirects the external service request to the

appropriate server within the LAN network.

The DI-514 is also capable of port-redirection meaning incoming traffic to a

particular port may be redirected to a different port on the server computer.

Each virtual services that are created will be listed at the bottom of the

screen in the Virtual Servers List. There are already pre-defined virtual
