Port Connectors
The Print Server’s three printer ports are located on its rear panel.
Three identical parallel ports are labeled LPT1, LPT2 and LPT3.
These printer ports are independently configurable using the PS Admin
program or the print server’s telnet interface. (See the PS Admin
User’s Guide for information about configuring the print server’s )
The print server also supports web configuration permitting users to
configure settings through the web browser. DP-313 default IP
address as follows:
Default IP address 192.168.0.1
Subnet Mask 255.255.255.0
Note:-
The PC’s IP address must correspond with the print server’s IP
address in the same segment for the two devices to communicate.

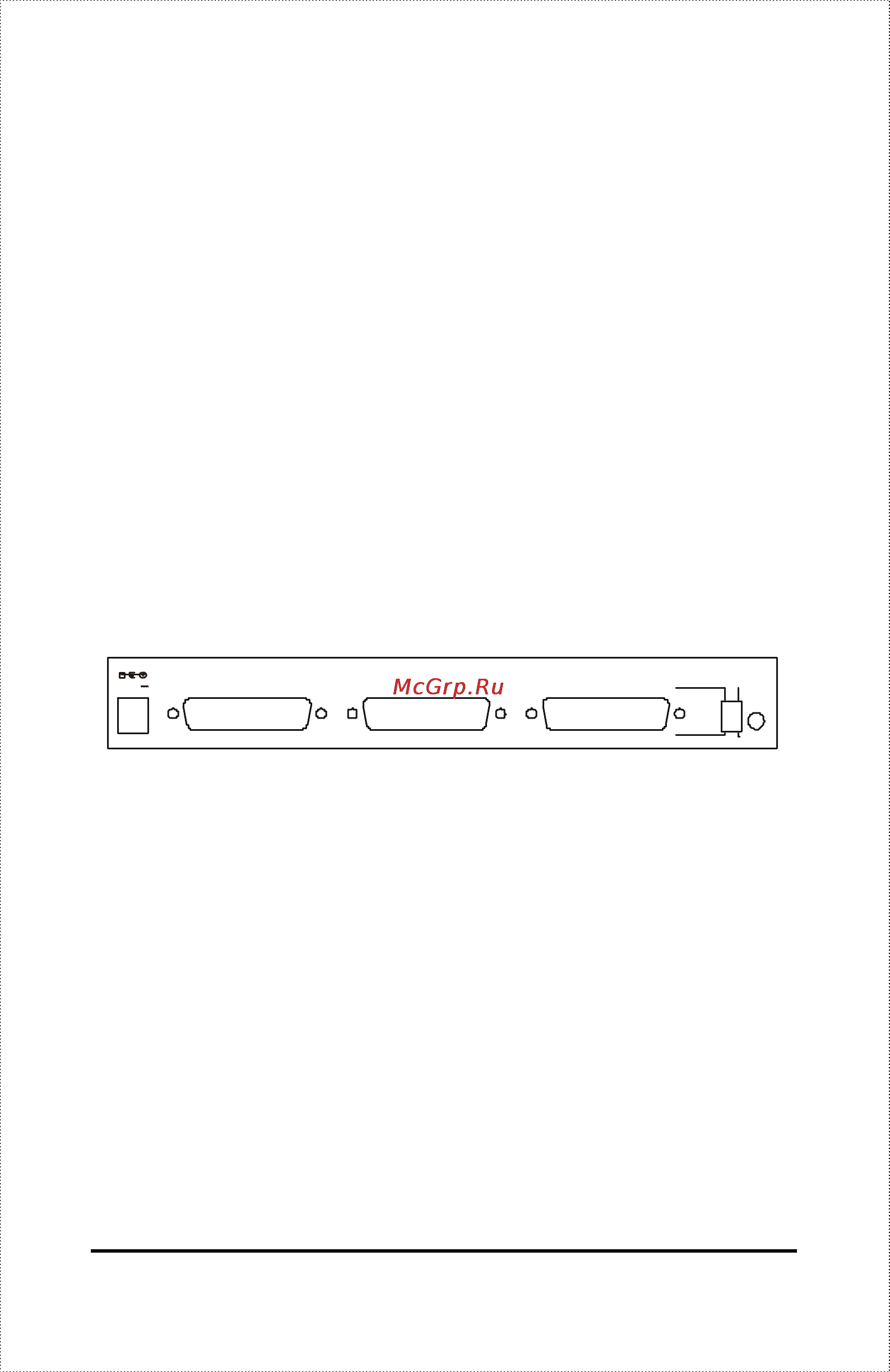

Rear Panel
Wireless DIP Switch
The Print Server’s rear panel features a DIP switch allowing two
different modes of ad-hoc and infrastructure. In ad-hoc mode there
are 2 types of settings, 802.11 ad-hoc mode and Proprietary ad-hoc
mode where there is direct communication between PC/Notebook and
print server.
Under infrastructure mode there are 2 types of settings, Cfg ESS-ID
mode and Any ESS-ID mode where communication between
PC/Notebook and print server is through the Access Point acting as a
bridge between wired and wireless network.
LPT3 LPT2 LPT1
Reset
802.11 Ad hoc
Any ESS-ID Infra
DC 5V 2.4A
Cfg ESS-ID
ProPrietary
