Using the Configuration Utility
To configure the DSA-3100, use a computer which is connected to the local network
port of the DSA-3100 with an Ethernet cable.
First, disable the Access the Internet using a proxy server function. To
disable this function, go to Control Panel > Internet Options > Connections
> LAN Settings and uncheck the enable box.
Start your Microsoft Internet Explorer Web browser program.
Type https://192.168.0.40, which is the default IP address of the DSA-3100, in
the address field and press Enter. Make sure that the IP addresses of the
DSA-3100 and your computer are in the same subnet.
https://192.168.0.40
manager - access to the manager
user account only.
User Name: manager
Password: manager
After you log in, click Enter.
User Name: admin
You can log in as admin or as
manager.
admin - the administrator of the
DSA-3100.
Password: admin

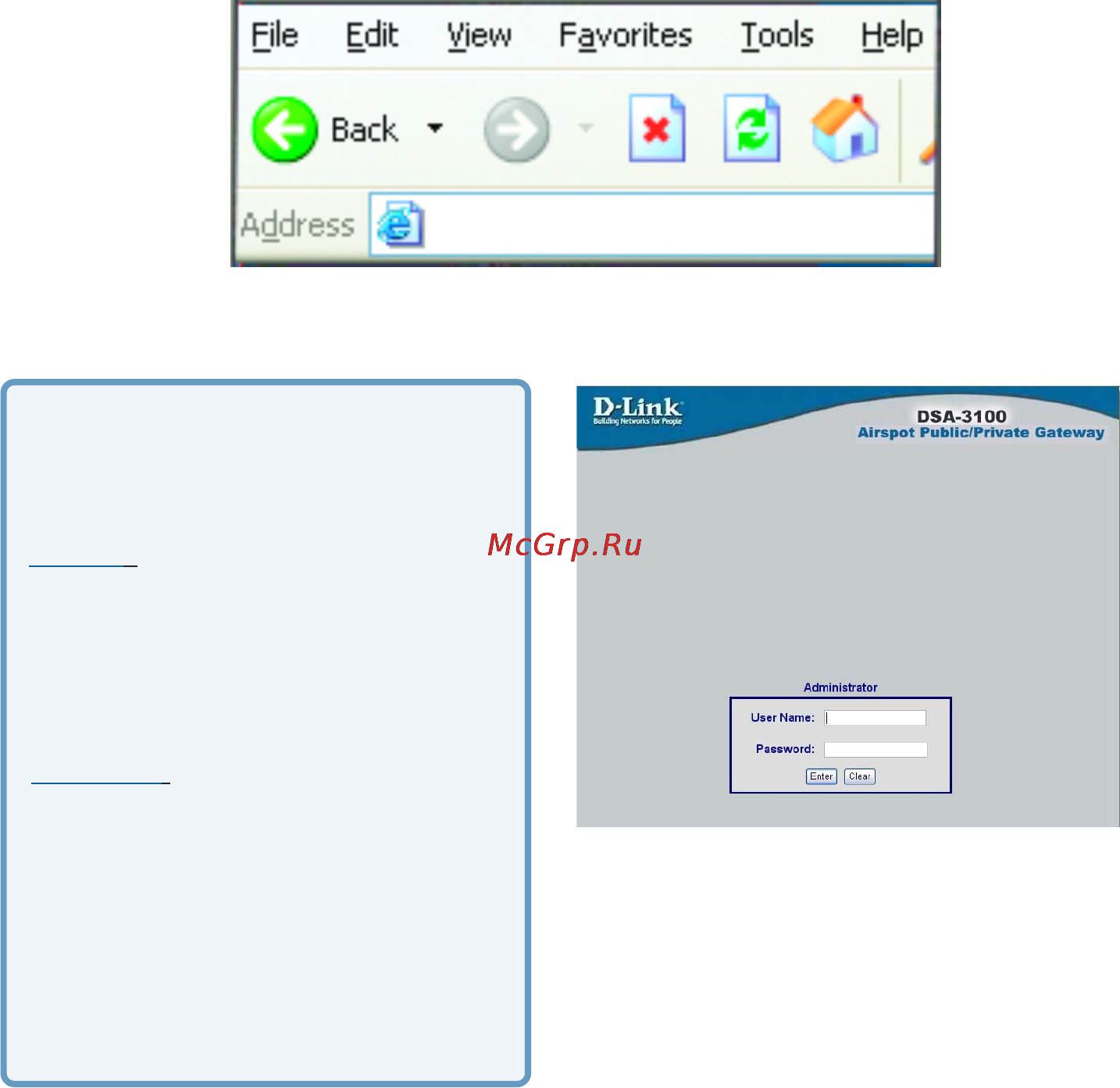

Log-in Screen
Login Screen
