Networking Basics (continued)
Assigning a Static IP Address in Windows XP/2000 (continued)

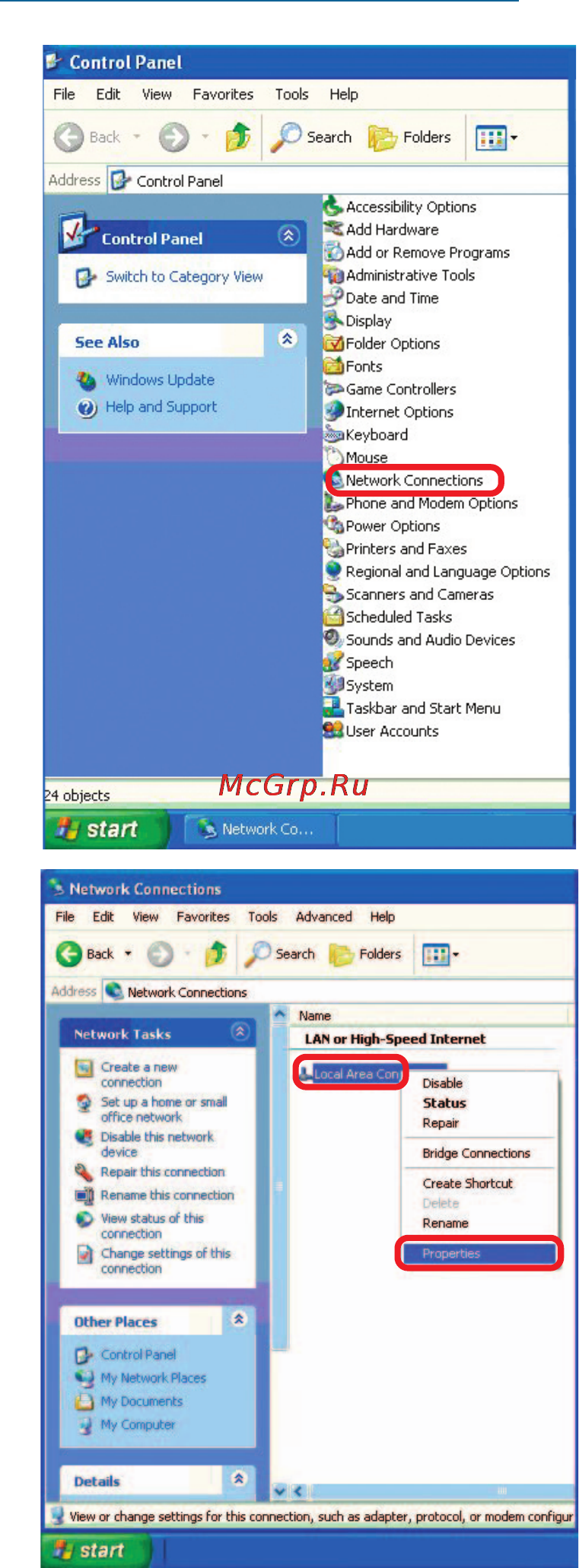

Double-click on
Network
Connections
Click on Properties
Right-click on Local Area
Connections
