Using the Configuration Utility (continued)
Tools > Upload
Error Page

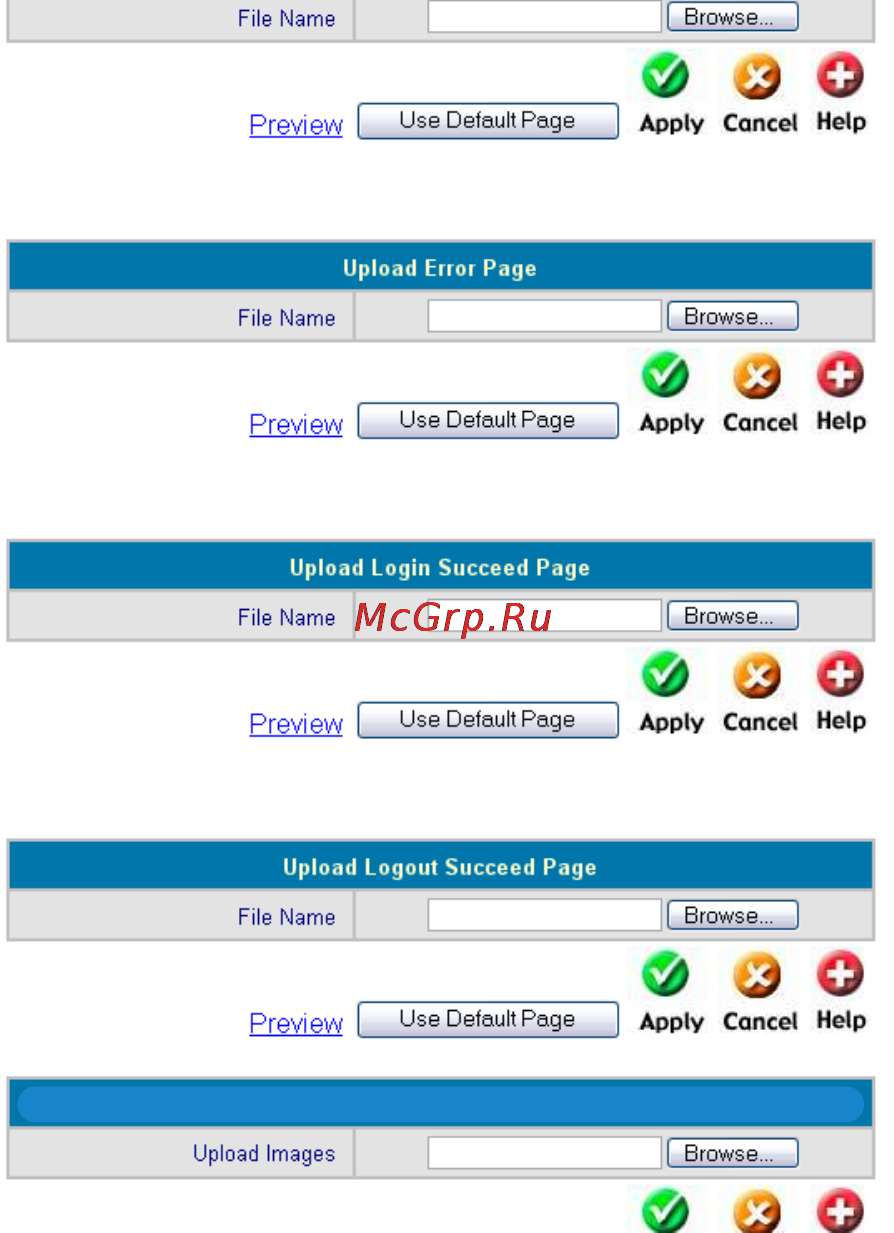

Upload Error Page: To provide a
custom error page, please specify
the file name to upload it onto the
DSA-3100. If you want to get back
to the default user login page, sim-
ply click the Use Default Page
button. If you want to display the
Error Page, simply click the Pre-
view button.
Upload Login Succeed Page: To
provide a custom user “login ok”
page, please specify the file name
to upload it onto the DSA-3100. If
you want to get back to the default
user login page, simply click the
Use Default Page button. If you
want to display the Login Succeed
Page, simply click the Preview
button.
Tools > Upload Login
Succeed Page
Tools > Upload Logout Succeed Page
Upload Logout Succeed Page: To provide a custom user logout page, please specify
the file name to upload it onto the DSA-3100. If you want to get back to the default
user logout page, simply click the Use Default Page button. If you want to display the
Logout Succeed Page, simply click the Preview button.
Tools > Upload
Tools > Upload Image Files
Upload Image Files
If the user-defined logon interface includes a graphic file, the HTML code of the graphic
file path must be the upload graphic file. Enter the path and file name of the graphic
file or browse to select the file. The maximum size of the graphic file is 512K.
Path of Graphic File in User Logon Interface
<img src=”images/xx.jpg”>
After the graphic file is uploaded, the Existing Image Files section will list the graphic
files uploaded to the system. You can select or delete any graphic file, and the system
will list the size of the graphic file.
